Properties

MIG/MAG: Gas metal arc welding in which shielding gas/mixed gas is used to protect the seam from oxidation. Flux-cored wire/FLUX: Flux-cored wire welding is possible with all MIG ST IGBT devices.

Technical data

Output current MIG/MAG / MMA: 40 - 135 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15 %)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) MIG/MAG / MMA: 20.9 A / 25.6 A
Maximum effective mains current (I1eff) MIG/MAG / MMA: 6.6 A / 8.1 A
Weight: 11.6 kg
Dimensions L x W x H (mm): 450 x 240 x 370
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

Scope of delivery

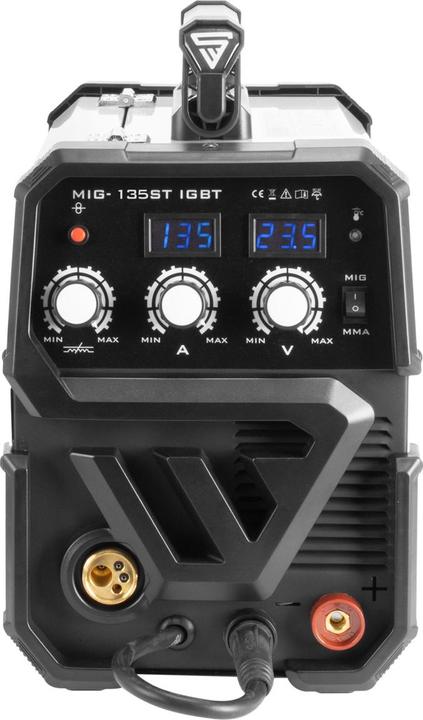

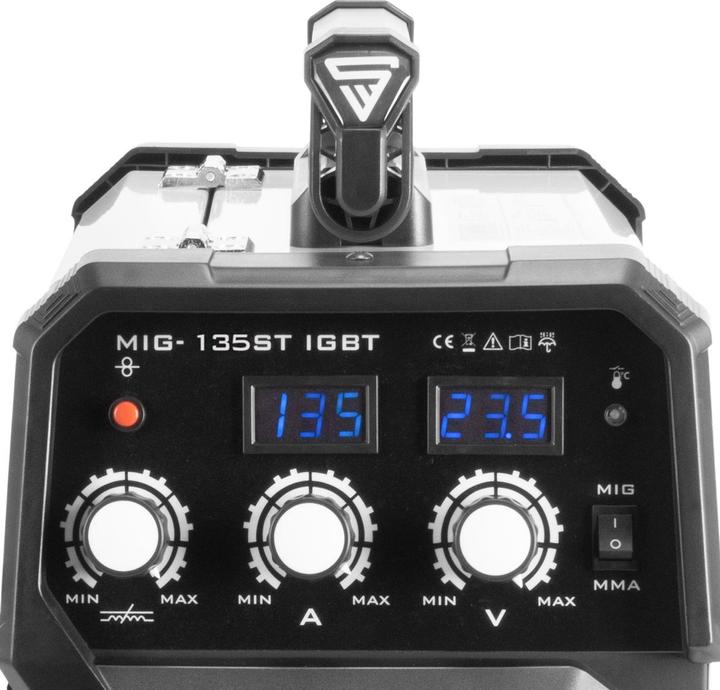

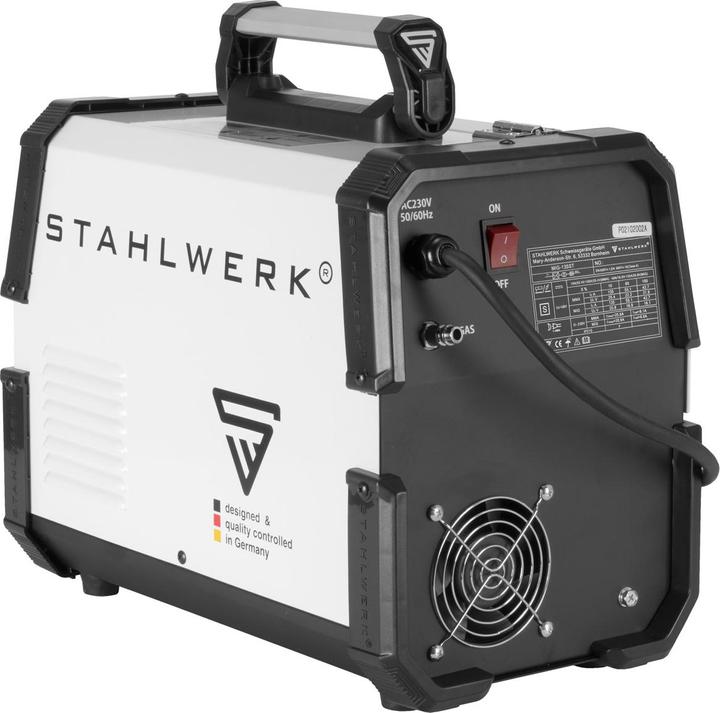

1 x STAHLWERK MIG 135 ST IGBT welding machine
1 x Professional MIG welding torch AK-15 / 3 metre hose package with Euro central connection
1 x 3-piece MIG accessory set (this is already pre-assembled on the torch):
1 x gas nozzle
1 x contact tip 0.8 mm
1 x gas nozzle holder
1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x wire guide roll 0.8 mm & 1.0 mm (already installed in the device)
1 x wire guide roll 0.6 mm & 0.8 mm & 1 x wire guide roll 0.8 mm & 1.0 mm
1 x contact tip 0.8 mm
1 x contact tip 1.0 mm
1 x gas connection hose with quick coupling 5 metres
1 x assembly spanner
1 x protective cover
1 x MIG MAG 15AK wear parts set 28 pieces
1 x mini pressure reducer for argon / CO2 / mixed gas / shielding gas up to 200 bar
1 x MIG MAG welding wire ER70S-6 SG2 ø 0.8 mm S200/D200 wire reel 5 kg
1 x STAHLWERK fully automatic welding helmet ST-900X black matt.
