Properties

DC arc welding (MMA/E-hand). MMA/electrode manual welding is a universal welding process as it can be used under almost all conditions. Various electrodes with different polarities can be connected for MMA/electrode manual welding.
DC TIG arc welding (DC TIG). TIG arc welding with direct current. The polarity of the tungsten electrode is either positive or negative during the entire welding process.

Technical data

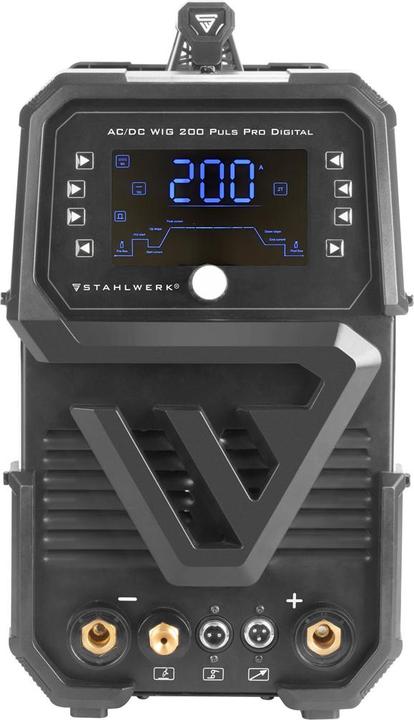

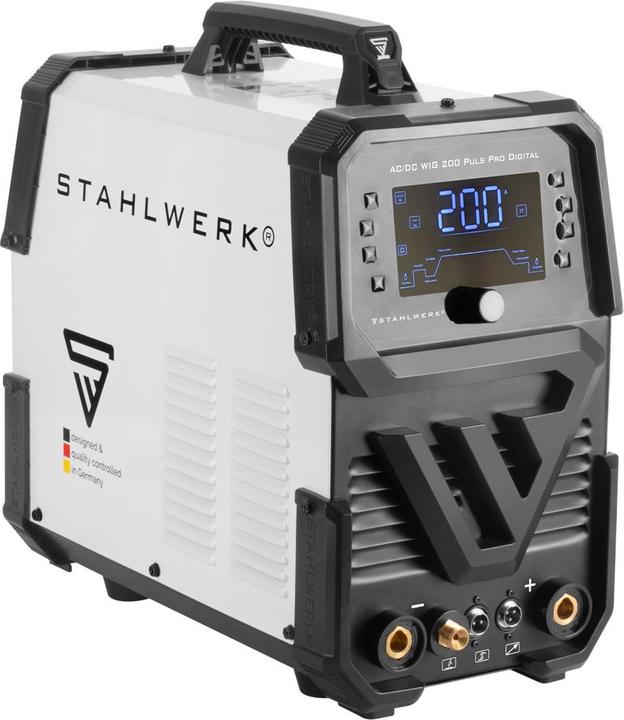

Model: Welding machine AC/DC TIG 200 Pulse Pro
Output current (TIG / MMA): 5 - 200 A / 30 - 160 A
TIG duty cycle (40°C): 25% at 200 A / 60% at 150 A / 100% at 120 A
MMA duty cycle (40°C): 25% at 160 A / 60% at 110 A / 100% at 90 A
Duty cycle TIG AC (40°C): 25% at 200 A / 60% at 150 A / 100% at 120 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50 Hz
Open circuit voltage (TIG DC and MMA / TIG AC): 68 V / 48 V
Maximum mains current (I1max) | (TIG / MMA): 28 A
Maximum effective mains current (I1eff) | (TIG / MMA): 15.6 A
Weight: 17.5 kg
Dimensions L x W x H (mm): 450 x 245 x 430
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TÜV Rheinland

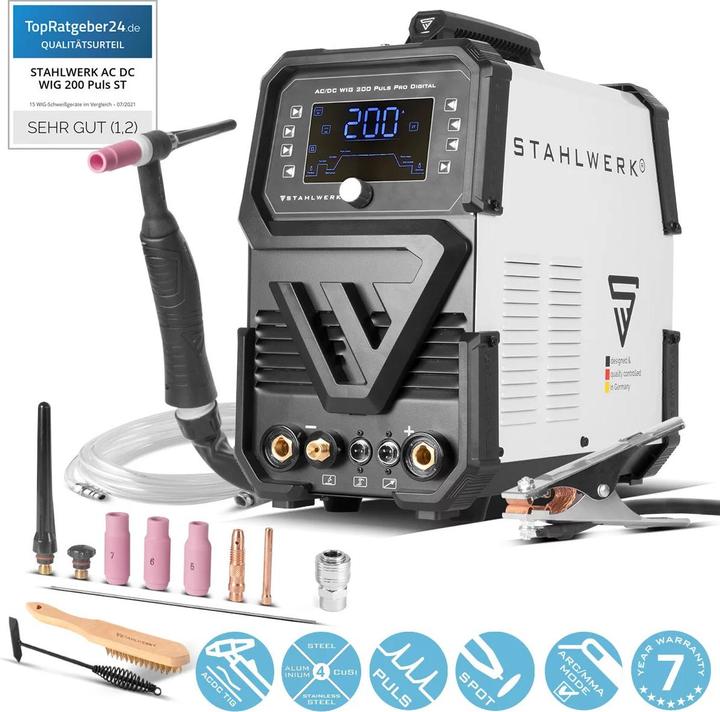

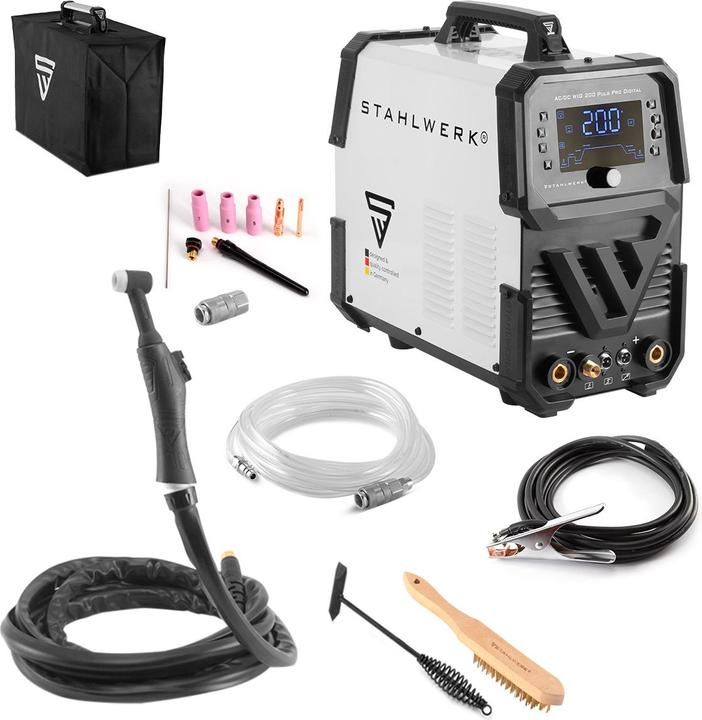

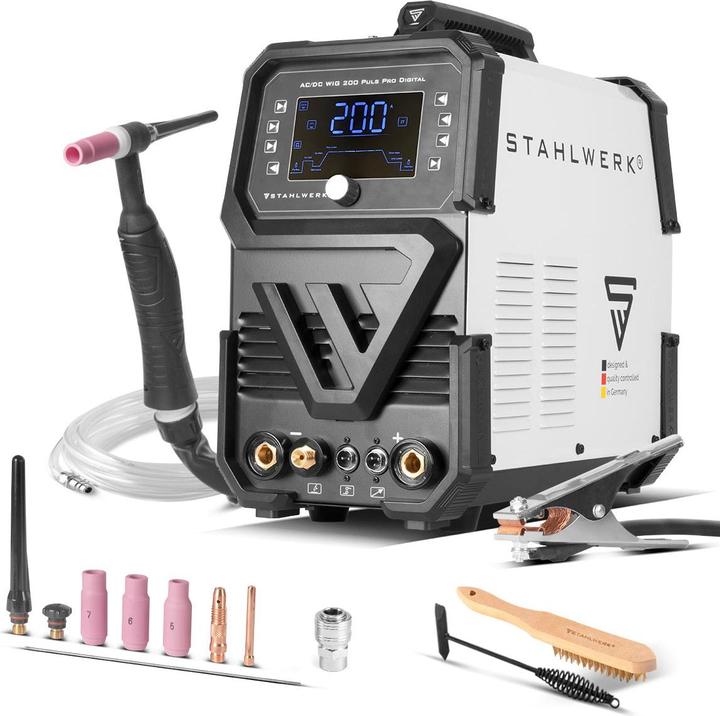

Scope of delivery

1 x Steelworks AC/DC TIG 200 Pulse Pro Digital welding machine
1 x Professional TIG welding torch "WP-26 FR" / 3 metre hose package with remote control. Flexible torch head and kink protection on the gas connection. (incl. TIG accessories starter set)
1 x gas connection hose with quick coupling 5 m
1 x earth clamp 3 m cable with 13 mm mandrel plug
1 x quick coupling gas pressure reducer incl. O-seal
1 x slag hammer
1 x wire brush
1 x protective cover
