Technical data

Output current MIG / MIG pulse / MMA: 50 - 200 A (MIG) / 30 - 170 A (MIG pulse) / 20 - 180 A (MMA)
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+- 15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 38 A
Maximum effective mains current (I1eff): 14,7 A
Open circuit voltage (U0): 62 V
Weight: 17.25 kg
Dimensions L x W x H (mm): 590 x 240 x 430
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: TüV SüD Product Service GmbH

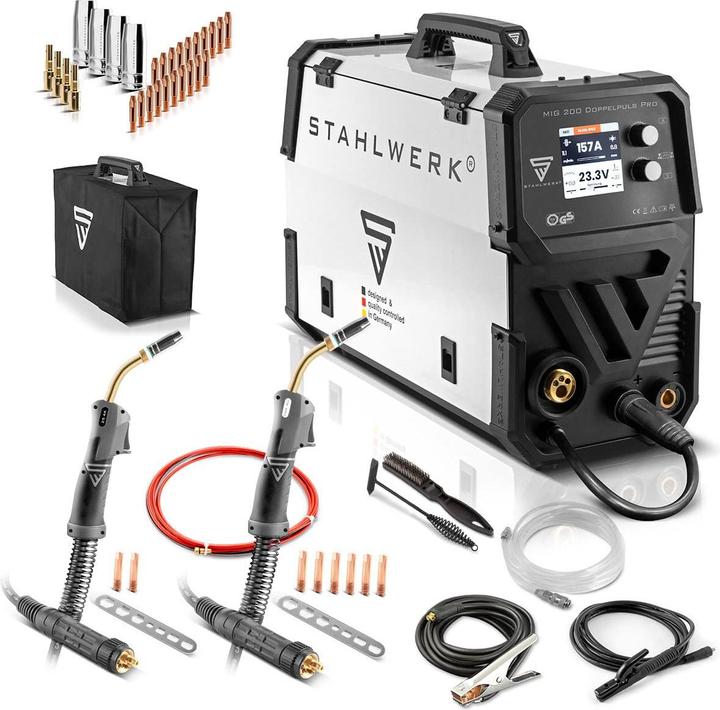

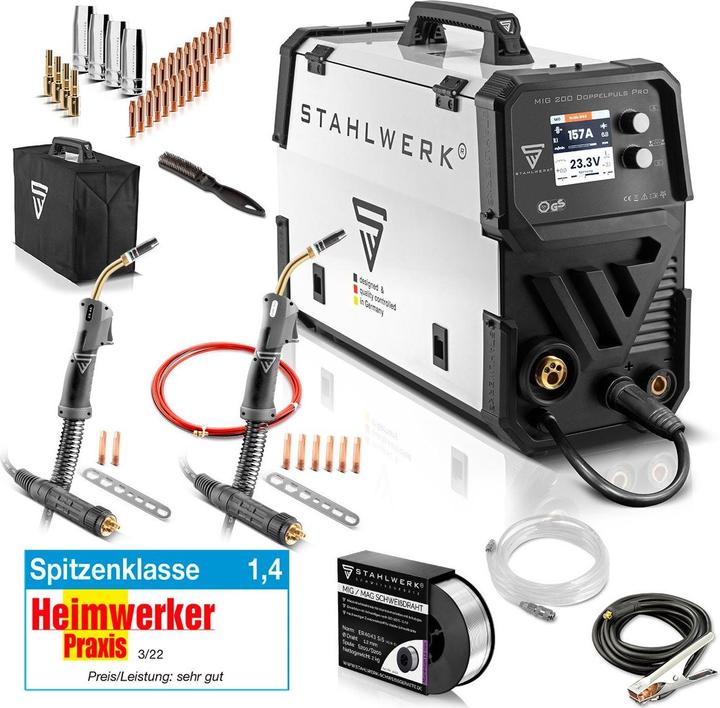

Scope of delivery

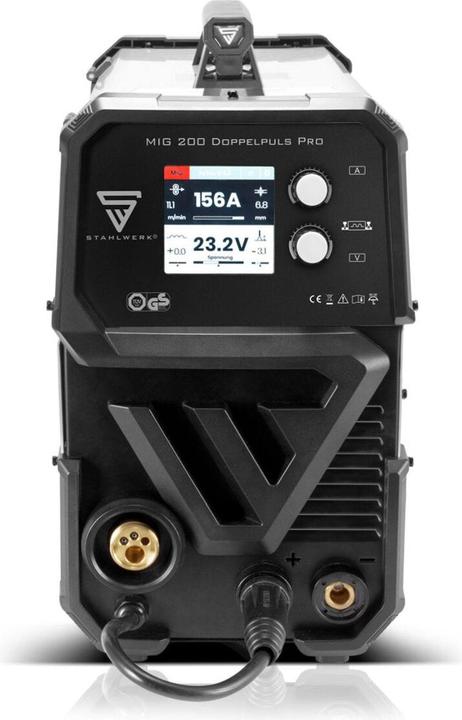

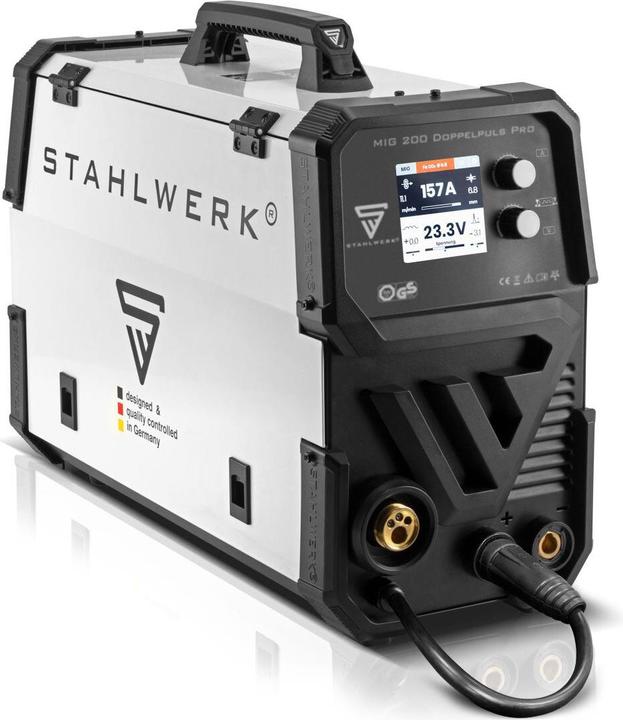

1 x steelwork MIG 200 double pulse Pro

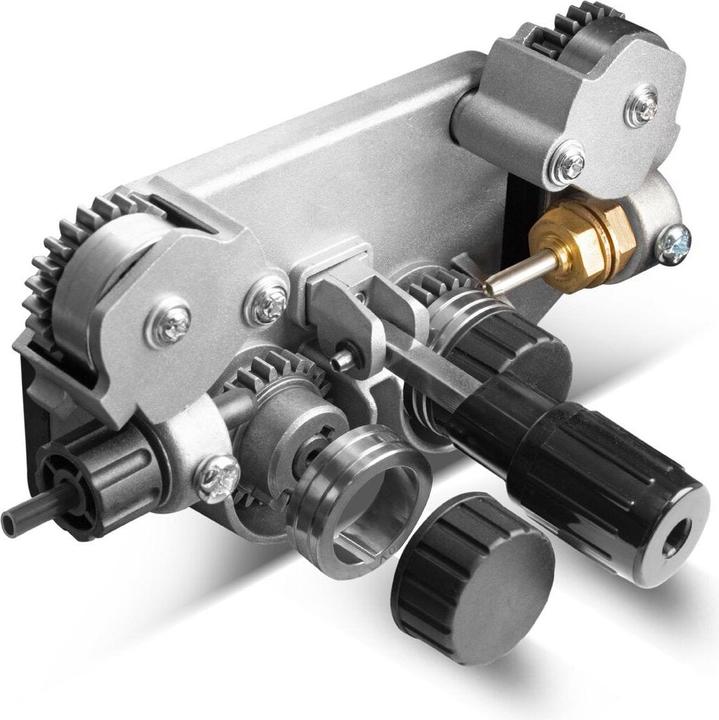

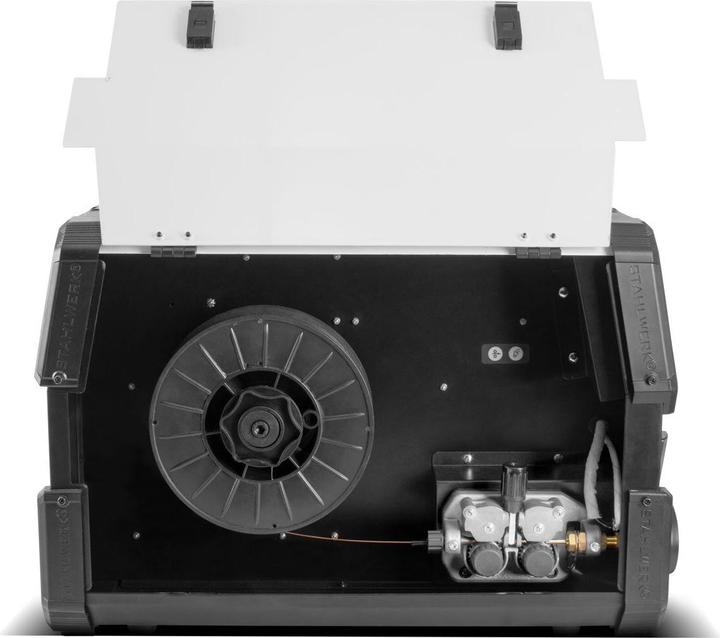

2 x V-type wire feed roll 0.8 - 1.0 mm - installed. (for steel)
2 x U-type wire feed roll 1.0 - 1.2 mm - separately incl. (for aluminium)
1 x wire brush
1 x protective cover
1 x Gas connection hose with quick coupling 3 metres
1 x earth cable 3 metres (25 mm² with 13 mm mandrel)
1 x AK-25 professional MIG welding torch / 3 metre hose package with Euro central connection.
1 x Professional MIG MAG welding torch AK25/MB25 for aluminium, 3 metres with Euro central connection.

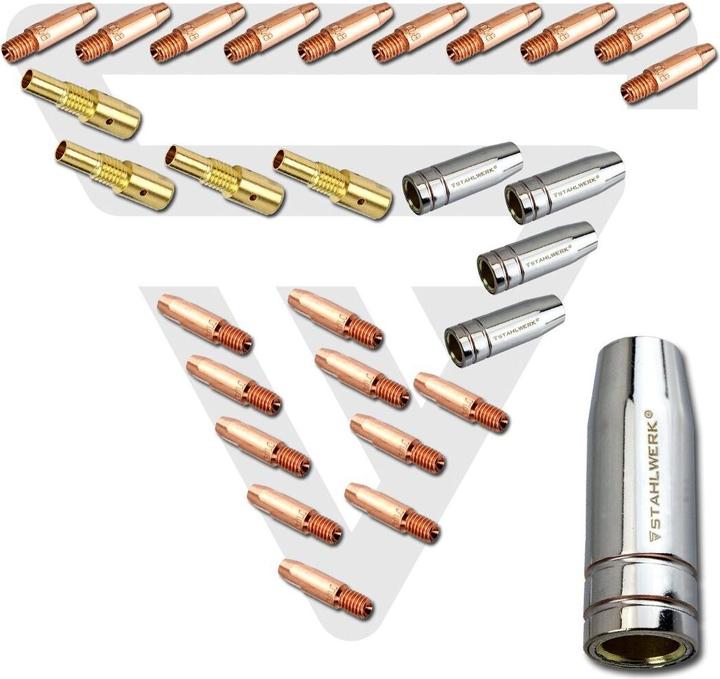

1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch): - 1 x gas nozzle, 1 x contact tip 0.8 mm, 1 x gas nozzle holder
3 x contact tips M6 x 28 - ø 0.8 mm for steel
3 x contact tips M6 x 28 - ø 1.0 mm for steel
1 x contact tip M6 x 28 - ø 1.0 mm for aluminium
1 x contact tip M6 x 28 - ø 1.2 mm for aluminium
1 x steel core
1 x assembly spanner
1 x MIG MAG aluminium wear parts set for AK25/MB25
1 x MIG MAG premium aluminium welding wire ER4043 Si5 1.0 mm S200/D200 2 kg
