Technical data

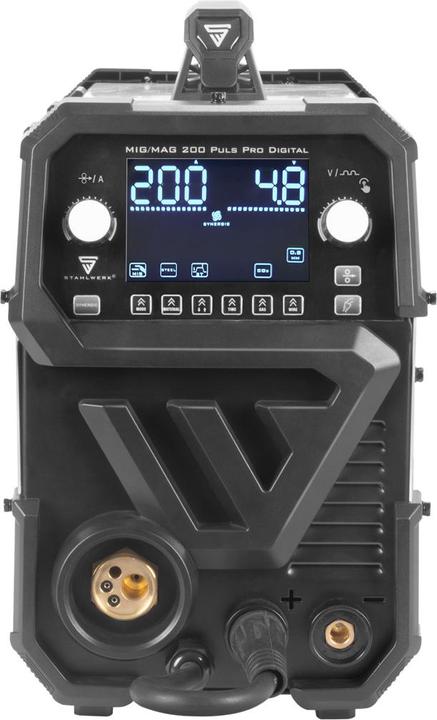

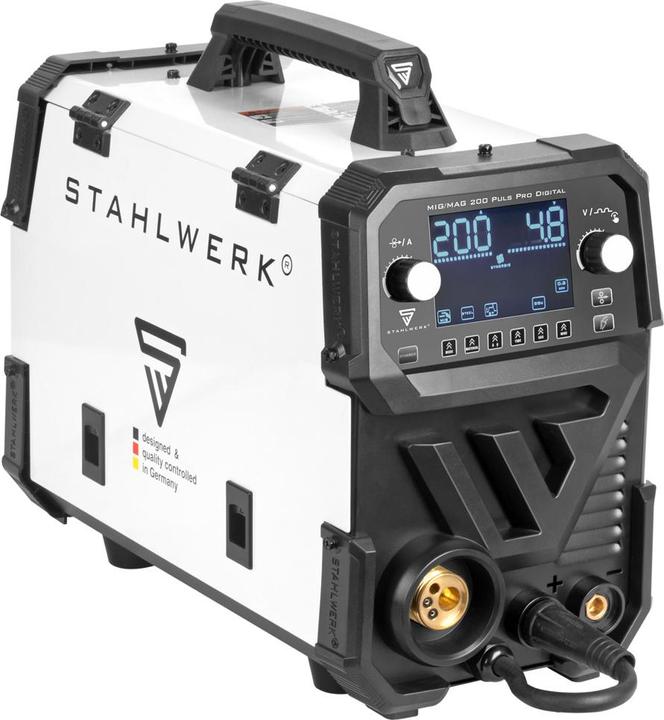

Model: Steelworks MIG MAG 200 Spot Pulse Pro Digital
Output current MIG / Lift-TIG / MMA: 20 - 200 A
Duty cycle (40°C) MIG / Lift-TIG / MMA: 15% at 200 A / 100% at 77.5 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) MIG / LIFT-TIG / MMA: 32 A / 25 A / 38 A
Maximum effective mains current (I1eff) MIG / LIFT-TIG / MMA: 12.4 A / 9.7 A / 14.7 A
Weight: 10.6 kg
Dimensions L x W x H (mm): 460 x 210 x 350
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co, Ltd

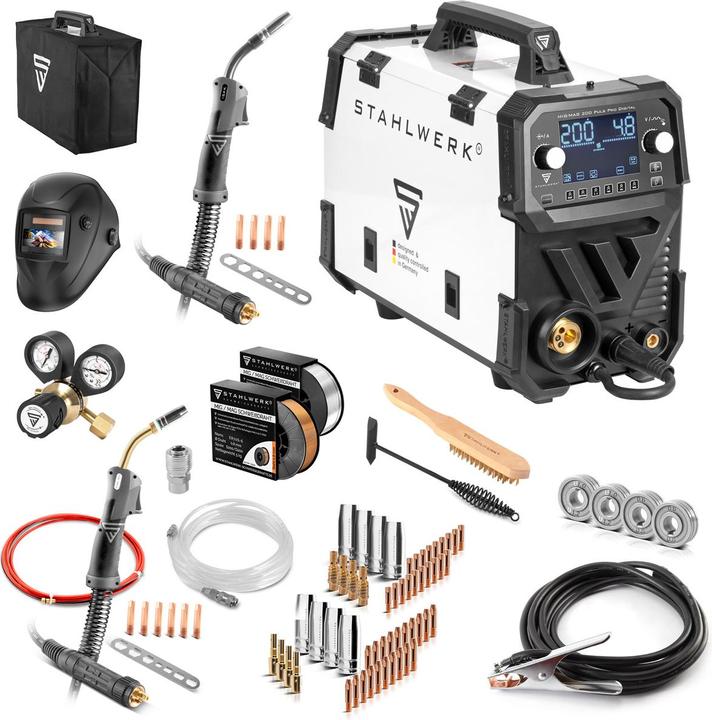

Scope of delivery

1 x Steelworks MIG/MAG 200 Puls Pro Digital
1 x AK-15 professional MIG welding torch / 3 metre hose package with Euro central connection
1 x MIG MAG welding torch AK25/MB25 for aluminium with 3 metre hose package and carbon core as well as Euro central connection
1 x MIG MAG wear parts set aluminium for AK25/MB25 welding torch 28 pieces
1 x AK15/MB15 wear parts set 28 pieces
1 x MIG MAG aluminium welding wire reel
1 x welding wire MIG/MAG steel Ø 0.8 mm ER70S-6 SG2 wire spool 5 kg
2 x wire guide rolls U-shape 1.0/1.2 mm
2 x wire guide rolls V-shape 0.6/0.8 mm
2 x wire guide rollers 0.8/1.0 mm (pre-assembled)
1 x steel core
1 x Gas connection hose with quick coupling 5 m
1 x quick coupling gas pressure reducer incl. O-seal
1 x contact tip 0.6/0.8/1.0 mm each
1 x contact tip AL 1.0 mm
1 x earth cable 3 m
1 x slag hammer
1 x assembly spanner
1 x wire brush
1 x protective cover
1 x pressure reducer
1 x Professional welding helmet
