Stamos Combined Welder - Digital - TIG - MIG/MAG - MMA - 200 A

Price in EUR including VAT, free shipping
Ratings
Delivered between Thu, 12.6. and Mon, 16.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

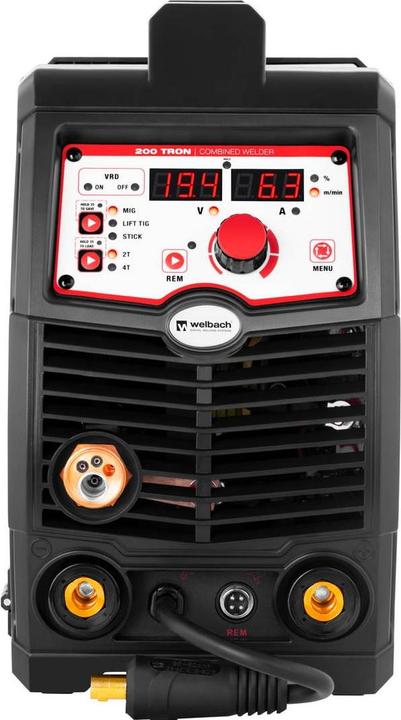

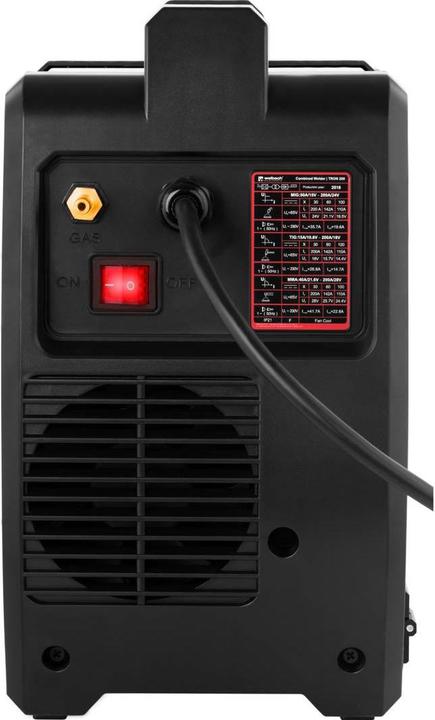

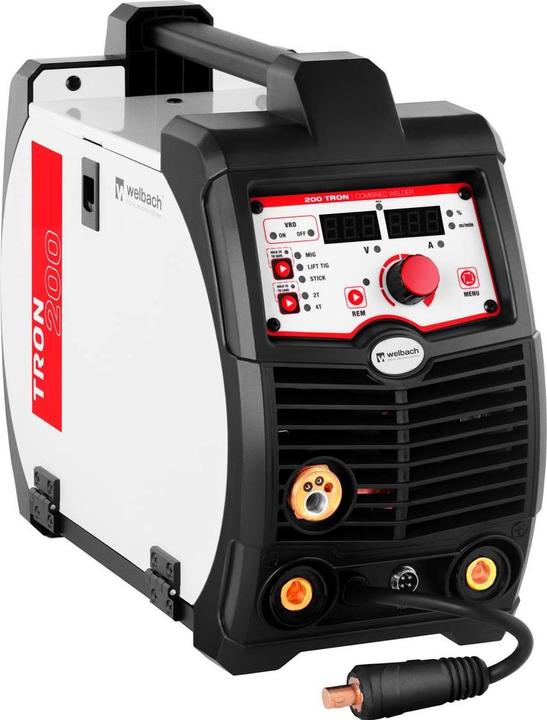

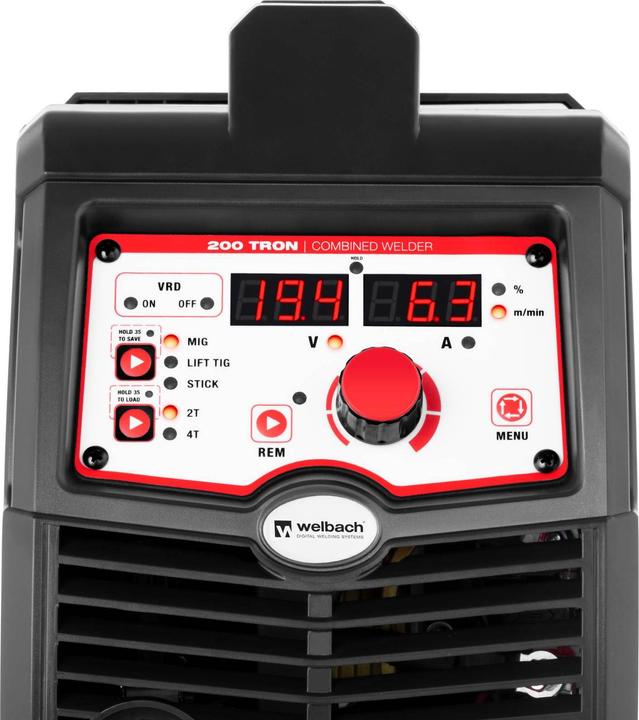

What do you want to weld today: thin sheets or robust steel beams? With or without gas? On construction or in the workshop? Choose the right welding process for every metal work with the digital combination welding machine TRON 200. With MIG/MAG, TIG, MMA, or FCAW welding, you can join metals together efficiently and safely. You choose the method and quickly switch between the methods thanks to the powerful IGBT inverter. The result: almost flawless, high-quality weld seams!.

Key specifications

Voltage
230 V
Max. Welding current
200 A
Item number
34255519

General information

Manufacturer
Stamos
Category
Welding machines
Manufacturer no.
TRON 200
Release date
17.5.2023

Colour

Colour
Black
Exact colour description
Black

Welding device properties

Max. Welding current
200 A

Power supply

Power source
230 V
Voltage
230 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
0.22 m
Width
0.45 m
Height
0.38 m
Weight
19.20 kg

Ingredients and instructions for use

Ingredients
Digital ease of use combines precision and quality With the Prolox 40 plasma cutter from Welbach, you can benefit from digital precision combined with high-quality components that ensure optimum results when cutting metal.Technical detailsFunctions: MIG/MAG/WI/MMA/FCAWVoltage/frequency: 230 V/ 50 HzInput current max.: 33.9 A (MIG)Rated input power: 7.5 kVA (MIG)Input power max.7.8 kVA (MIG)Open circuit voltage: 69 VOpen circuit voltage with VRD: 23.7 VMIG Welding voltage: 15 - 24 VWelding current: 15 - 200 A (TIG-DC), 50 - 200 A (MIG), 40 - 200 A (MMA)Duty cycle (ED): 30 %Welding current at 100 % duty cycle: 110 A (MIG,TIG,MMA)Welding current at 60 % duty cycle: 142 A (MIG,TIG,MMA)Electrode diameter (TIG): 1 - 2.4 mmElectrode diameter (MMA): 1.6 - 4 mmIgnition (TIG): LiftarcWelding thickness MMA: 1.5 -10 mmWelding thickness TIG: 1 - 5 mmWelding thickness MIG: Up to 5 mmPower factor: 0.73Efficiency (under rated power): 0.80 %Arc-Force: YesAnti-stick: YesSwitch for 2-/4-cycle: YesSwitch Spool Gun (REM): YesAppliance cooling: Power fanTorch cooling: GasInsulation class: FProtection class: IP21Power cable 1.9 mScope of deliveryTRON 200 combi welding machine, TIG hosepack 3.8 m, MIG hosepack 3 m, MMA welding cable with electrode holder 3 m, earthing cable with clamp 3 m, 3 clamping sleeves(1.6/2.0/2.4 mm), clamping sleeve housing, 3 ceramic gas nozzles (4, 5, 6 mm), TIG electrode Ø 2 mm, MIG gas nozzle, MIG contact tip Ø 0.8 mm, long torch cap, short torch cap, user manual.

14-day cancellation right
30-day right of return
24 Months statutory warranty
