Stamos TIG Welder - 10 - 200A - 230V

Ratings
Currently out of stock

Product details

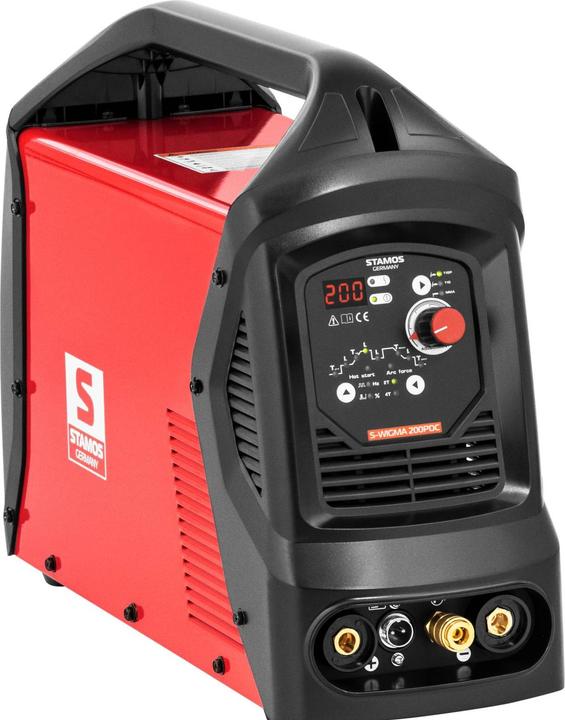

TIG welder - 200 A - pulse - digital - 230 V

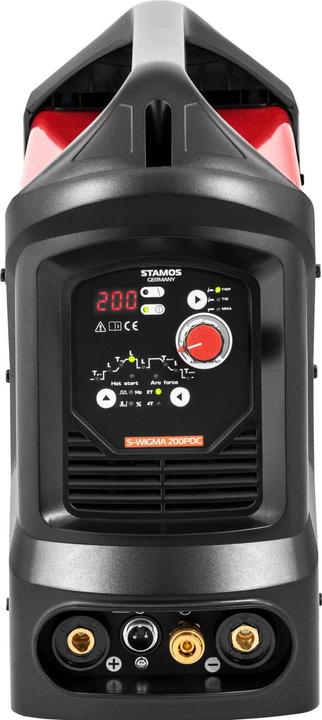

The S-WIGMA 200PDC by Stamos Germany is perfect for professionals and beginners alike for use in workshops, home workshops, or on the construction site. MMA welding integrated in the device offers further options, delivering optimal results with Arc Force and Hot Start. Selecting the parameters is particularly comfortable, thanks to the clearly arranged digital control panel. The knob and buttons for selecting functions and welding parameters are easily accessible and a breeze to use even when wearing welding gloves.

Technical Details:
Model: S-WIGMA 200PDC
Voltage: 230 V
MMA welding current: 10-175 A
Electrode diameter MMA: 1.6-4.0 mm
TIG ignition: HF
TIG DC welding current: 10-200 A
Pulse width: 10-90%
Gas pre-flow: 0-5 s
Up slope time: 0-10 s
Down slope time: 0-10 s
Efficiency: 73%
TIG cable: 5 m
Housing material: Carbon steel
Power cord: 2.7 m
Burner cooling: Gas
Cooling: Fan
Insulation class: H
IP protection class: IP21
Max. input current: MMA: 40 A, TIG: 35 A
Max. input power: MMA: 10 kVA, TIG: 10 kVA
Rated input current: MMA: 20 A, TIG: 15 A
Welding current at 100% duty cycle: MMA: 90 A, TIG: 100 A
Open circuit voltage: 65 V
Power factor: 0.61
Norm compliance: EN60974-1
Pulse frequency (DC-Mode): 0.2 - 200 Hz
Electrode diameter (TIG): 2.4 mm
Gas after-flow: 0-10 s
Ground cable: 3 m
Duty cycle for 40 °C: TIG: 25, MMA: 25
Weldable thickness MMA: 6 mm
Weldable thickness TIG: 6 mm
Pulse current: 10-200 A
Weldable thickness: 6 mm

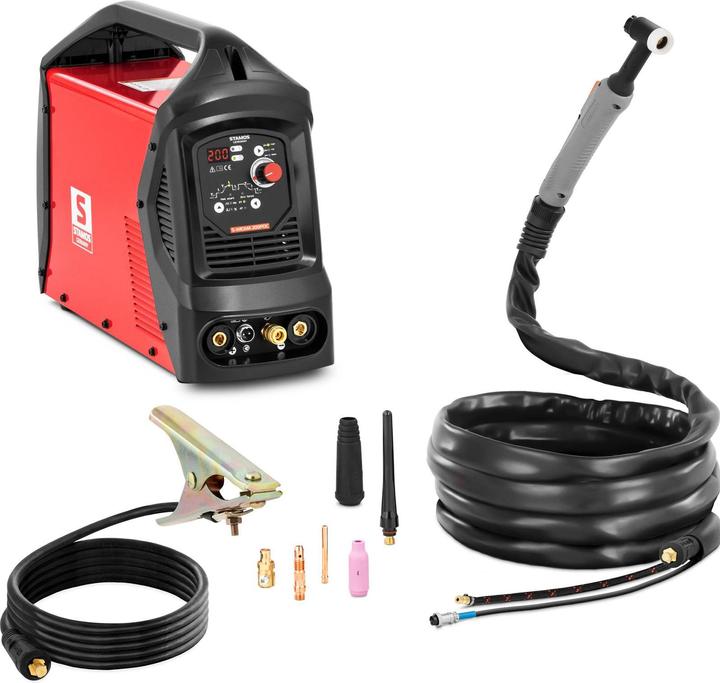

Delivery Contents:
TIG welder S-WIGMA 200PDC

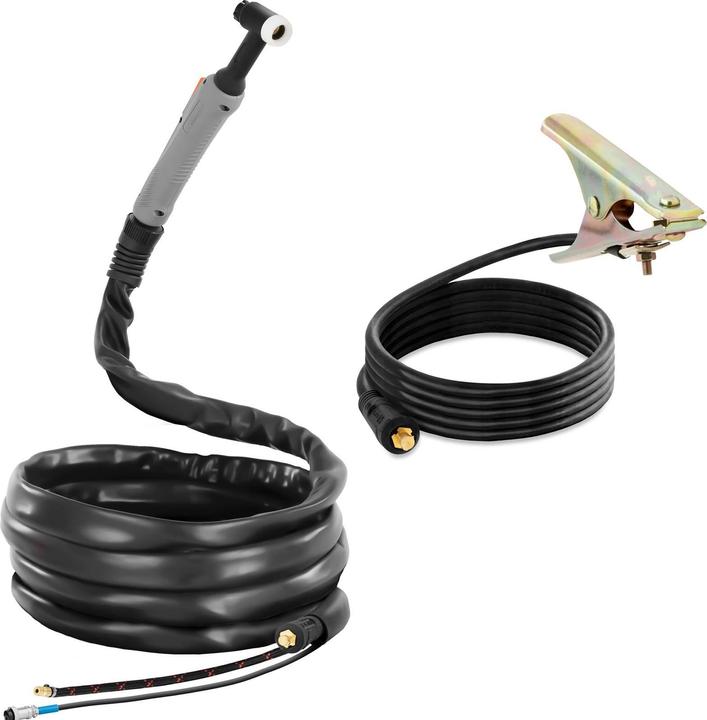

Welding torch with hose package (5 m)
Earth cable with clamp (3 m)
Power cable (2.7 m)
Instruction manual.

Key specifications

Max. Welding current
200 A
Item number
34182007

General information

Manufacturer
Stamos
Category
Welding machines
Manufacturer no.
S-WIGMA 200PDC
Release date
17.5.2023

Colour

Colour
White
Exact colour description
White

Welding device properties

Max. Welding current
200 A

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
12 kg

Ingredients and instructions for use

Ingredients
The TIG welding machine with pulse function from Stamos GermanyThe S-WIGMA 200PDC welding machine impresses both professionals and beginners in craft businesses, in the home workshop or on construction sites. It is characterised by first-class performance values, easy handling and precisely adjustable welding results. The manual electric welding function integrated in the device offers further options.Technical detailsVoltage: 230 VIgnition TIG: HF TIG Hosepack: 5 mEfficiency (under rated power): 73 %Pulse width: 10-90 %Current rise time: 0-10 sCurrent fall time: 0-10 sGas lead time: 0-5 sE-Hand welding current: 10-175 A Electrode diameter (E-Hand): 1.6 - 4 mmWIG DC welding current: 10-200 A2T / 4T: Yes TIG DC: Yes Arc Force: Yes Hot Start: Yes Pulse function: Yes Gas solenoid valve: Yes Overheat protection: Yes Overcurrent protection: Yes Cooling: Fan Duty cycle: TIG: 25 %, MMA: 25 % Power factor: 0.61 Pulse current: 10 - 200 A Torch cooling: Gas Gas run-on time: 0 - 10 sInput power max.MMA: 10 kVA, TIG: 10 kVAMaterial housing: Carbon steel Insulation class: H Conformity to standard: EN60974-1 Input current max.MMA: 40 A, TIG: 35 AWelding thickness: 6 mmIP protection class: IP21S Rated input current: MMA: 20 A, TIG: 15 AOpen-circuit voltage: 65 VElectrode diameter (TIG): 2.4 mmPulse frequency (DC): 0.2 - 200 HzWelding thickness MMA: 6 mmWelding thickness TIG: 6 mmWelding current at 100% duty cycle: MMA: 90 A, TIG: 100 A Scope of deliveryTIG welding machine S-WIGMA 200PDC, welding torch with hosepack (5 m), earth cable with clamp (3 m), power cable (2.7 m), operating instructions.
