Striebel&John Media Distributor 4-Row UK648MW

Manufacturer: Striebel&John
Designation: 4-Row Media Distributor with Patch Panel and Door
Type: UK648MW
Mounting Type: Flush-mounted
Number of Rows: 4
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: No
Material of Housing: Plastic
Height: 747 mm
Width: 384 mm
Depth: 97 mm
Installation Depth: 81 mm
Installation Height: 605 mm
Installation Width: 280 mm
Internal Depth: 95 mm
Grounding Terminal Block: No
Neutral Terminal Block: No
DIN Rail: Yes
With Mounting Plate: Yes
Mounting Option: Yes
EMC Version: No
Color: White
RAL Number: 9016
Protection Class (IP): IP30
With Lock: Yes
Type of Locking: Push-button
Signal-Passing Door: Yes

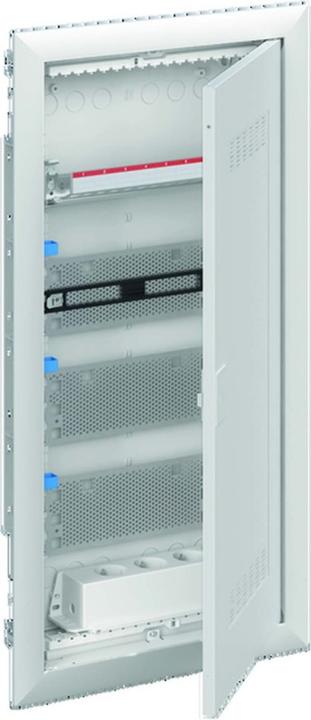

The media distributors of the UK600 series are designed for flush mounting. They impress with many new and unique technical features. A connection space that is up to 200% larger allows for easy and efficient installation of devices. With ample space, all conceivable devices such as routers or other media modules can find their secure place. Modular perforated mounting plates enable easy installation of devices, and an integrated swivel triple socket ensures power supply. A 12-port patch panel provides sufficient space for keystone modules, e.g., for RJ45. An optionally available interchangeable frame quickly turns the UK600 into a focal point and integrates it into any environment. The distributors can be used for flush and hollow wall mounting and carry a VDE mark.

Applicable Standards: DIN 43871, DIN EN 60670-24, VDE 0606-24.
