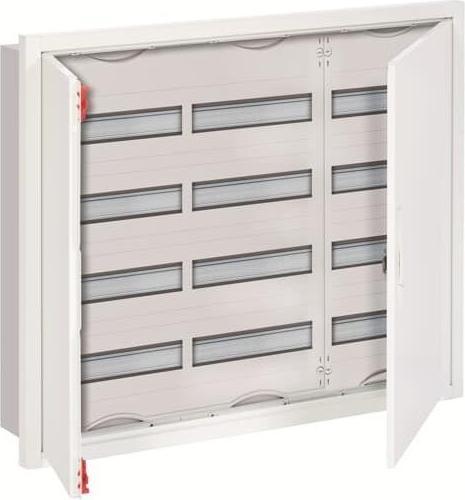

Striebel & John UP Distributor 4r. U43

Manufacturer: Striebel & John
Designation: UP Distributor 4r.
Type: U43
Mounting type: other
Number of rows: 4
Width in division units: 36
Type of cover: door
Cover design: closed
Transparent cover/door: no
Signal-permeable door: no
With lock: yes
Type of closure: other
Material of the housing: steel
Installation depth: 120 mm
Installation height: 684 mm
Installation width: 810 mm
Internal depth: 106 mm
Ground terminal block: yes
Neutral terminal block: yes
DIN rail: yes
With mounting plate: no
Mounting option: no
EMC version: no
Color: white
RAL number: 9016
Protection class (IP): IP31
Height: 684 mm
Width: 810 mm
Depth: 120 mm

The small distributors of the ComfortLine Compact series are designed for flush and hollow wall mounting. They impress with many new and unique technical features. A row spacing of 125 mm allows for easy and efficient installation of the modular devices. The QMS snap-in technology enables customization of the distributor fields and combination sets according to customer requirements. The housings are supplied with a frame and door. The discreet design of the frame allows for a wall projection of only 15 mm, and the integrated plaster adjustment adapts the small distributor to any environment. With a low installation depth of 110 mm, the small distributors can be easily mounted in hollow walls with simple cladding. A special hollow wall set significantly simplifies and accelerates installation in hollow walls, making every small distributor a hollow wall distributor. The housings feature pre-formed entries for cable routing at the top, bottom, sides, and rear. The standard removable cable entry slider greatly simplifies and speeds up the wiring process.
