Swaytronic Solar panel rigid
200 W, 9 kgMore than 10 pieces in stock at supplier
Performance
Product details

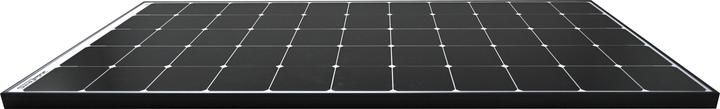

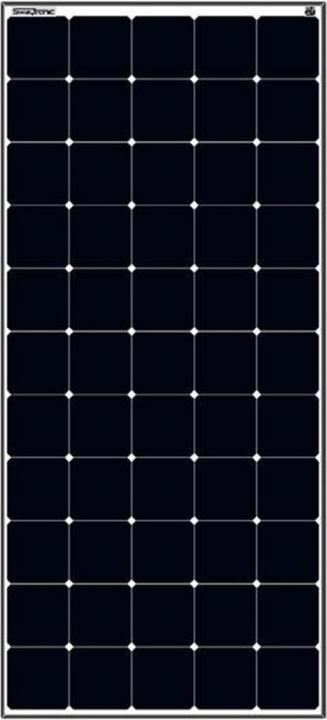

Starres solar panel for both stationary and mobile use. Monocrystalline solar cells from Sunpower with a very high efficiency of over 22.5%. Back-contact cells ensure maximum possible solar output. Pre-assembled solar twin cables with a length of 3.5 m.
Application: The solar panels from Swaytronic are equipped with monocrystalline solar cells from Sunpower, offering a very high efficiency of over 22.5%. They are suitable for both stationary and mobile applications, such as caravans, boats, garden sheds, island systems, etc. The connection box is IP65 rated, making it dust-tight and protected against water jets from any angle.

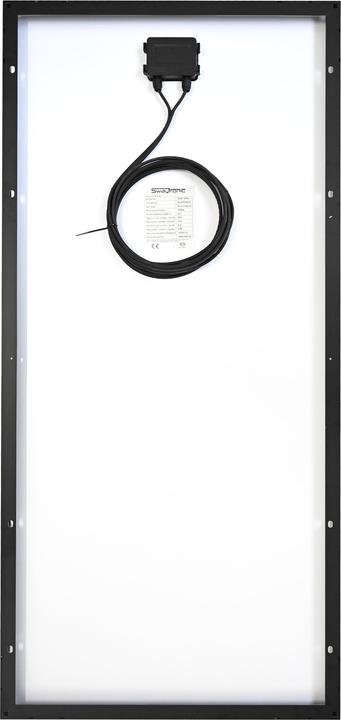

With the 3.5 m long connection cables of the solar panel, it can be directly connected to the solar charge controller in most applications without the need for additional extensions. Series connections of the panels up to 1000 V are possible, and the solar panels can be connected in parallel to increase power output. In combination with a solar charge controller and a storage battery (LiFePO4) from Swaytronic, an autonomous energy system can be realized without extensive prior knowledge.
Sunpower back-contact cells: By using back-contact solar cells from Sunpower, maximum solar yield is achieved. With cell efficiencies of over 22.5%, these solar cells are among the top products on the market. The back contacts allow the entire surface area of the solar cell to be utilized, eliminating shading from metal contacts. Sunpower solar cells utilize a broader range of the light spectrum. The result: the module generates power earlier in the morning and operates longer in the evening.
Delivery includes: 1 x rigid solar panel 200 Watt High Performance.
VAT. Reduction according to §12 para. 3 no. 1 UStG
This product is sold at the reduced VAT. rate of 0% (in accordance with §12 Para. 3 No. 1 UStG). The offer is aimed exclusively at end customers who install the photovoltaic system and its main components within Germany on or near residential buildings, flats or public buildings. By purchasing this item, you agree to use it exclusively for the above-mentioned purpose. The resale of this item is prohibited.Length | 144 cm |
Width | 66 cm |
Cell type | Monocrystalline |
Nominal power | 200 W |
Solar panel type | Solar panel |
Item number | 21961037 |
Manufacturer | Swaytronic |
Category | Solar panels |
Manufacturer no. | 7640370545515 |
Release date | 28.3.2023 |
Colour | Black |
Exact colour description | Black |
Frame colour | White |
Material group | Glass |
Material | Monocrystalline silicon |
Solar panel type | Solar panel |
Protection type (IP code) | IP65 |
Cell type | Monocrystalline |
Solar panel design | Permanently installed, Rigid |
Nominal power | 200 W |
Voltage (MPP) | 34 V |
Rated current (MPP) | 5.89 A |
Short circuit current | 6.27 A |
Open circuit voltage (UMPP) | 40 V |
CO₂-Emission | |
Climate contribution |

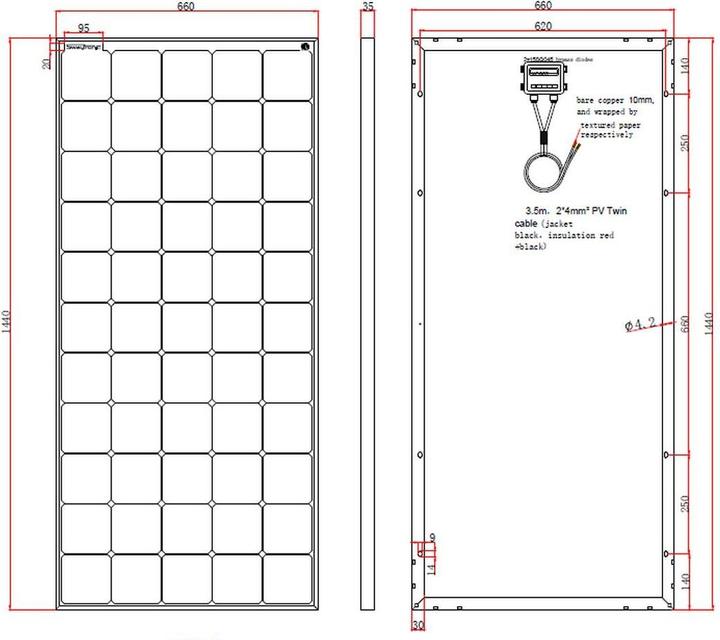

Length | 144 cm |
Width | 66 cm |
Height | 3.50 cm |
Weight | 9 kg |
