Name: Digalox DPM72-MPN+-RS485 Digital Panel Meter
Brand: TDE Instruments
SKU: 36744742
Price: 229.99 EUR
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

TDE Instruments

Innovative, individual, and multifunctional: The DPM72-MP+ and DPM72-MPN+ measuring devices for electrical quantities stand out due to their extensive functions and configuration options. They are suitable for measuring various types of measurements (AC/DC voltage, AC/DC current, frequency, power, power factor) and offer comprehensive features. The individual configuration of the devices and the real-time transmission of all measured values are ensured by the Modbus interface. Thus, the DPM72 measuring devices are versatile and enable a wide range of applications for industrial use. These multifunctional measuring devices are particularly in demand for monitoring machine and operational data and are suitable for modernizing outdated systems, as they are especially retrofit-friendly. Additionally, they can be mounted on DIN rails or attached to other surfaces through appropriate holes in the housing.

Extensive customizability via software: Using the configuration software Digalox Manager, the measuring devices can be individually set up. Once configured, the DPM72 reliably transmits your measured values in real-time. The software allows for reading the measured values stored in memory, which can then be graphically analyzed and exported as a CSV file.

Switching outputs: Two galvanically isolated alarm outputs allow for triggering an alarm when individually adjustable threshold values are reached, as well as executing on/off operations.

Modbus interface: The RS485 Modbus interface of the DPM72 measuring devices enables both configuration and transmission of all measured values. The RS485 Modbus protocol complies with the established industrial standard, allowing the DPM72 measuring devices with Modbus interface to be universally combined with existing Modbus devices from other manufacturers.

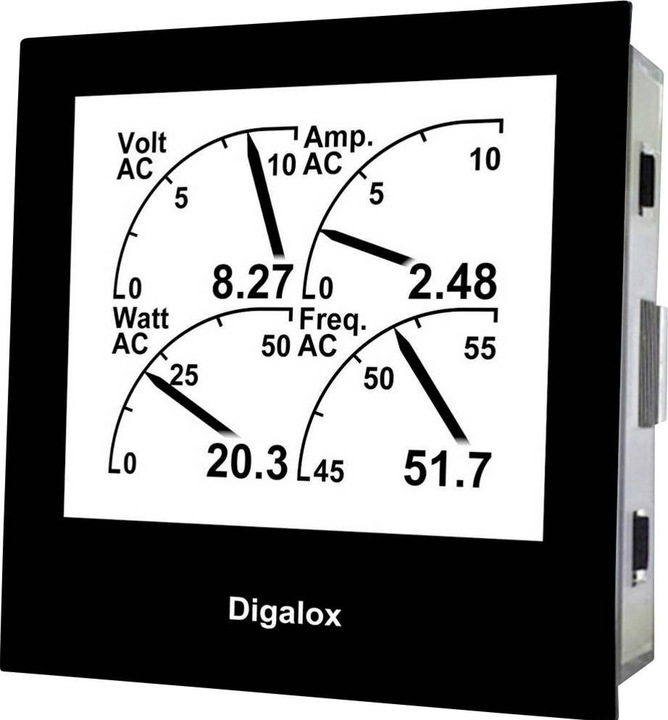

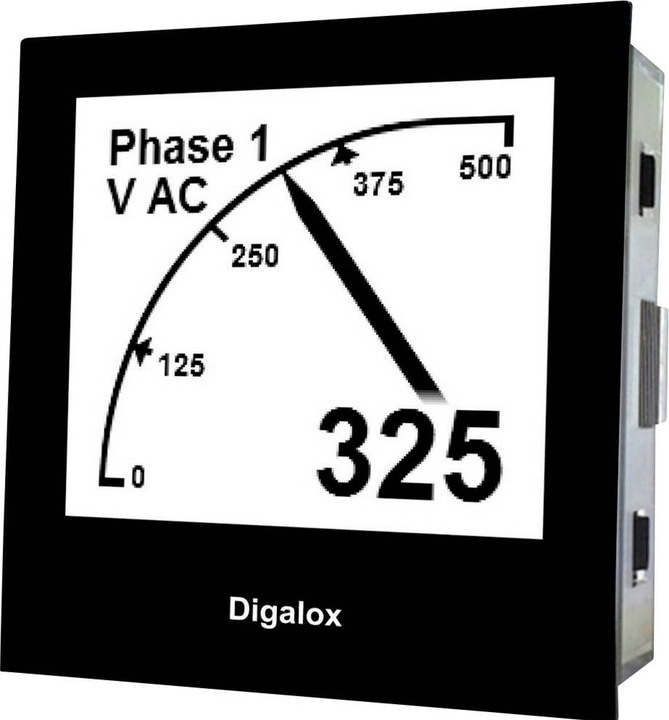

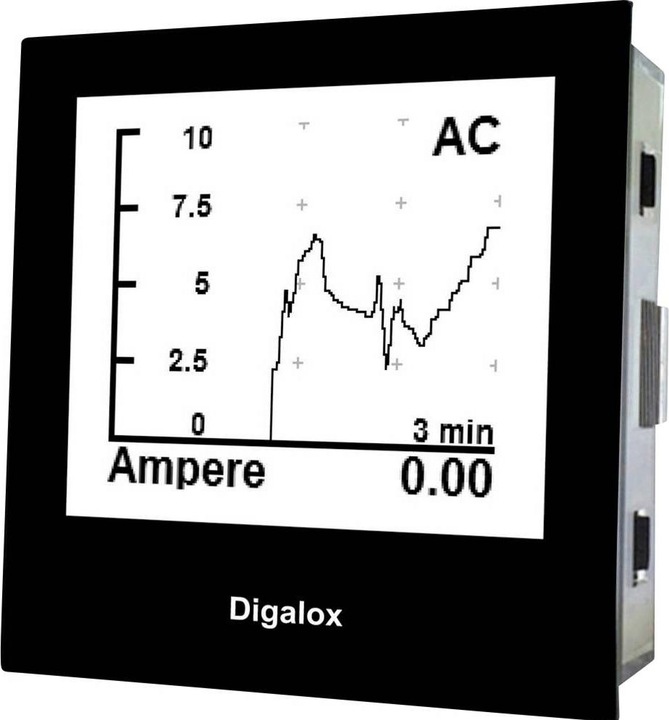

Actual product image TDE Instruments Digalox DPM72-MPN+-RS485 Digital Panel Meter
