Shower channel TECEdrainline straight, length 900 mm, stainless steel

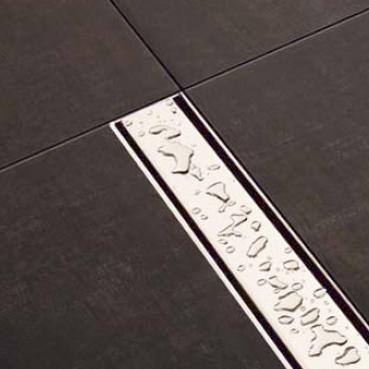

This straight channel body is designed for the TECEdrainline shower channel, suitable for installation in screed. It features an insulating flange and sealing collar for on-site sealing. TECEdrainline shower channels eliminate disruptive separations such as shower trays and cubicles, allowing for a uniform floor design. This creates barrier-free bathrooms with a spacious character, transforming them into real living spaces.

Consisting of:

• Channel body made of stainless steel
• Moulded insulating flange with waterproof special adhesive surface for bonding the sealing sleeve on site
• Sealing sleeve made of water-impermeable fleece, for incorporation into the insulating coating of the thin-bed waterproofing by the customer
• Connection bracket for anchoring in the screed and for mounting optional mounting feet
• Central connection pipe for drain
• Seals
• Overall length including insulating flange: 900 mm
• Visible length after installation: 855 mm
• Overall width including insulating flange: 155 mm
• Visible width after installation: 75 mm
• Overall height to OKFFB: 67/95/120/148 or 65 mm (depending on drain)

Please order separately:

• Designer grating or tile recess
• Drain
• Mounting feet (optional).
