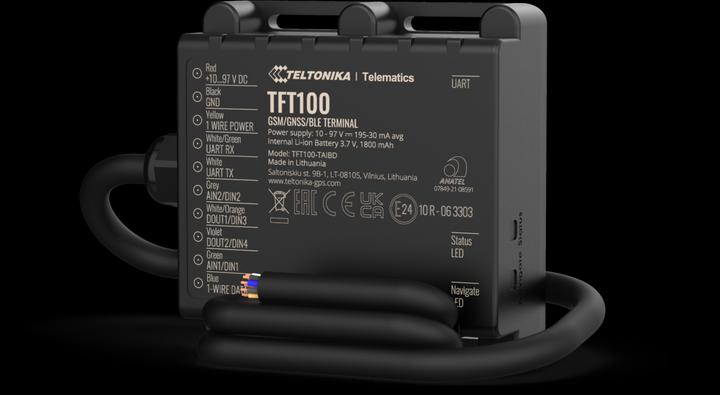

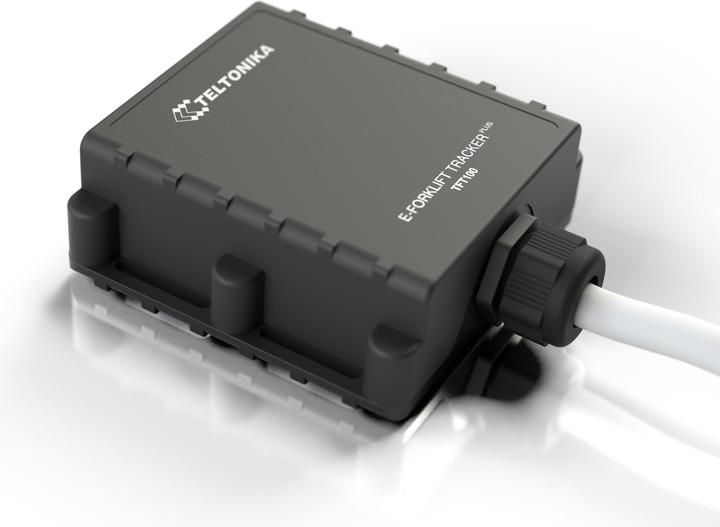

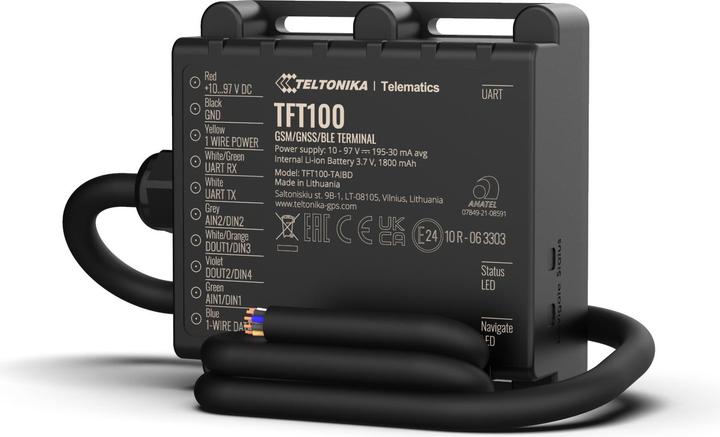

Teltonika TFT100TSTAA0 - TFT100 - E-Forklift/E-Scooter Tracker Plus, CAN Interface

Price in EUR including VAT, free shipping
Ratings
Delivered between Mon, 19.5. and Thu, 22.5.
10 items in stock at supplier

Product details

TFT100 - E-Forklift/E-Scooter Tracker Plus, CAN Interface

The Teltonika TFT100 is a device designed for electric forklift tracking and management. It provides enhanced voltage capabilities, real-time tracking, and a 1-wire interface for monitoring temperature data and RFID/iButton tags. With a power supply range of 10-97 V, this device is suitable for equipment that requires high voltage support.

Hardware:

  • Module name: TM2500
  • Technology: GSM/GPRS/GNSS/Bluetooth (4.0 + LE)
  • GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
  • Receiver: 33 channels
  • Tracking sensitivity: -165 dBm
  • Accuracy: GNSS receiver start times: Hot
  • Cellular technology: GSM
  • 2G bands: Quad-band GSM 850/900/1800/1900 MHz, GPRS Multi-Slot Class 12 (up to 440 kbps); GPRS Mobile Station Class B
  • Data support: SMS (text/data)
  • Power supply: 10-97 V DC
  • Internal batteries: 1800 mAh Li-Ion battery 3.7 V (6.66 Wh) internal backup battery

Interface:

  • CAN modification: 1x CAN-BUS (CAN H - CAN L), 1x AIN1/DIN1, 1x AIN2/DIN2, 1x DOUT1/DIN3, 1x DOUT2/DIN4, 1x 1-Wire, micro-USB, 2x status LED lights
  • GNSS antenna: Internal high-gain
  • GSM antenna: Internal high-gain
  • Sensors: Accelerometer
  • Interface: 2.0 Micro-USB, Micro-SIM with eSIM possibility, 128 MB internal flash memory (220,000 records)

Software:

  • Configuration and firmware update: FOTA WEB (cloud-based solution), Teltonika Configurator (USB, Bluetooth)
  • Scenarios: Eco/green driving, over speeding, jamming, excessive idling, fall down, towing detection, crash detection, auto geofence, manual geofence, trip, immobilizer, iButton, DOUT control via call, DOUT control via ignition
  • Sleep modes: GPS sleep, online deep sleep, deep sleep, ultra deep sleep
  • Protocols: UDP/TCP/SMS
  • Data sending: Main, duplicate, and backup servers
  • Security: Configuration password, SMS login and password, authorized GSM numbers list
  • Time synchronization: GNSS, NITZ, NTP
  • Supported peripherals: Temperature and humidity sensor, universal BLE sensors support.

Key specifications

GPS accessory type
Other
Item number
21794040

General information

Manufacturer
Teltonika
Category
GPS navigation accessories
Manufacturer no.
TFT100TSTAA0
Release date
17.8.2022

GPS accessory properties

GPS accessory type
Other

Battery properties

Battery
Chargers without battery
Battery type
Li-ion
Voltage
3.70 V
Capacity
1.80 Ah

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
72.50 mm
Width
73 mm
Height
27.30 mm
Weight
169 g
