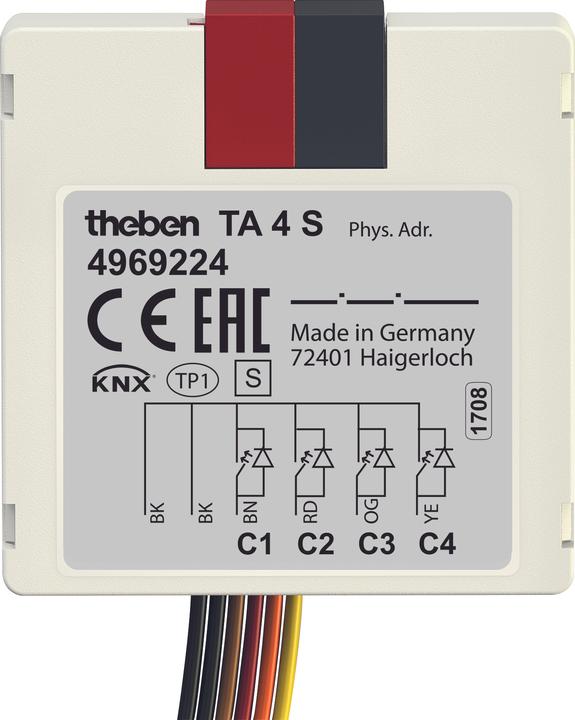

The Theben TA 4 S KNX is a versatile 4-fold binary input button interface designed for integration into KNX systems. It allows for flexible control of various functions such as switches, dimmers, blinds, and temperature measurements. With a 6-pole cable connection and NTC inputs for actual temperature measurement, it is ideal for use in flush-mounted boxes. The interface offers easy parameterization, allowing inputs to be converted into outputs, including a blinking and pulsing function. The identification of the wire pairs is done through color coding, which simplifies installation and maintenance. Thanks to the increased output current of 3 mA, both standard and low current LEDs can be controlled, enhancing application flexibility.

• Flexible assignment of functions such as dimming, blinds, and temperature measurement
• Inputs reconfigurable to outputs with blinking and pulsing function
• Easy installation in flush-mounted boxes with conventional buttons/switches
• Color coding for identifying wire pairs for simple installation
• Increased output current of 3 mA for controlling standard LEDs.
