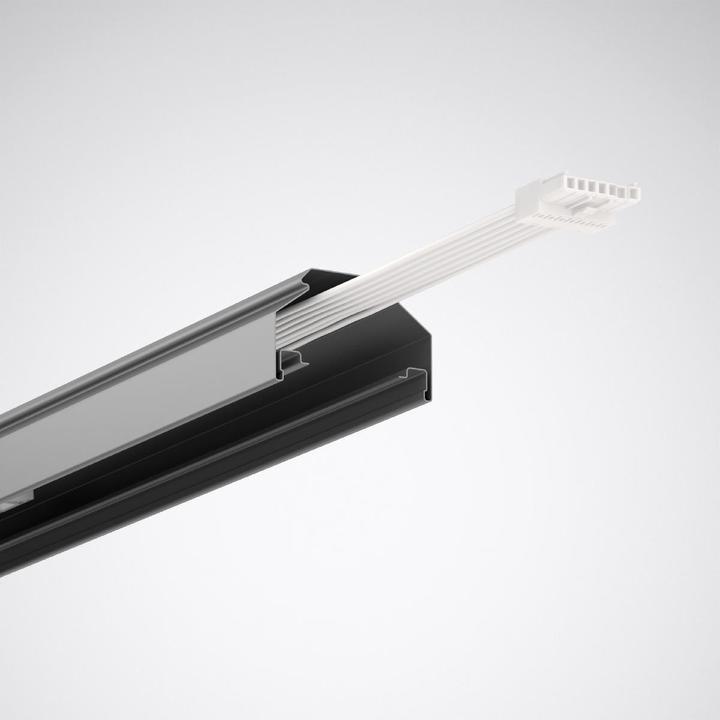

Trilux Support Profile IP64 07650 L150 #7266100

Manufacturer: Trilux
Description: Support Profile IP64
Length: 1521 mm
Type: 07650 L150 #7266100
Version: Single-sided
Variable device carrier spacing: no
With wiring: yes
Number of wiring conductors: 7
Cross-section of wiring conductors: 2.5 mm²
Suitable for cable tray: no
With cable tray: no
Electrical connection with plug system: yes
Integrated electromechanical coupling: yes
Material: Steel
Color: Silver
Width: 79 mm
Height: 50 mm
Protection class: I
Protection type (IP): IP64

The support profile is suitable for E-Line 7651 Fix IP64 LED light strip single lights or light strip end caps. In combination with a separately ordered light strip coupling, it is also suitable for light strip applications.

It features 7-wire through wiring with a conductor cross-section of 2.5 mm². It has a disconnect plug top for tool-free electrical connection of the device carriers, as well as a 7-pole socket-plug pair for quick electrical connection and a touch-safe termination of the wire ends.

The heat-resistant through wiring is fully equipped with all necessary components from the factory. All connections are designed as quick connections with polarity protection. The support profile body is made of galvanized steel sheet. The coating thickness of 20 µm (Z 275 according to DIN EN 10346) ensures corrosion protection of up to 33 years when the support profile is used in environments corresponding to corrosion category C3 according to DIN EN ISO 12944-2. The surface is coated in silver-gray.
