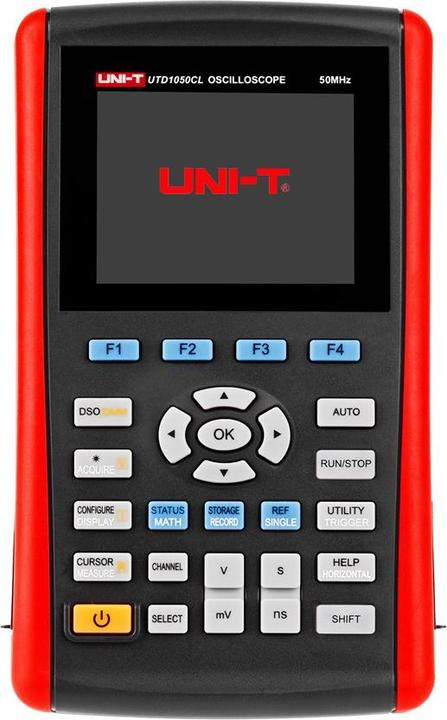

The UTD1050CL is a 50 MHz handheld digital oscilloscope and multimeter in one. The device features a high-contrast color LCD screen. With a 3999 display, it can record a wide range of voltage measurements up to 200 V/div, as well as current, resistance, diode, capacitance, and continuity tests. The unit's functionality is enhanced by its unique waveform recording, storage, and recall capabilities. A USB port allows the unit to be connected to a computer. It also includes a simple automatic setup and intelligent software. The built-in rechargeable battery guarantees 8 hours of continuous operation, which can continue even when connected to a power source.

Technical data:

• Analogue bandwidth: 50 MHz
• Number of channels: 1
• Rise time: <= 7 ns
• Sampling rate: 250 MS/s
• Memory depth: 12 kpt
• Time base: 5 ns/div ~ 50 s/div
• Vertical sensitivity: 5 mV/div ~ 20 V/div
• Write methods: setup, waveform, bitmap
• Trigger methods: Edge, Pulse Width, Slope, Video
• Waveform operations: A + B, AB, AxB, A/B, FFT
• Automatic measurement: peak-to-peak, amplitude, maximum, minimum, peak, bottom, middle, average, RMS, pretrigger, frequency, period, rise time, fall time, pulse positive/negative, duty cycle
• Frequency window: 6 bits
• Interfaces: Mini-USB

DC voltage: 400 mV / 4 V / 40 V / 400 V ± (1 % + 5)
AC voltage: 400 mV / 4 V / 40 V / 400 V ± (1.2 % + 5)
DC current: 400 µA / 4000 µA / 40 mA / 4000 mA / 4 A ± (1 % + 5)
AC current: 400 µA / 4000 µA / 40 mA / 4000 mA / 4 A ± (1.5 % + 5)
Resistance: 400 ohms / 4 kOhms / 40 kOhms / 400 kOhms / 4 MOhms / 40 MOhms ± (1.2 % + 5)
Capacitance: 51.2 nF / 512 nF / 5.12 µF / 51.2 µF / 100 µF ± (3 % + 5)
Power supply: 7.4 V 3600 mAh Li-ion battery; 100V ~ 240V AC, 50Hz / 60Hz
Display: 3.5" TFT LCD (320 x 240 pixels)
Dimensions: 199 x 118 x 49 mm
Weight: 0.9 kg

Included: Mains cable, test leads, test probe, USB cable, power supply unit, source adapter for measuring current.
