The high-quality TrueRMS bench multimeter features a wide display range as well as a large, highly readable LCD display, and offers several component testing functions in addition to standard multimeter functions. Besides the large, easy-to-read display, the TrueRMS-capable bench multimeter includes a USB interface, allowing the device to be remotely controlled and read from a PC. In addition to providing accurate measurements with low measurement circuit loading, the device offers component tests such as inductance measurements, transistor, and thyristor testing functions. A very high-impedance measurement input for voltages up to 600 mV ensures precise measurement results with minimal circuit loading, and a wide current measurement range up to 10 A enables practical current measurements.

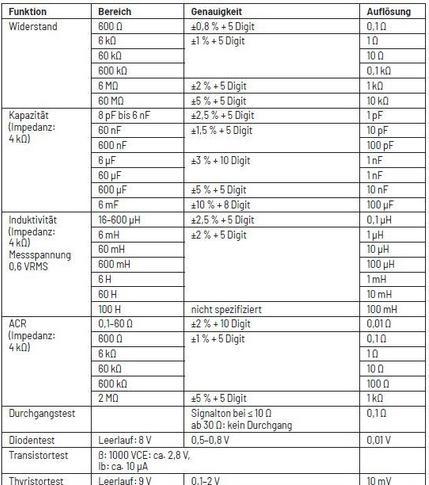

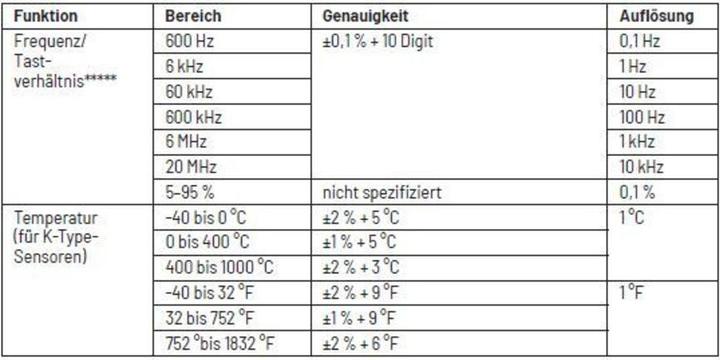

TrueRMS digital multimeter with a display range of 5,999 digits. Large negative LCD display (119 x 51 mm) with an additional analog display (bar graph). Automatic range selection. DC and AC voltage measurement up to 1000 V/750 V RMS. DC and AC current measurement up to 10 A. AC+DC measurement possible. Max resistance measurement range: 60 MΩ. Max capacitance measurement range: 6 mF. Max inductance measurement range: 100 H. Max frequency measurement range: 20 MHz. Temperature measurement from -40 to +1000 °C. Diode and continuity test (audible). Specifications for accuracy and resolutions. Transistor test. Thyristor test. Data hold function. Max/Min memory. Very high-impedance measurement input in the 600 mV range (3 GΩ), otherwise 10 MΩ. Overvoltage protection for the measurement inputs. USB interface for PC connection. Wide-range power supply, 100–240 V. Note: The latest and revised user manual can be found in the downloads.
