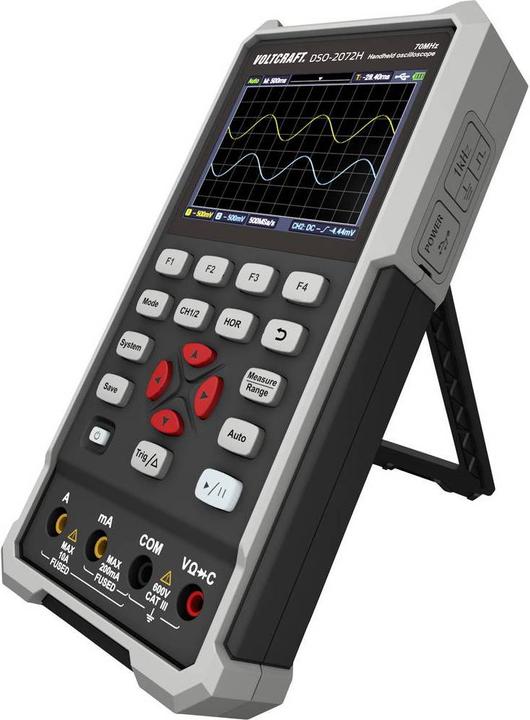

Three measuring devices in one. The Voltcraft 3-in-1 digital oscilloscope has it all in the truest sense of the word.

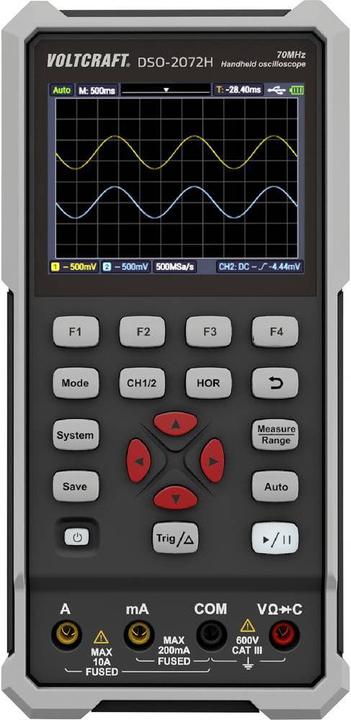

Function 1: Digital oscilloscope

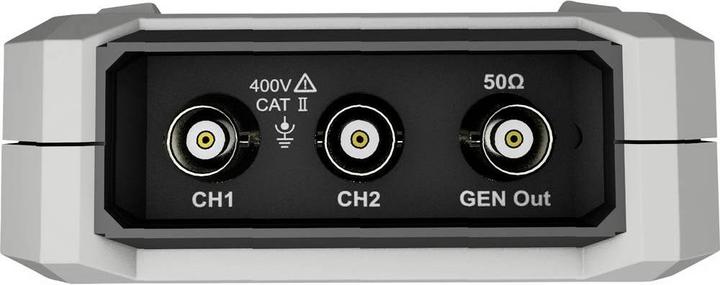

As an oscilloscope, the DSO-2072H has two channels with a maximum bandwidth of 70 MHz, a maximum sampling rate of 250 MS/s and 8K recording length. The vertical resolution is 8-bit.

Function 2: Multimeter
The multimeter can be used in the CATII 1000 V measurement category for voltage, current, resistance, capacitance, continuity and diode function measurements. The auto function simplifies work processes and TRMS ensures reliable measured values. The display has 20,000 digits.

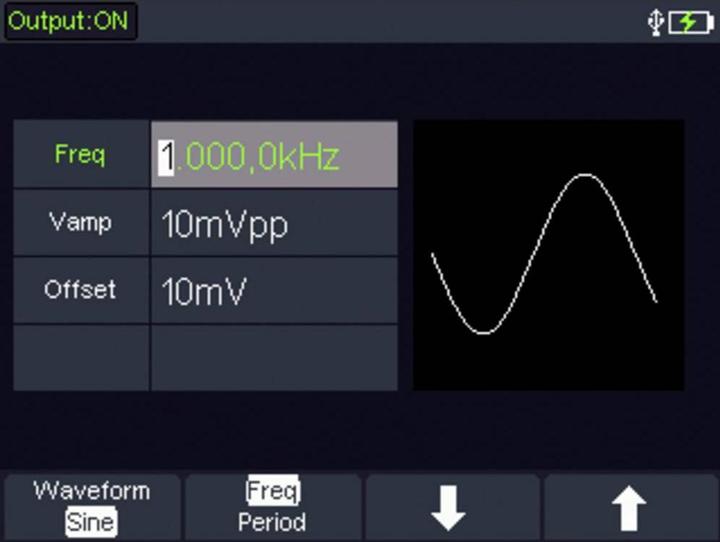

Function 3: Waveform generator
The waveform generator has one channel with a maximum frequency output of 25 MHz and a maximum sampling rate of 125 MS/s. A frequency resolution of 0.1 Hz, 14-bit vertical resolution and a waveform length of 8K allow reliable operation.

Adequate accessories

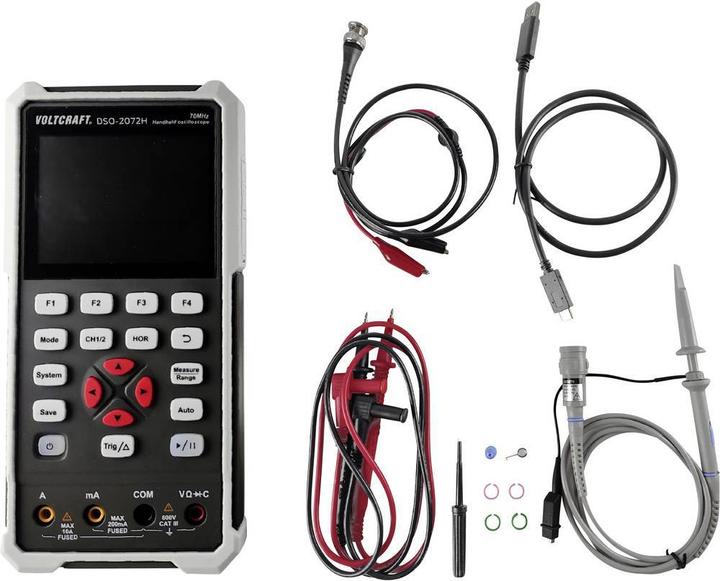

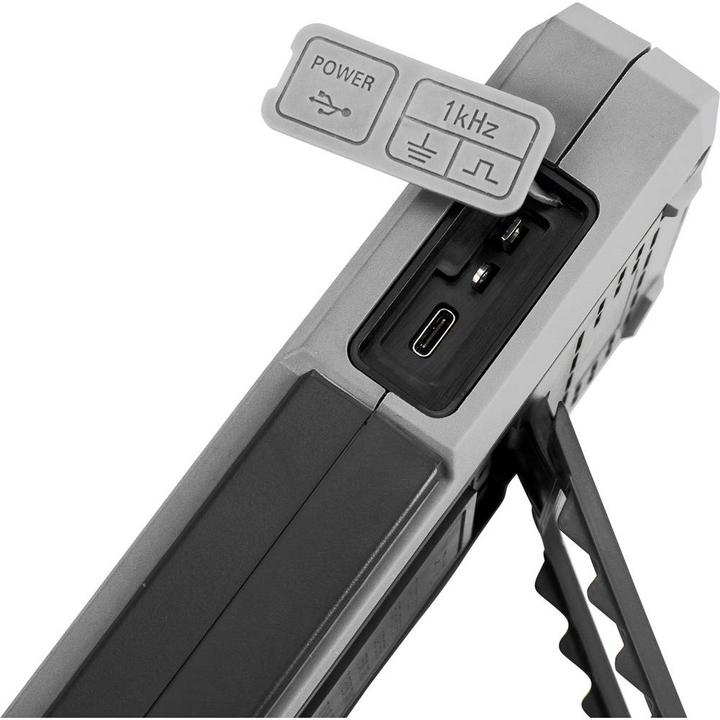

The DSO-2072H comes with a probe with adjustment tool, a cable from BNC connector to crocodile clip, a pair of black and red multimeter test leads, a USB cable, a quick start guide and a protective soft case. The enclosed CD contains software and an English operating manual.
