Digital Oscilloscope with Triple Function

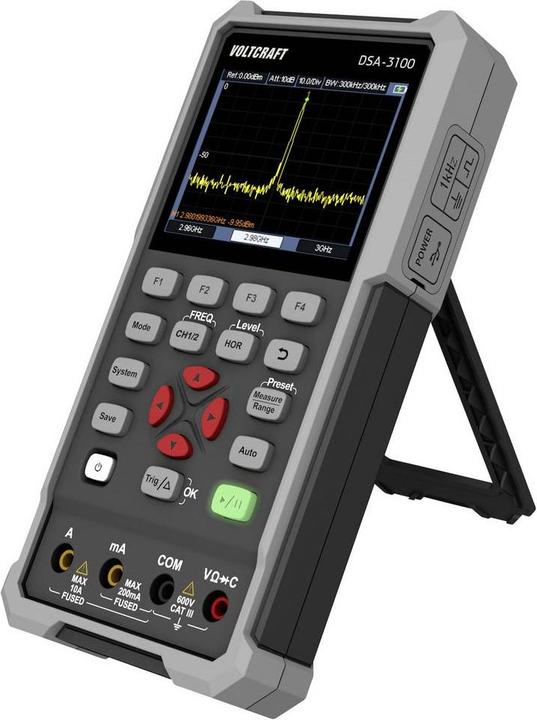

The Voltcraft DSA-3100 Digital Oscilloscope is perfectly designed for mobile use: compact and robust, equipped with a grippy edge protector, it is the ideal companion for tackling various requirements. The non-slip buttons facilitate operation, while the clear 8.89 cm (3.5 inch) LCD color display allows for on-site evaluation.

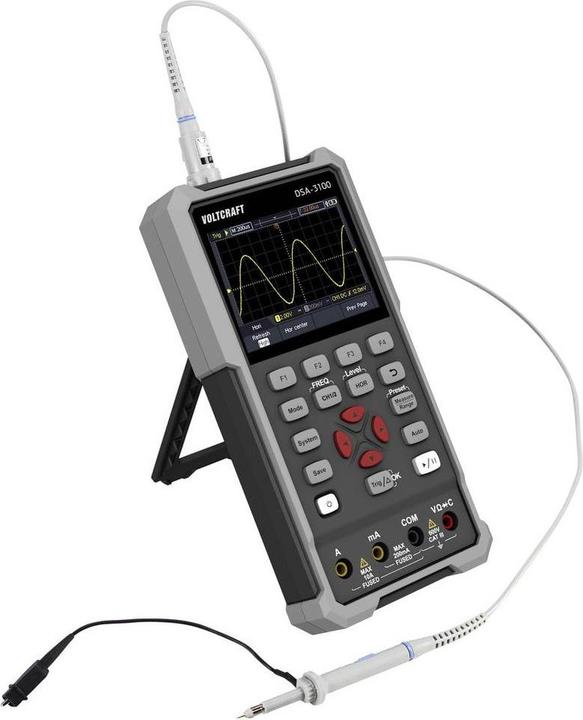

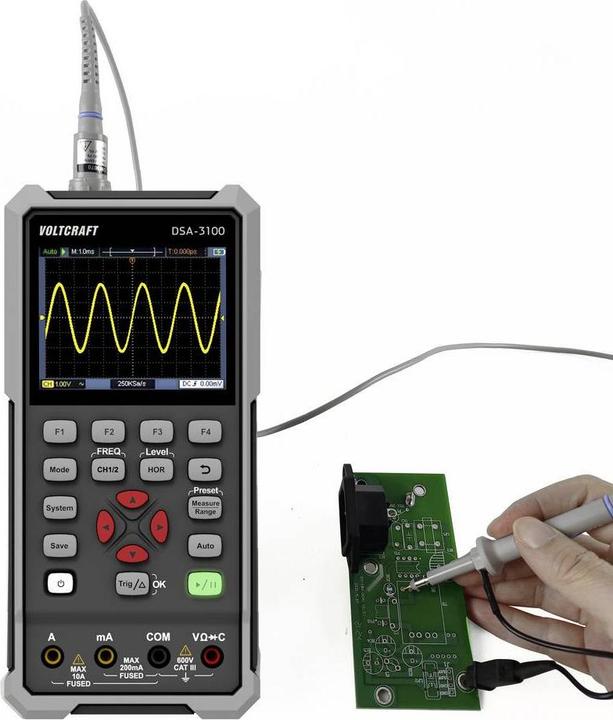

Function 1: Oscilloscope

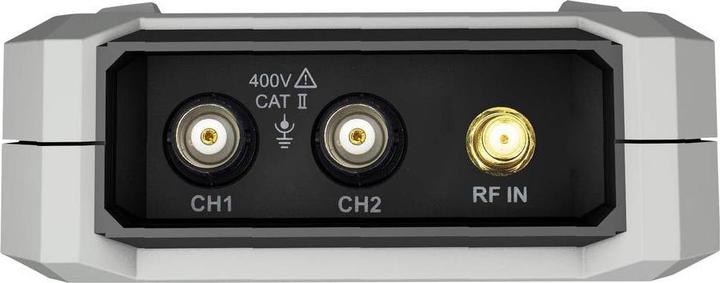

The DSA-3100 offers two channels with a bandwidth of 100 MHz, a maximum sampling rate of 500 MS/s, and an 8K recording length. The update rate is 10,000 wfms/s. The integrated USB Type-C interface supports power banks as well as PC software connection and self-calibration functions.

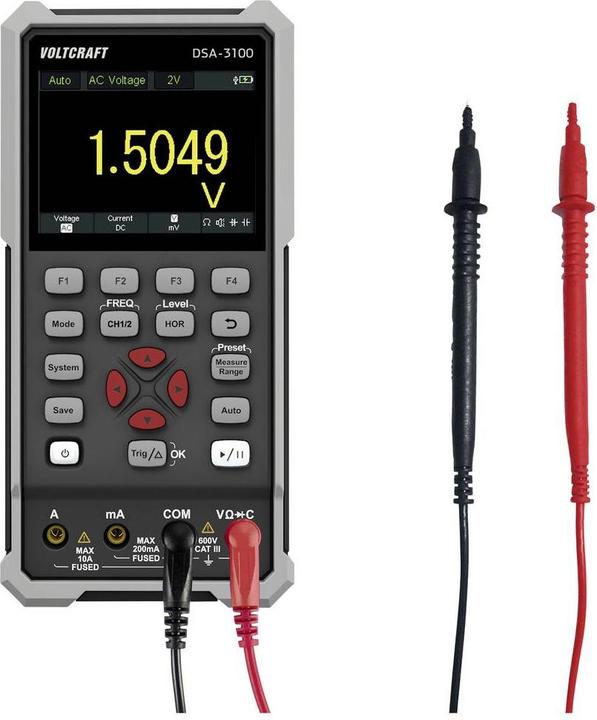

Function 2: Multimeter
The multimeter is usable in measurement category CATII 1000 V for continuity tests, voltage, current, resistance, diode function measurements, as well as on/off tests. Relative measurements are also possible. Hold and auto functions simplify workflows, and TRMS ensures reliable measurement values. The display features 20,000 counts.

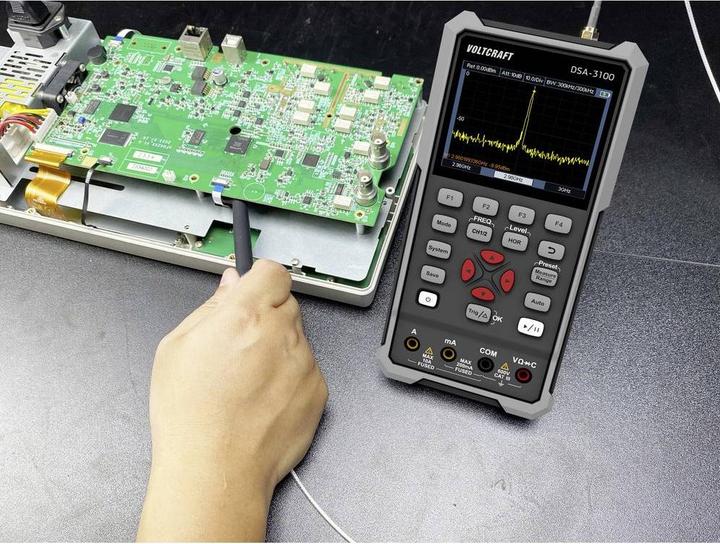

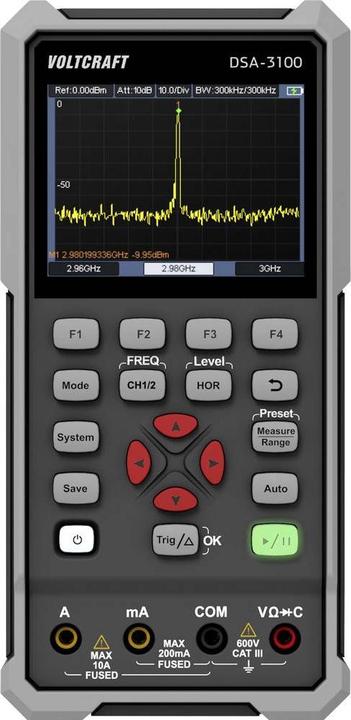

Function 3: Spectrum Analyzer
The spectrum analyzer of the Voltcraft DSA-3100 operates in the frequency range of 9 to 3 GHz with a frequency resolution of 100 Hz. The maximum DC input voltage is 50 VDC. The average noise level, which indicates the sensitivity of a spectrum analyzer, is specified as Displayed Average Noise Level (DANL) - for the Voltcraft DSA-3100 with 10 MHz to 2 GHz -130 dBm (typical), < -120 dBm and 2 GHz to 3 GHz -125 dBm (typical), < -115 dBm.

Extensive Accessories

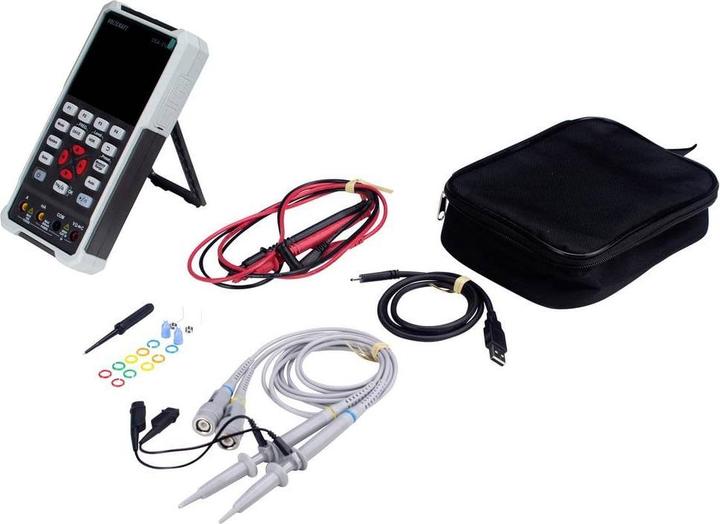

The delivery package includes, in addition to the digital oscilloscope, a USB cable, two test probes, probe adjustment, a multimeter test lead pair (in red and black), a CD with software and user manual, as well as a practical carrying case. Additionally, a quick start guide and a safety data sheet are included.
