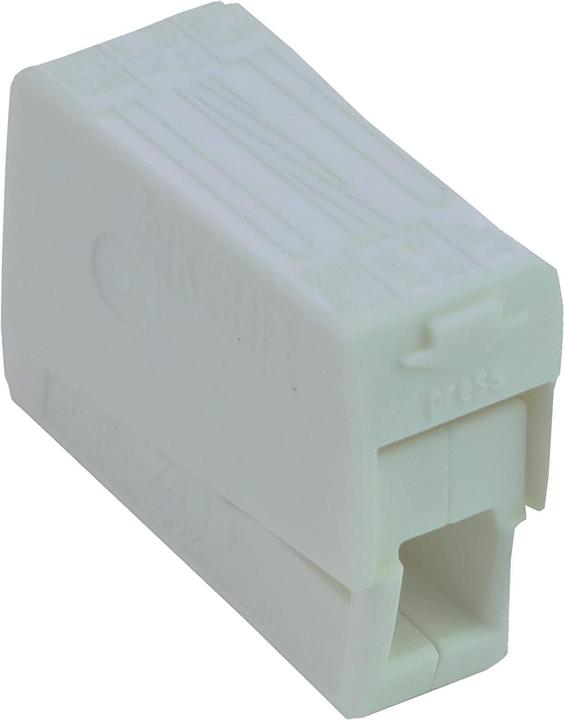

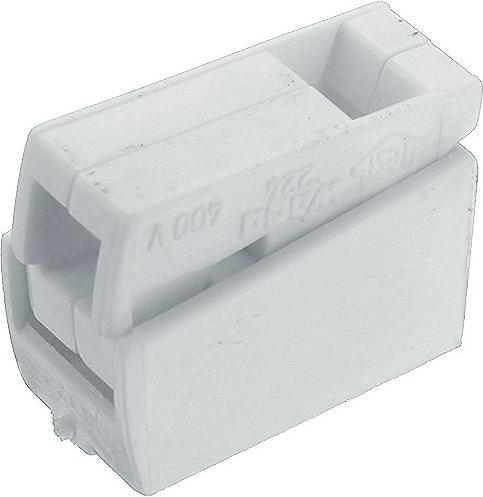

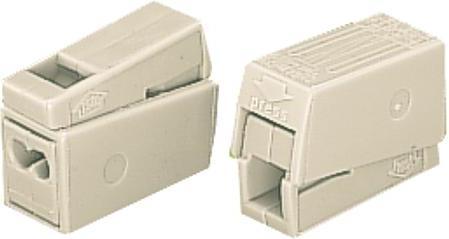

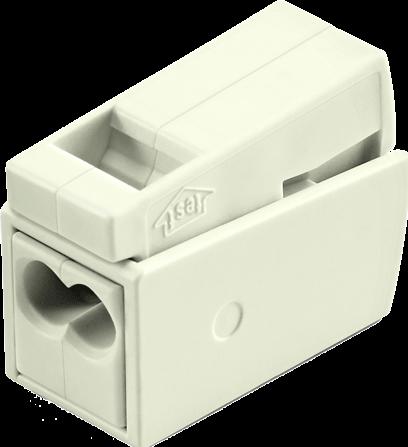

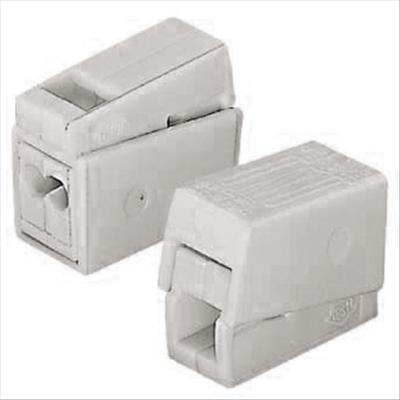

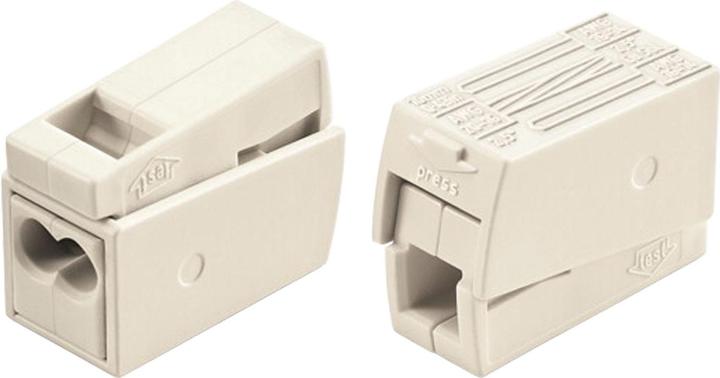

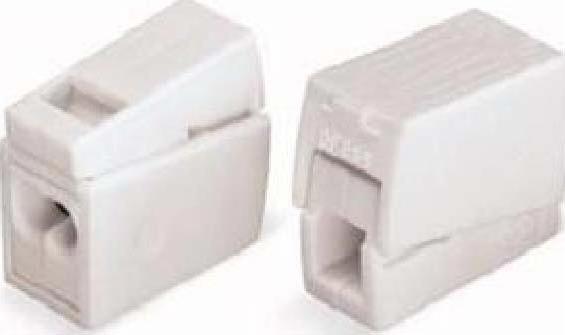

Wago Light clamp

Price in EUR including VAT
4Ratings
BrandMore from Wago
Delivered between Tue, 14.4. and Thu, 16.4.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Colour2

Product details

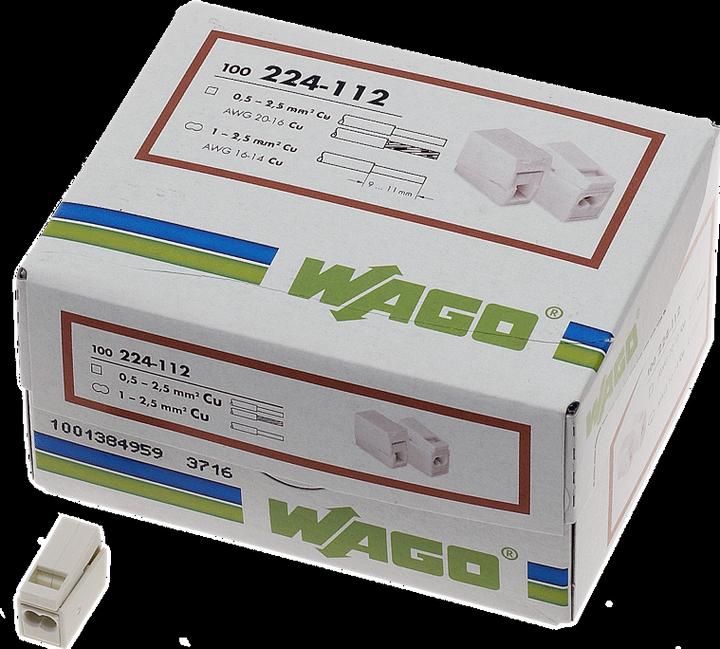

Multi-conductor luminaire terminal block Series 224 for through wiring on the installation side 400 V/4 kV/2, 24 A. Installation side 2x1.0-2.5 mm², luminaire side 0.5-2.5 mm², packaged in 10 boxes of 100 pieces. Number of connection points (installation side) 3. Rated cross-section (installation side) 1 - 2.5 mm². Type of locking/unlocking none. Color white. Transparent no. Rated voltage 400 V. Rated current 24 A. Suitable for solid conductors yes. Suitable for flexible conductors yes. Suitable for multi-stranded conductors no. Conductor cross-section solid (single/multi-stranded) 1 - 2.5 mm². Min. AWG size 14. Max. AWG size 16.

Key specifications

Colour
White
Cable connection type
Luminaire terminal
Suitable for cable cross-section
2.50 mm²
number of poles
2
Items per sales unit
1x

General information

Item number
16177873
Manufacturer
Wago
Category
Cable joints
Manufacturer no.
224-112
Release date
22.2.2016
External links
Manufacturer's site (de)

Colour

Exact colour description
White
Colour
White

Material

Material
Polyamide
Material group
Fabric

Cable connection Properties

Cable connection type
Luminaire terminal
Suitable for cable cross-section
2.50 mm²
Plug type
Copper-plated contacts
number of poles
2

Origin

Country of origin
Germany, Switzerland

Voluntary climate contribution

CO₂ emissions
0,06 kg
Climate contribution
EUR 0,12

Safety

Protection type (IP code)
IP20

Scope of delivery

Scope of delivery
Light terminal 2x1.0-2.5mmq white
Items per sales unit
1x

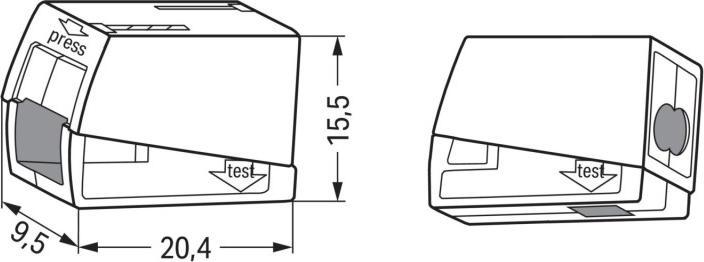

Product dimensions

Length
15.50 mm
Width
9.50 mm
Height
15.50 mm
Weight
21 g

Legal Notice

Product Safety

Package dimensions

Length
11.40 cm
Width
9.90 cm
Height
6.20 cm
Weight
232 g
