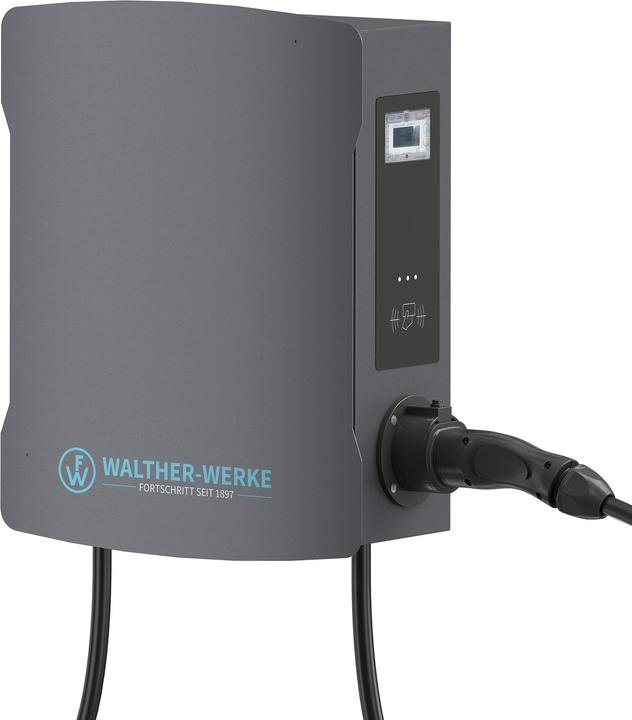

Walther Wallbox smartEVO duo

Equipment features:

• Mode 3 charging according to IEC 61851
• 2x charging connector type 2 (mode 3)
• Cable length 6m - permanently connected
• Charging power per charging point up to 22kW

Three status LEDs in the side panel display the current status of the charging point. Authentication is via RFID panel on the side.

Powerline communication (PLC) in accordance with ISO 15118 enables Plug & Charge and bidirectional communication with the vehicle.

Connection to energy management systems via Modbus TCP or EEBUS. Connectivity to IPD control and IPD manager as well as to the SMA communication protocol (SEMP).

Integrated web server allows for firmware updates and control/maintenance via remote access. Ethernet interface includes AMJ module for connection to fixed data cable.

Visible energy meter (MID-certified) for each charging point.

Smart grid capability through OCPP 1.6 (JSON).

Local dynamic load management (DLM) includes unbalanced load detection (phase-accurate control) of the available charging capacity with up to 250 charging points.

Per charging point:

• Permanent PE monitoring
• 6mA DC residual current monitoring and RCD type A
• Contactor monitoring (welding detection)

Integrated 2-stage temperature monitoring.

Robust and weather-resistant housing made of galvanised powder-coated sheet steel in micaceous iron ore grey (DB703) with a lockable door in an elegant design.

Maximum connection of the supply cable with NYY-J 2x5x10mm². Direct connection to residual current circuit breaker.

Accessories supplied:

• 2 RFID cards Mifare-Desfire EV1
• 1 key
• 1 wall bracket
• 1 AMJ module
• Mounting screws
• Drilling template
• QuickGuide.
