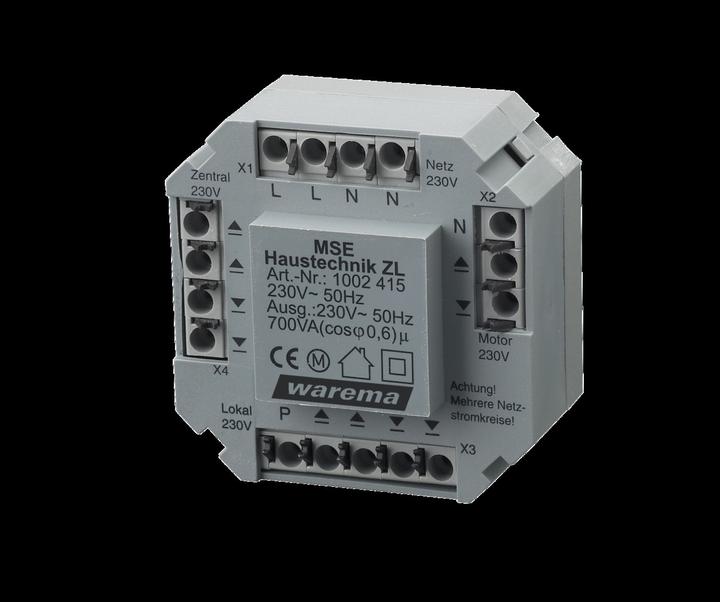

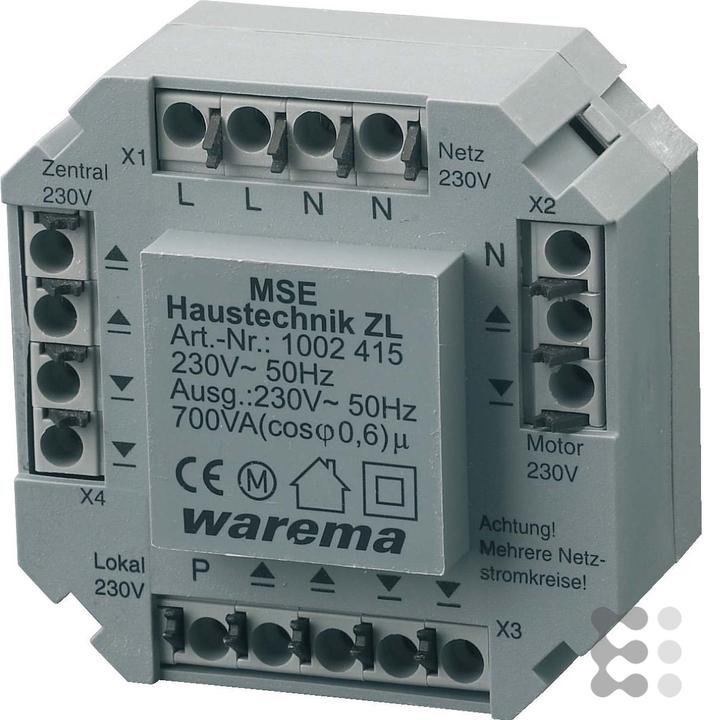

Warema Sonnen MSE Home Technology ZL 1002415

Manufacturer: Warema Sonnen
Designation: MSE Home Technology ZL UP
Type: 1002415
Rated operating current Ie: 0.004 A
Rated operating voltage Ue at AC 50 Hz: 207..253 V
Rated operating frequency: 50 Hz
Current detection module: no
Voltage detection module: no
Connection technology type: other
Rated control supply voltage Us at AC 50 Hz: 207..253 V
Voltage type for operation: AC
Number of outputs, contact-bearing: 2
Number of digital inputs: 4
Switching function: monostable
Electrical connection design for auxiliary and control circuit: other
Protection class (IP): IP20

Motor control unit (MSE) for controlling a 230 V AC sun protection drive. It allows direct control of a 230 V sun protection drive via a sun protection central unit and a local button. Additionally, multiple motor control units can be grouped together and operated collectively from a single button. The logic behavior of the switch is time logic. The time logic causes the MSE to enter self-holding mode after approximately 2 seconds of button activation. A shorter button press generates a reversing pulse (for louver products). It is suitable for use in small installations (up to about 15 units). Note: 230V trailing line voltage.
