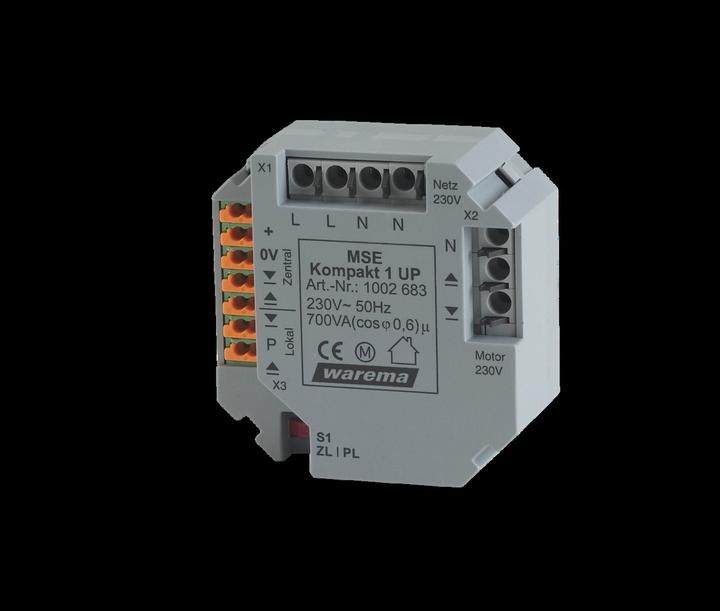

Warema Sonnen MSE Compact 1 UP 1002683

Manufacturer: Warema
Designation: MSE Compact 1 UP
Type: 1002683
Rated operating current Ie: 0.012 A
Rated operating voltage Ue at AC 50 Hz: 207 - 253 V
Rated operating voltage Ue at AC 60 Hz: 0 V
Rated operating voltage Ue at DC: 0 V
Rated operating frequency: 50 Hz
Current sensing module: no
Voltage sensing module: no
Type of connection technology: other
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 30 V
Type of voltage for operation: DC
Number of outputs, contact-bearing: 2
Number of digital inputs: 4
Input for thermistor connection: no
Input for earth fault detection: no
Input for analog temperature sensors: no
Switching function: monostable
Design of electrical connection for auxiliary and control circuit: other
Design of the interface: other
Protection class (IP): IP20
Protection class (NEMA): other

Warema Sonnen MSE Compact 1 UP 1002683: additional details
For controlling 1 motor via the sun protection central unit. A separate button can be connected for local operation. The motor control unit operates via separate control and power loop lines. The safety low voltage is generated within the motor control unit itself. An external power supply is not necessary. Different programs for sun protection products with and without slats can be set. A local drive command is saved after 2 seconds or immediately, depending on programming. In the case of a central command, this drive command is deleted and local operation is blocked. All connection terminals are designed as spring-loaded terminals. The logic behavior, time logic, or permanent logic can be switched via a toggle switch on the device. Additionally, the housing is halogen-free and complies with UL-94 V0 testing.
EAN: 4251317201666.
