Weidmüller A2C 2.5 PE

Price in EUR including VAT
Ratings
Delivered between Fri, 18.7. and Wed, 23.7.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

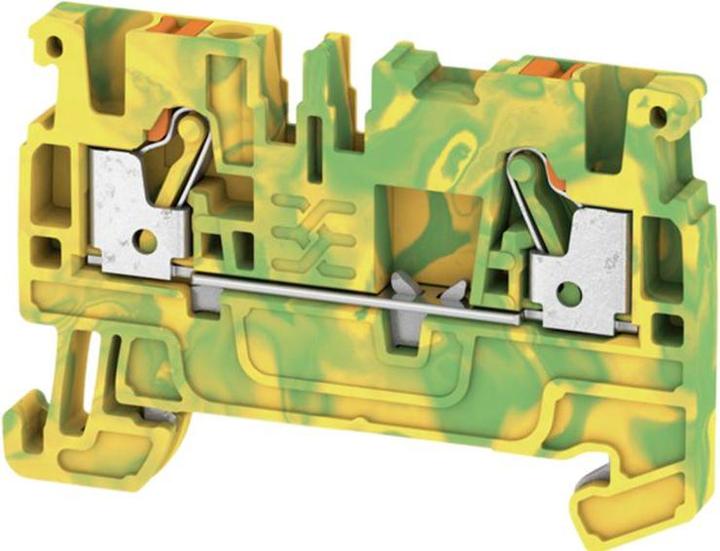

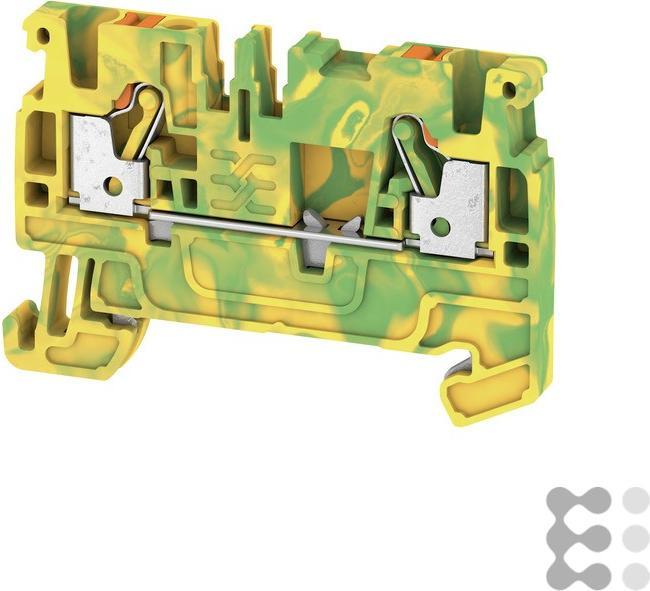

Weidmüller Protective Conductor Terminal Block A2C 2.5 PE

Manufacturer: Weidmüller
Designation: Protective conductor terminal block 2.5 mm², gn/ge
Type: A2C 2.5 PE
PEN function possible: no
Connectable conductor cross-section fine-stranded without ferrule: 0.5..4 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..4 mm²
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 0.5..4 mm²
Electrical connection type 1: Plug connection
Electrical connection type 2: Spring clamp connection
Number of levels: 1
Number of connection points per level: 2
Mounting type: DIN rail TH35
Material of insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0
Width: 5.1 mm
Height: 55 mm
Depth: 36.5 mm
End plate required: yes
Color: green/yellow

Weidmüller Protective Conductor Terminal Block A2C 2.5 PE: additional details
Terminal block for connecting or linking protective conductors to the grounding base (earth). Hardened steel withstands mechanical forces, while tin-plated copper ensures optimal conductivity.
EAN: 4050118328189.

Key specifications

Item number
9958090

General information

Manufacturer
Weidmüller
Category
Cable joints
Manufacturer no.
1521680000
Release date
22.10.2018

Colour

Exact colour description
Green/yellow
Colour
Green, Yellow

Material

Material
Copper, Pewter, Steel
Material group
Metal

Cable connection Properties

Cable connection type
Plug-in terminals
Suitable for cable cross-section
5 mm²
Plug type
Angled on one side

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Protective conductor terminal block A2C 2.5 PE
Items per sales unit
50 x

Product dimensions

Length
36.50 mm
Width
5.10 mm
Height
55 mm
