Series: Z
Wire size: 0.5 → 4mm²
Wire cross section: 0.5 → 4mm²
Color: Green, Yellow
Number of levels: Double
Connection type: Terminal
Operating voltage: 800 V
Grid: 5.1mm
Operating temperature min.: -50°C
Operating temperature max.: +120°C

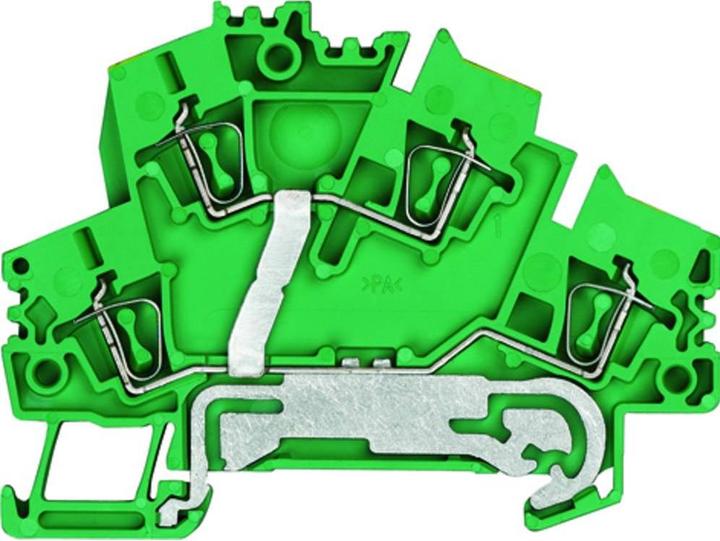

Modular PE terminal blocks, Z series, Weidmüller. Modular terminal blocks with spring clamp connections - the Z Series - have been specially designed to meet customer requirements: compact design, surfaces with generous marking, integrated test contact, cross-connection options within the Z Series and with other Weidmüller modular terminal blocks. The Z Series terminals have a large clamping range and can accommodate one or two cross-connection channels. The standard plug-in cross-connections allow potentials to be distributed across any number of terminals. Features and benefits include availability with one, two, and three levels, spring clamp technology, and various color options.
