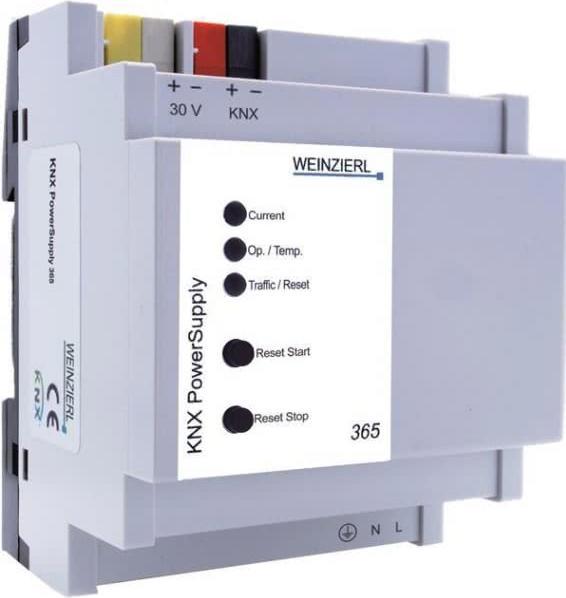

The KNX PowerSupply 365 is a 640 mA bus power supply with high efficiency and a compact footprint of only 4 units (72 mm). The device features an integrated bus choke and additionally provides an output for auxiliary power.

Three multicolored LEDs on the front indicate the device's status. They signal overload with a warning, overtemperature, telegram traffic, and the reset status. The two buttons can be used to reset the KNX line.

Technical Data

Mechanical Data

Housing: Plastic
Device for DIN rail mounting, Width: 4 modules (72 mm)
Weight: approx. 260 g

User Interface

Two buttons for resetting the KNX line
Two multicolor LEDs

Connections

Plug for external power supply 230 V AC
Connection for KNX TP (red/black)
Plug for auxiliary voltage output (yellow/white).
