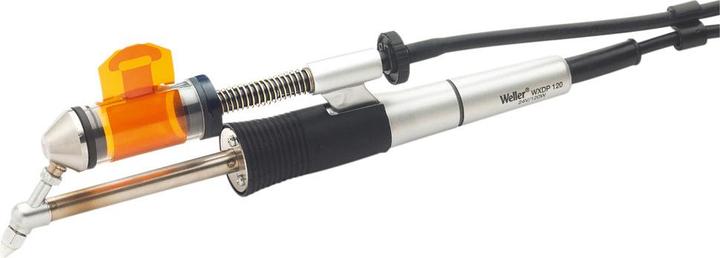

The Weller WXDP 120 desoldering iron is a fast and powerful high-performance desoldering tool. It is particularly well-suited for rework and repair on SMD or conventionally assembled printed circuit boards. The heating time is 35 seconds. Its high-quality sensor and heat transfer technology ensure precise temperature control. Thanks to the sensor, the desoldering iron only turns on when in motion. When not in use, the desoldering iron switches to standby mode.

Features:

• Compatible with power units WXD 2 and WXR 3
• Desoldering iron set with eccentric mounting
• Short heating time and set-back function
• One-handed tip change possible
• Programmable, intelligent WX desoldering iron
• Usable tip family XDS, XDSL

Scope of delivery:
1 piece WXDP 120 desoldering iron
1 piece XDS 1 suction nozzle, inner Ø 1.4 mm, outer Ø 2.5 mm
1 piece WDH 70 safety stand (only with 801221)
1 piece XDS 5 suction nozzle, inner Ø 1.8 mm, outer Ø 3.3 mm (only with 801221)
1 piece XDS 3 suction nozzle, inner Ø 1.0 mm, outer Ø 2.3 mm (only with 801221)
1 piece operating manual

Technical data:
Power: 120 W
Heating time: approx. 35 s
Temperature range: 100-450 °C
Weight: 350 g.
