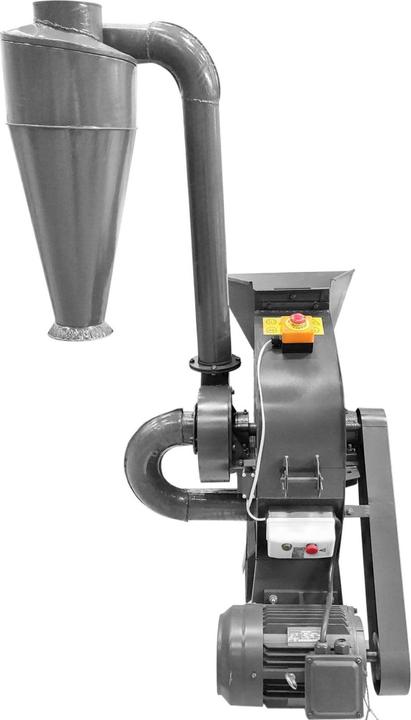

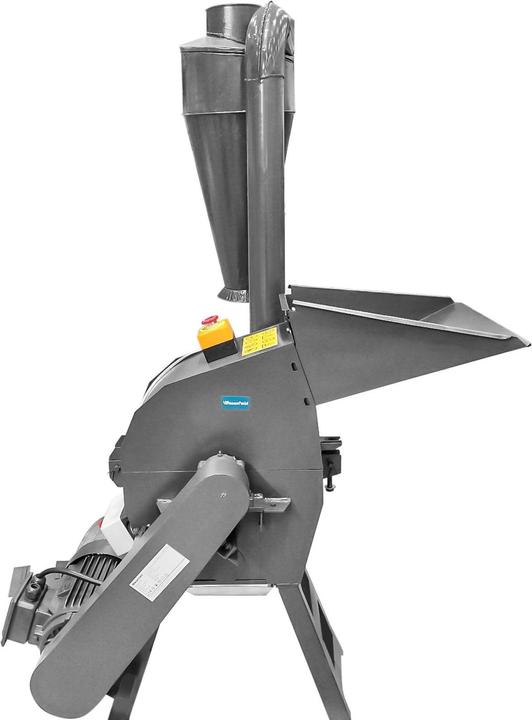

The hammer mill grinds grain and wood chips quickly and effectively. The hammer mill for pellet production impresses with its easy handling, a large filling funnel, and a robust construction, allowing you to produce and process large quantities of ground products. The stable footprint guarantees safe production at all times. With an output of 4 kW, the motor drives the 16 hammers in the mill, which reach a rotational speed of 2800 rpm. Thanks to the first-class performance values, you can achieve a production rate of 200 - 300 kg/h with the hammer mill. Note that the amount depends on the type of grain or raw material and the moisture content of the material. For best results, the humidity should not exceed 15%. The centrifugal forces that act on the grist during crushing drive the grains against the outer sieve. The size of the holes in the sieve determines how coarse your grinder will be. Hole sizes of 2 and 4 mm are available for the hammer mill. The finished grist is specifically filled with a cyclone.

Technical details:

• Phase range: 3-phase: 380 V
• Frequency: 50 Hz
• Material: carbon steel, cast iron
• Color: green
• Power max: 4 kW
• Production: 200 - 300 kg/h
• Sieve dimensions: 510 x 200 mm
• Hole size of the sieves: 2.4 mm
• Adjustable angle: 270°
• Number of hammers: 16
• Choice of mesh specifications: 2 - 10 mm
• Tolerance moisture content: 8 - 15%
• Rotation speed motor: 2800 rpm

Delivery contents:
Hammer mill WIE-PM-2700, cyclone, short metal tube, filling shaft, 2 sieves (hole sizes 2/4 mm), operating instructions.
