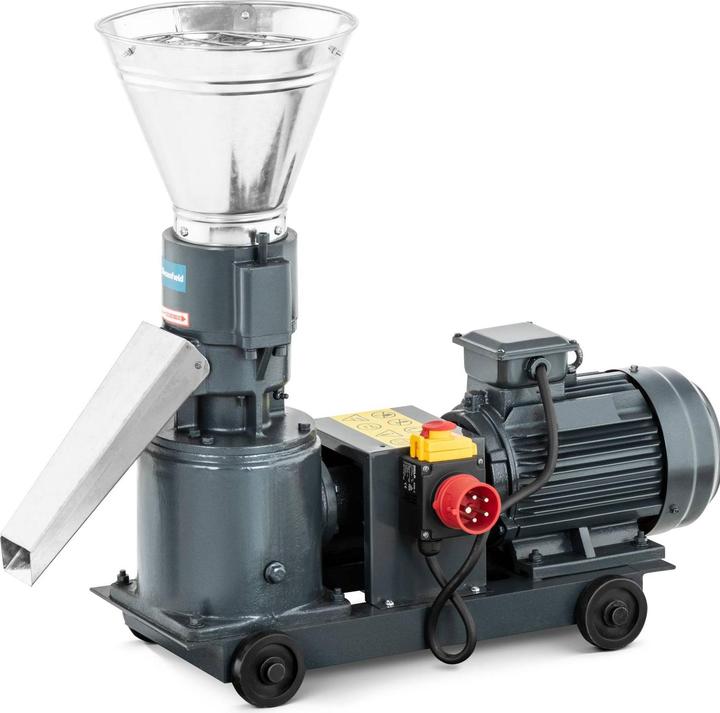

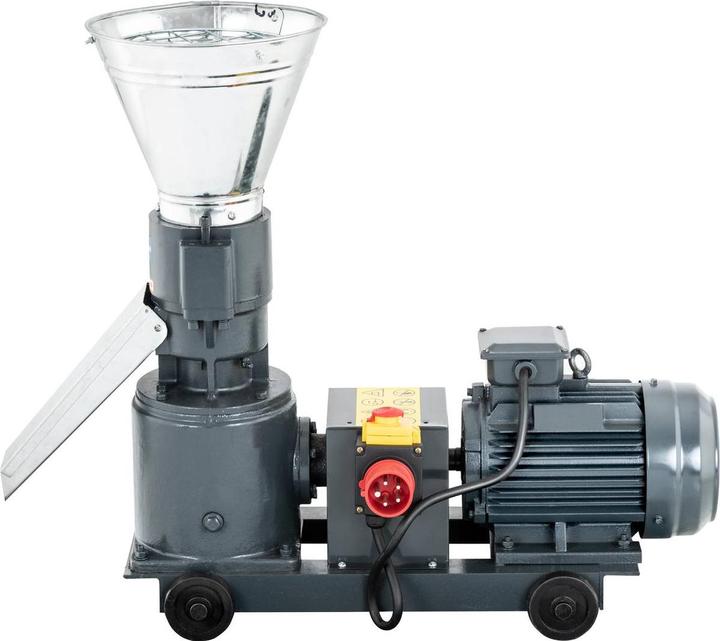

Pellet Machine - max. 100 kg/h - Ø 120 mm

Whether you want to produce large quantities of pellets for feeding, fertilization, or heating cost-effectively, the WIE-PM-500 pellet machine from Wiesenfeld, experts in high-quality agricultural supplies, allows you to produce up to 100 kg of feed pellets per hour or process up to 60 kg/h of wood shavings. The material is pressed through a 120 mm nozzle under high pressure. The pressure and heating up to 60 to 80 °C create densely pressed pellets, which can have a diameter ranging from 2.5 to 10 mm due to the seven interchangeable die plates. This heating process ensures that the pellets have a longer shelf life.

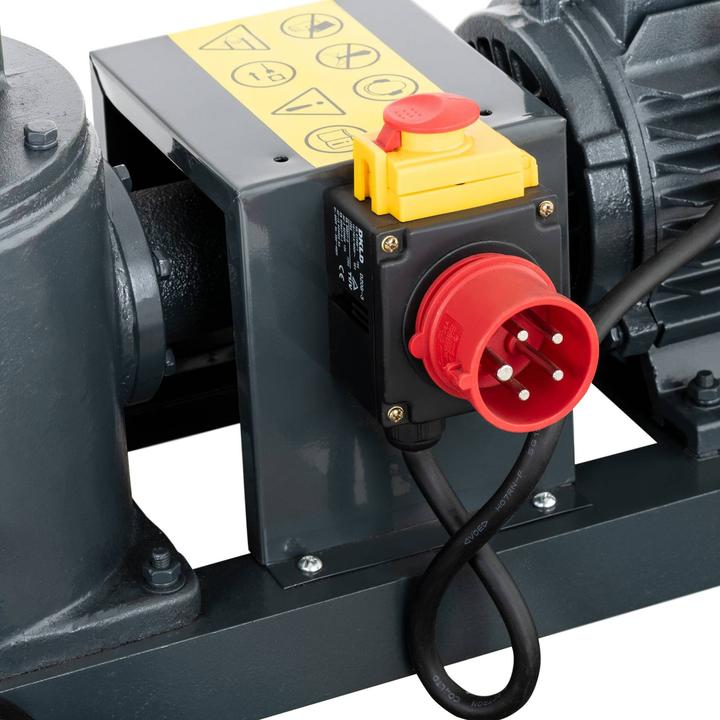

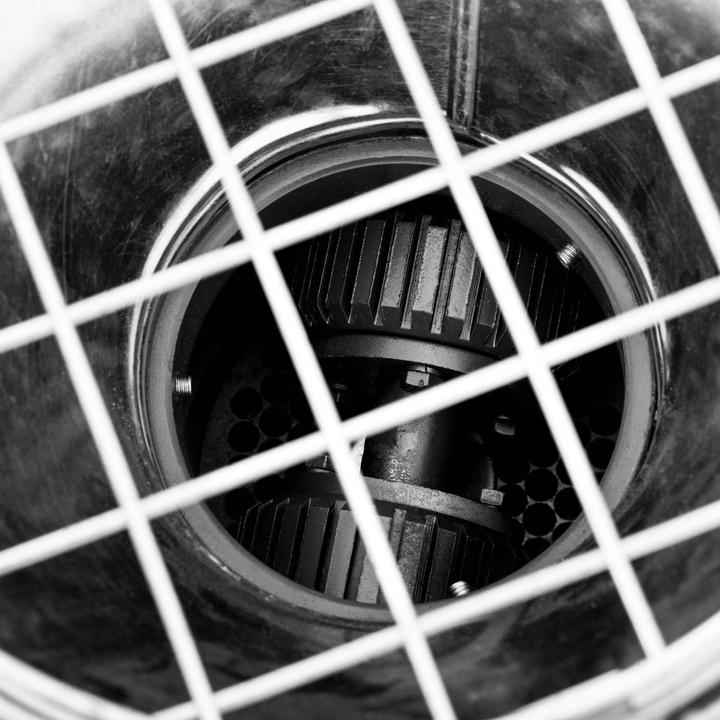

The feed pellet machine, which is very mobile thanks to four sturdy wheels, is powered by a 3,000 W electric motor. The intuitive machine is equipped with a centrally located emergency stop button that is easily accessible at all times. A protective grid (grid 37 x 37 mm) in the hopper prevents foreign objects from falling into the press or someone from reaching in with their hand and getting seriously injured.

Technical Details:
Model: WIE-PM-500
Voltage / Frequency: 380 V / 50 Hz
Material: Cast iron, steel alloy
Power: 3,000 W
Capacity, Feed: 60 - 100 kg/h
Capacity, Wood Shavings: 40 - 60 kg/h
Diameter, Die: 120 mm
Number of Dies: 1
Diameter, Holes in Dies: 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm
Operating Temperature: 60 - 80 °C
Diameter, Hopper: 27.5 cm
Speed: 1,430 rpm
Operating Cycle: 24 h
Emergency Stop Button: Yes
Protection Class: IP55

Included in Delivery:
Pellet Machine WIE-PM-500
7 Die Plates

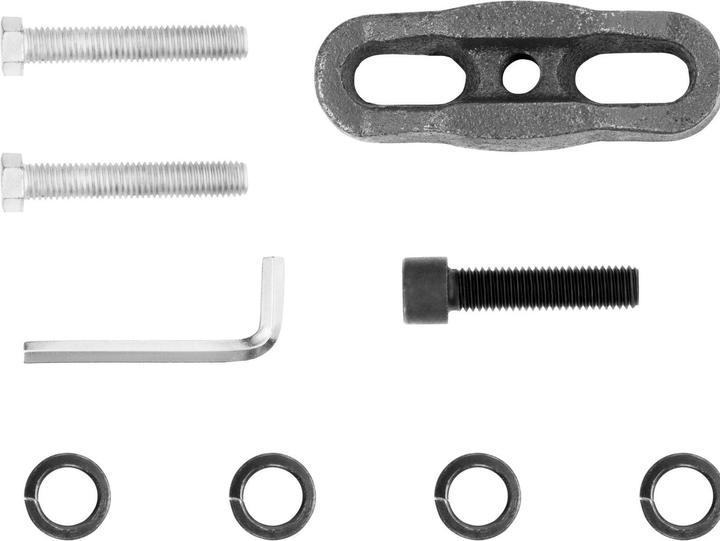

Assembly Material
Operating Manual.
