Best Busch-Jaeger products in the Actuator category

On this page you'll find a ranking of the best Busch-Jaeger products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Busch-Jaeger Sensor/switch actuator 6251/8.8

Busch-Jaeger Sensor/Switch Actuator 6251/8.8

Manufacturer: Busch-Jaeger
Designation: Sensor/Switch Actuator 8/8-fold REG Actuator
Type: 6251/8.8
KNX Bus System:
no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Bidirectional Radio: yes
Mounting Type: REG
Width in Division Units: 8
Local/Manual Operation: no
With LED Display: no
Number of Digital Inputs: 8
Max. Switching Power: 1200 W
Output Power: 1380 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 8
Max. Switching Current: 6 A
Rated Current: 6 A
Rated Operating Voltage: 230 V
Multiple Phases Connectable: yes
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 64.5 mm
Modular Expansion Possibility: no
Protection Class (IP): IP20

Busch-Jaeger Sensor/Switch Actuator 6251/8.8: additional details
Switch actuator/binary input 8-fold for Busch-free@home®. Combination device with 8 binary inputs and 8 switch actuators. Conventional switches or auxiliary contacts can be connected to 8 channels. The information from the contact query can be used to control Busch-free@home® actuators or to capture status information. The contact query voltage is provided by the device itself. Maximum cable length with a cross-section of 1.5 mm² < 100 m. For switching 8 independent 230 V~ consumers. No additional commissioning software is required. Programming is only possible with bus voltage applied via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online operating instructions.
EAN: 4011395180396.


Busch-Jaeger Sensor/switch actuator 6251/8.8 (Switch actuator)
Actuator
EUR384,13

Busch-Jaeger Sensor/switch actuator 6251/8.8

Switch actuator

2. Busch-Jaeger SD/S2.16.1 Switching SD/S2.16.1 /dimming actuator, 2f, 16A, REG

REG devices for switching and dimming via ABB i-bus® for 2, 4, or 8 independent lighting groups from electronic ballasts with a 1-10V control interface. Each channel can switch the supply voltage of the ballasts on and off via ABB i-bus® or manually using potential-free load relays (16A-AC1). Switch status indication is available. No power supply required. KNX.

Busch-Jaeger SD/S2.16.1 Switching SD/S2.16.1 /dimming actuator, 2f, 16A, REG (Dimming actuator)
Actuator
EUR207,25

Busch-Jaeger SD/S2.16.1 Switching SD/S2.16.1 /dimming actuator, 2f, 16A, REG

Dimming actuator

3. Busch-Jaeger IP switching actuator

Busch-Jaeger IP Switch Actuator H8304-03

Manufacturer: Busch-Jaeger
Designation: IP Switch Actuator
Type: H8304-03
Function: Switching
Installation Technology:
Network Technology
Material: Plastic
Interface Type: LAN
Mounting Type: DIN Rail
Width: 65 mm
Height: 90 mm
Depth: 72 mm
Width in Division Units: 4

Additional Details:
For connecting an electric door opener or for switching lights. Connection option for an electric door opener (DC: 12 V DC, 4 A pulse, max. 500 mA continuous or AC: 12 V AC, 50 Hz, max. 500 mA continuous). Potential-free contact: 230 V AC, 3 A or 30 V DC, 3 A. Connection option for an external door sensor to detect the door status after opening. Connection option for an external door button for door opening. Switching duration for door opener and light adjustable via IP Touch 7 or Smart Access Point. Power supply via Power-over-Ethernet (PoE) 802.3af.


Busch-Jaeger IP switching actuator (Switch actuator)
Actuator
EUR161,70

Busch-Jaeger IP switching actuator

Switch actuator

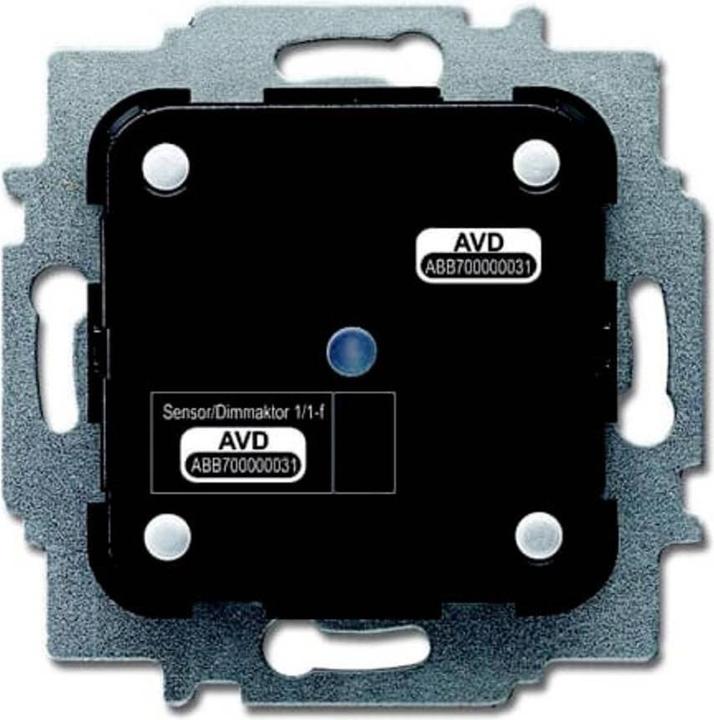

4. Busch-Jaeger Sensor/Dimming actuator

Busch-Jaeger Sensor/Dimmaktor 6212/1.1

Manufacturer: Busch-Jaeger
Designation: Sensor/Dimmaktor 1/1-channel
Type: 6212/1.1
Other bus systems: free@home
Execution:
Dimmaktor
Mounting type: Flush-mounted
With bus coupling: yes
Local/manual operation: yes
With LED display: yes
Number of outputs: 1
Output power: 10 W
Load type: universal
Voltage: 230 V
Frequency: 50 Hz
Protection class (IP): IP20
Minimum depth of device box: 40 mm

The Busch-Jaeger Sensor/Dimmaktor 6212/1.1 is suitable for dimming 230 V consumers. It features an integrated universal dimmer for controlling LEDs, incandescent lamps, 230 V halogen bulbs, low-voltage halogen lamps with conventional or electronic transformers, as well as dimmable halogen energy-saving lamps. The dimming function is available without prior programming (pre-configured). The configuration can be changed later via the web interface (groups, scenes).

It can be connected with the 1-channel switches 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx, and 6234-10-xxx. The bus connection is made via the included bus terminal. When installing in the flush-mounted box, care must be taken to maintain spatial separation between the bus and the 230 V installation cable. If the minimum distance is not met, electronic boxes or insulating sleeves should be used.

Programming is only possible with bus voltage applied via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online user manual in the current online catalog.

EAN: 4011395180020.


Busch-Jaeger Sensor/Dimming actuator (Dimming actuator)
Actuator
EUR144,–

Busch-Jaeger Sensor/Dimming actuator

Dimming actuator

5. Busch-Jaeger Room Controller

Basic device for equipping a maximum of 8 module devices, such as blind actuator module, switching actuator module, dimming actuator module, etc. 24 V DC, for direct connection to the 24 V DC modules. If needed, please refer to the current online catalog for software and description.

Busch-Jaeger Room Controller (Heating actuator)
Actuator
EUR373,77

Busch-Jaeger Room Controller

Heating actuator

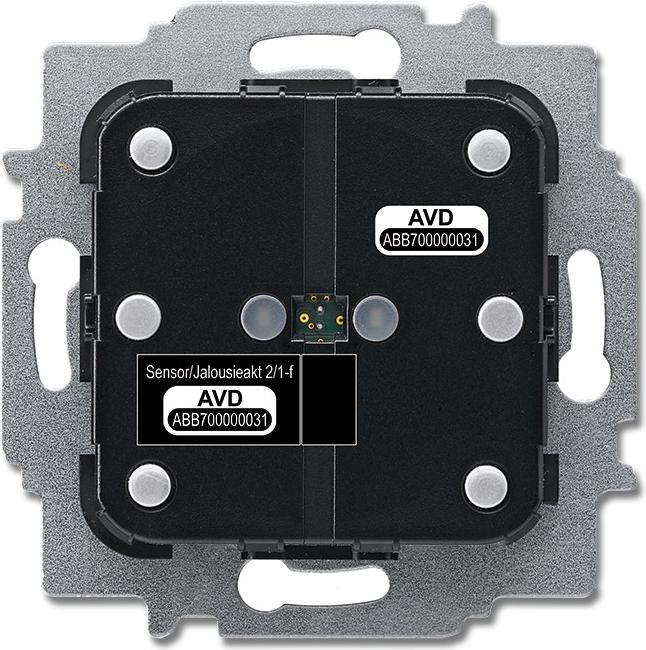

6. Busch-Jaeger Sensor/shutter actuator 6213/2.1

Busch-Jaeger Sensor/Shutter Actuator 6213/2.1

Manufacturer: Busch-Jaeger
Designation: Sensor/Shutter Actuator 2/1-fold
Type: 6213/2.1
KNX Bus System: no

KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Mounting Type: Flush-mounted
With Bus Coupling: no
Bus Module Removable: no
Local/Manual Operation: yes
With LED Display: no
Number of Inputs: 1
Switching Current Resistive: 4 A
Max. Switching Power: 920 W
Max. Number of Shutter Outputs: 1
Type of Current: AC
Protection Class (IP): IP20
Min. Depth of Device Box: 32 mm

The Busch-Jaeger Sensor/Shutter Actuator 6213/2.1 is a 2/1-fold shutter actuator for Busch-free@home®. It is suitable for controlling shutter or awning motors and features an integrated shutter actuator. The shutter function is available without prior programming (left sensor channel preconfigured). Configuration can be changed later via the web interface (groups, scenes). The right sensor channel is used for programming additional functions (groups, scenes).

The bus connection is made via the included bus terminal. When installing in the flush-mounted box, ensure spatial separation between the bus and the 127 V/230 V installation cable. If the minimum distance is not maintained, electronic boxes or insulating sleeves should be used. Programming is only possible with bus voltage applied via the web interface of the System Access Point. For further information on commissioning and operation, please refer to the system manual and the online user guide.

EAN: 4011395180068.


Busch-Jaeger Sensor/shutter actuator 6213/2.1 (Shutter actuator)
Actuator
EUR109,90

Busch-Jaeger Sensor/shutter actuator 6213/2.1

Shutter actuator

7. Busch-Jaeger Heating actuator

Busch-Jaeger heating actuator 6-fold 6254/0.6

Manufacturer: Busch-Jaeger
Designation: Heating actuator 6-fold REG
Type: 6254/0.6
Other bus systems: free@home

Mounting type: REG
Width in pitch units: 4
With bus coupling: Yes
Actuating variable continuous: Yes
Actuating variable switching: No
Valve protection function: Yes
Max. switching current (ohmic load): 1 A
Number of outputs: 6
Max. output current: 0.16 A
Output current: 0.16 A
Switching voltage: 24 V
Protection class (IP): IP20

For controlling thermoelectric actuators in heating/cooling systems. Up to 3 actuators 6164/10-102 or 1 actuator 6164/11-102 can be connected per output. The outputs are short-circuit and overload protected. The bus connection is made via the enclosed bus terminal. Programming is only possible with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalog. EAN: 4011395180419.


Busch-Jaeger Heating actuator (Heating actuator)
Actuator
EUR188,05

Busch-Jaeger Heating actuator

Heating actuator

8. Busch-Jaeger BJ 6211/2.1 Sensor/switch actuator 2/1-fold

Busch-Jaeger Sensor/Switch Actuator 6211/2.1

Manufacturer: Busch-Jaeger
Designation: Sensor/Switch Actuator 2/1-fold
Type: 6211/2.1
KNX Bus System: no
KNX
Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Mounting Type: Flush-mounted
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 2300 W
Max. Number of Switching Outputs: 1
Max. Switching Current: 10 A
Rated Current: 10 A
Rated Operating Voltage: 230 V
Different Phases Connectable: no
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 32 mm
Modular Expansion Option: no
Protection Class (IP): IP20

The Busch-Jaeger Sensor/Switch Actuator 6211/2.1 is a 2/1-fold sensor/switch actuator for Busch-free@home®. It is suitable for switching 127 V~/230 V~ consumers and features an integrated switch actuator. The switching function is available without prior programming (left sensor channel pre-configured). Configuration can be changed later via the web interface (groups, scenes). The right sensor channel is intended for programming additional functions (groups, scenes).

The connection is made via rocker switch 2-fold 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx, and 6234-2x-xxx. The bus connection is made via the included bus terminal. When installing in the flush-mounted box, care must be taken to maintain spatial separation between the bus and the 127 V/230 V installation cables. If the minimum distance is not maintained, for example, electronic boxes or insulating sleeves should be used.

Programming is only possible when bus voltage is applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online user manual.

EAN: 4011395179994.


Busch-Jaeger BJ 6211/2.1 Sensor/switch actuator 2/1-fold (Switch actuator)
Actuator
EUR95,66

Busch-Jaeger BJ 6211/2.1 Sensor/switch actuator 2/1-fold

Switch actuator

9. Busch-Jaeger Series/shutter actuator

Busch-Jaeger Series/blind actuator 6705-101 Manufacturer: Busch-Jaeger Designation: Series/blind actuator flush-mounted Type: 6705-101 Suitable for shutter switches: yes Suitable for blind switches: yes Suitable for blind/roller shutter switches: yes Suitable for switches: yes In housing: yes Power supply: 230 V AC Switching operation: yes Number of relays: 2 Mounting type: other Material: Plastic Material grade: thermoplastic Halogen-free: yes Surface protection: untreated Surface finish: matt Mounting type: other Color: white RAL number (similar): 9016 Suitable for protection class (IP): IP20 Radio frequency: 868 MHz Modulation: VHF (FM)Busch-Jaeger serial/blind actuator 6705-101: more detailsFor switching electrical loads by radio. For driving and adjusting blinds/shutters and awnings by radio. Functions via radio: series switch, blind switch and light scene control. Functions via extension: serial switch, blind switch and send radio telegram. Operation via conventional pushbuttons (2020 US, 2012/6 UK) possible. Operation of the extension (via conventional pushbutton) leads to switching of the output and sending of a radio telegram. Actuation of the extension in the serial switch function: alternate sending of an ON/OFF telegram. Actuation of the extension in the shutter switch function: Extension 1 sends UP telegram and extension 2 sends DOWN telegram. For Waveline 6731-xxx, 6732-xxx and 6733-xxx wall transmitters. For handheld transmitter WaveLINE 6780. In the blind switch function: running time 3 min. repeater function can be activated to increase the range. For universal mounting or installation. 3-wire connection technology (neutral conductor required). For mounting in (deep) flush-mounted boxes according to DIN 49073. Can be controlled via up to 32 transmitter addresses. Transmitting/receiving frequency: 868 MHz. Range: approx. 100 m (free field). If required, please refer to the current online catalog for further information. , EAN: 4011395182659.

Busch-Jaeger Series/shutter actuator (Shutter actuator)
Actuator
EUR139,28

Busch-Jaeger Series/shutter actuator

Shutter actuator

10. Busch-Jaeger Binary input Wavel-LINE 6725

The WaveLINE 6725 binary input from Busch-Jaeger is a versatile heating actuator designed for controlling electrical devices and blinds. With the capability to manage two channels, this device offers a flexible solution for automating lighting and blinds in residential and commercial spaces. The WaveLINE 6725 allows control via conventional switches and sends radio telegrams upon activation, enabling easy integration into existing systems. The various operating modes allow for switching, dimming, and controlling lighting scenes, providing customization to meet user needs. Additionally, the binary input can be installed in flush-mounted boxes and is suitable for indoor use. With a range of up to 100 meters in open field, it ensures reliable communication.

- Five operating modes: switching, dimming, blind control, lighting scene control, and permanent switching
- Compatible with conventional switches and WaveLINE actuators for enhanced functionality
- Repeater function can be activated to extend range
- Installation in flush-mounted boxes according to DIN 49073 is possible
- Wireless communication at a frequency of 868 MHz.


Busch-Jaeger Binary input Wavel-LINE 6725 (Switch actuator, Dimming actuator)
Actuator
EUR83,14

Busch-Jaeger Binary input Wavel-LINE 6725

Switch actuator, Dimming actuator
