Best selling Cable joints from Wago
Here you’ll find the best Cable joints from Wago. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular Wago options. This page always stays fresh and updates automatically.
1. Wago Through connector
Through connector of the 221 series. Slim design and tool-free conductor connection. A groundbreaking conductor connection for all conductor types from 0.2 to 4 mm² - unmatched in simplicity, speed, and safety. The new through connector of the 221 series with lever combines all the known advantages of the 221 connection terminal series in a sleek design: a universal conductor connection that is completely tool-free thanks to lever technology and provides visibly secure conductor contact.
Where multipolarity is required, adapters offer users individual degrees of freedom for the modular, flexible construction of up to 5 fixed-position poles in one adapter - whether with or without strain relief, on mounting rails with locking feet, for screwing, gluing, binding, or hanging.
As a universal connection medium, the through connector of the 221 series not only enhances known installation applications with limited space but also opens up a variety of new applications: for example, laboratory and test setups, production testing fields, lighting connections in suspended ceilings, extension of speaker cables, and junction boxes in industrial applications.
The through connector is available in two versions, both of which have EN and UL approvals: in the version with a transparent cover for conductor cross-sections from 0.2 to 4 mm² for all common applications, as well as in the version primarily used in North America with a white cover for the extended connection range with AWG-12 conductor. Fixed-position and multipolar: With the adapters for the 221 series through connector, users gain individual degrees of freedom for the modular, flexible construction of up to 5 fixed-position poles in one adapter - whether with or without strain relief, on mounting rails with locking feet, for screwing, gluing, binding, or hanging.
2. Wago Connecting terminal 221 series
The Wago connection terminal of series 221 is a versatile and user-friendly solution for the secure connection of electrical conductors. It is suitable for all types of conductors and offers easy handling through the lever mechanism, which facilitates the insertion and securing of the conductors. This connection terminal is specifically designed for applications in potentially explosive environments (Ex e) and can be used with conductor cross-sections of up to 4 mm². The transparent housing color allows for a visual inspection of the connections, while the high operating temperature of up to 105 °C ensures reliable performance under demanding conditions. The terminal is available in various pole numbers and provides comfortable installation for single, fine, and multi-stranded conductors. It is ideal for installers and equipment manufacturers who require a quick and secure connection.
- Easy handling through lever mechanism for quick insertion and securing of conductors
- Suitable for applications in potentially explosive environments (Ex e)
- Compatible with conductor cross-sections from 0.14 to 4 mm²
- High operating temperature of up to 105 °C for reliable performance
- Individual fixations and standard-compliant installation through mounting adapters.
3. Wago 221-482
The Wago 221-482 connection terminal is a versatile and user-friendly solution for securely connecting electrical conductors. It is suitable for all types of conductors and offers easy handling through its lever mechanism, which facilitates the insertion and securing of the conductors. This connection terminal is specifically designed for applications in potentially explosive environments (Ex e) and can be used with conductor cross-sections ranging from 0.14 to 4 mm². With a maximum operating temperature of 105 °C and the ability to connect multiple conductors, it is ideal for demanding installations. The transparent housing color allows for easy visual inspection of the connections, while compliance with installation standards is supported by a mounting adapter.
- Suitable for applications in potentially explosive environments (Ex e)
- Easy handling through lever mechanism
- Compatible with single, fine, and multi-stranded conductors
- Secure installation of long cables with larger conductor cross-sections
- Individual fixations for flexible installations.
4. Wago Connection clamp set
The WAGO connection terminal set 887-952 is a comprehensive 229-piece assortment, consisting of 2-, 3-, and 5-conductor terminals as well as mounting adapters from the proven series 221. It offers a modern solution for safe and quick conductor connections. This set guarantees quality for professional electrical installations in all areas.
5. Wago Dosenklemme Mikro
Wago's Mikro box terminal block, type 243-208, is a highly functional connection terminal block designed for use with solid conductors. This terminal provides a reliable connection for electrical applications and is designed for a rated voltage of up to 100 V and a rated current of 6 A. With a maximum temperature of 85 °C and a minimum temperature of -25 °C, it is suitable for a wide range of environments. The terminal block is made of robust polyamide and offers high resistance to mechanical stress. It is able to accommodate conductor cross-sections from 0.6 mm² to 0.8 mm² and has 8 poles, making it ideal for complex wiring applications. The scope of delivery includes 50 pieces, which is a cost-effective solution for projects with multiple connections.
6. Wago Connection clamp
Connection terminal with levers for all types of conductors, maximum 4 mm², 5 conductors. Housing color is transparent, with a maximum ambient temperature of 85 °C (T85).
- Easy handling: lever open, insert conductor, lever closed
- Available as 2-, 3-, and 5-conductor terminals
- Comfortable conductor connection from 0.14 to 4 mm²
- Installation of single, fine, and multi-stranded conductors
- Time-saving for installers and equipment manufacturers
- Quick installation of devices with higher power requirements
- Safe routing of long cables with larger conductor cross-sections
- Mounting adapter for compliant installation
- Individual fixations possible.
7. Wago Connector for EIB applications
Series: 243
Mounting Type: Cable Mounting
Pitch: 5.75 mm
Rated Current: 6 A
Connection Type: Plug-in
Gender: Female
Material: Nylon 6.6
Operating Voltage: 250 V
The micro connection terminal block of the Wago 243 series has been developed by Wago for solid conductors with small cross-sections. The solid conductors can have a connection cross-section ranging from 0.6 mm to 0.8 mm. The connector of the 243 series can be mounted on DIN rails or flat surfaces, allowing for clear labeling on the terminal blocks. Due to its compact design, the connector is ideal for applications in the low voltage range, where it is designed as a plug-in terminal.
Features and Benefits:
- Micro Push Wire connection terminal blocks
- Wire size range from 0.6 to 0.8 mm
- Chrome-nickel spring steel terminals.
8. Wago Connector
Series: 243 Mounting type: Cable mounting. Grid: 5.75 mm. Rated current: 6 A. Connection type: Plug-in. Gender: Female. Material: Nylon 6.6. Operating voltage: 250 V. The Wago 243 series micro junction box terminal block was developed by Wago for solid conductors with small conductor cross-sections. The solid conductors can have a connection cross-section of 0.6 mm to 0.8 mm. The 243 series connector can be mounted on mounting rails or flat surfaces and enables clear labelling on the terminal blocks. Thanks to its compact design, the connector is ideal for applications in the low-voltage range, where it is designed as a pluggable terminal block.
9. Wago Terminal strip 5 mm tension clamp Assignment: L Grey 260-152 100 pcs (260-152)
The WAGO terminal block 260-152 is a high-quality terminal strip designed for connecting electrical wires. This 2-conductor terminal block provides a reliable and secure connection for applications with a sheet thickness of 0.6 to 1.2 mm. It features snap-in feet for easy installation. The terminal block is suitable for wire cross-sections of up to 1.5 mm² and utilizes the proven CAGE CLAMP® technology, ensuring a simple and secure connection of the wires. With a mounting hole diameter of 3.5 mm, this terminal block is versatile and suitable for various applications in electrical installations. The gray color ensures clear identification and integration into existing systems.
- 2-conductor terminal block without push button
- Snap-in feet for easy installation
- Suitable for sheet thicknesses of 0.6 to 1.2 mm
- Uses CAGE CLAMP® technology for secure connections.
Cable joints
EUR90,16
Wago Terminal strip 5 mm tension clamp Assignment: L Grey 260-152 100 pcs (260-152)

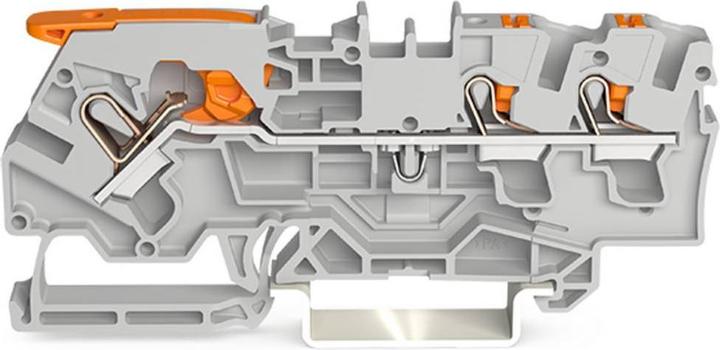

10. Wago Through terminal
The Wago through terminal block is a high-quality terminal designed for the safe and reliable connection of electrical wires. It features a 3-wire configuration and is equipped with a lever and push button, making handling and installation easier. This terminal is suitable for cable cross-sections from 1.5 mm² to 4 mm² and allows for simple connections through the Push-in CAGE CLAMP® technology. The test opening facilitates easy verification of electrical connections, while the side and center labeling enables clear identification of the terminals. The terminal is compatible with mounting on rail sizes of 35 x 15 mm and 35 x 7.5 mm and meets various standards, underscoring its reliability and safety.
- Push-in CAGE CLAMP® technology for easy installation
- Test opening for checking electrical connections
- Side and center labeling for clear identification
- Suitable for rail sizes of 35 x 15 mm and 35 x 7.5 mm
- Complies with standards such as CCA, CSA, UL, and KEMA/KEUR.
