Best Defender products in the Cable trunking category
On this page you'll find a ranking of the best Defender products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Defender MIDI 5 2D SET BLU Midi

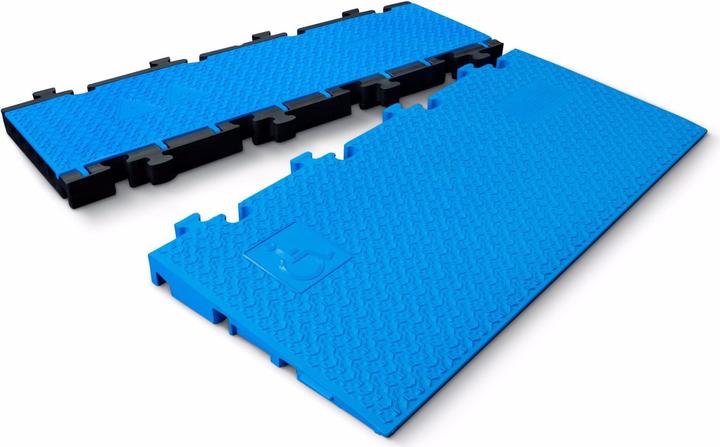

Defender® 2D M Set blue, modular system, wheelchair accessible
To ensure optimal accessibility for wheelchair users, the modular cable bridge Defender® 2D M Blue has been developed based on our popular Defender® MIDI cable bridge. It consists of a blue middle section compatible with MIDI and two flat blue ramps that can be expanded and combined in any way, both in length and width. The handling is extremely simple.
Defender® MIDI 5 2D Set with blue cover
In recent years, the issue of accessibility has increasingly come into focus for event organizers and authorities. With conventional cable bridge systems, a compromise between barrier-free access and drivability often had to be made. The new Defender® 2D M Blue changes that: Each middle section is equipped with two fully traversable and simultaneously wheelchair-accessible ramps with a 6° incline. The gentle slope makes it easy for wheelchair users to cross, and it is stable enough to support forklifts and trucks.
Effortless walkability and safety are thus ensured even in areas where five channels are not sufficient, such as near power generators or the FOH. Audio, lighting, and power cables can be laid individually, effortlessly, and safely. The completely symmetrical design of the middle sections simplifies assembly, and you will never have to search for the right attachment again. Detailed assembly plans are also not required.
The connections have been designed to provide enough play for easy assembly while still offering sufficient stability. The system can be expanded in length and width with the optionally available items 869300blu and 86301blu.

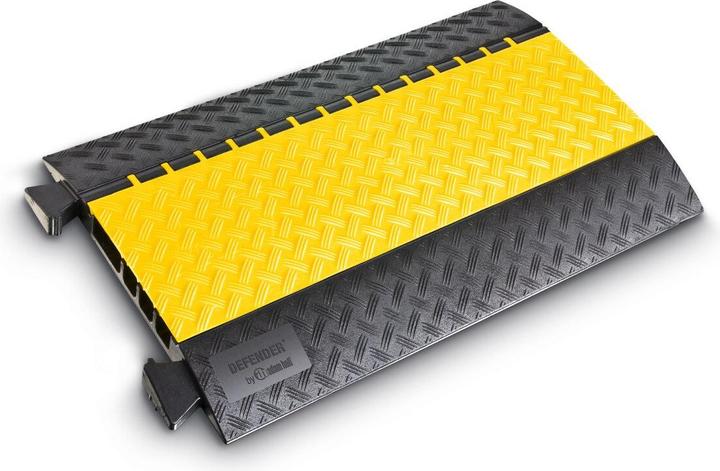

2. Defender 3 2D R

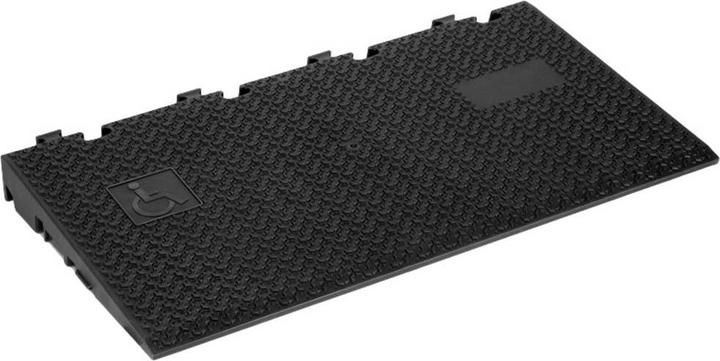

Defender 3 2D Modular System, wheelchair accessible
To ensure optimal accessibility for wheelchair users, the modular cable bridge Defender 3 2D has been developed based on our popular Defender 3 cable bridge. It consists of a central section and a flat ramp that can be expanded and combined in any way, both in length and width, with extremely simple handling.
In recent years, the issue of accessibility has increasingly come into focus for event organizers and authorities. With conventional cable bridge systems, a compromise often had to be made between wheelchair accessibility and traversability. The new Defender 3 2D changes that: a fully traversable and wheelchair-friendly ramp with a 6° incline can be attached to each central piece. The gentle slope makes it easy for wheelchair users to cross, and it is stable enough to be driven over by forklifts and trucks.
The system can be expanded in length and width as needed. Effortless walkability and safety are thus ensured even in areas where three channels are insufficient, such as near power generators or the FOH. Audio, lighting, and power cables, as well as hoses, can be laid out individually, easily, and safely. The completely symmetrical design of the central sections simplifies assembly, and you will never have to search for the right attachment part again. Detailed assembly plans are also not required.
Thanks to this symmetry, optimal stability in both longitudinal and transverse directions can be achieved by laying central sections and ramps in a half-bond pattern, while eliminating losses such as adapters and connectors. The connections have been designed to provide enough play for easy assembly while still offering sufficient stability.

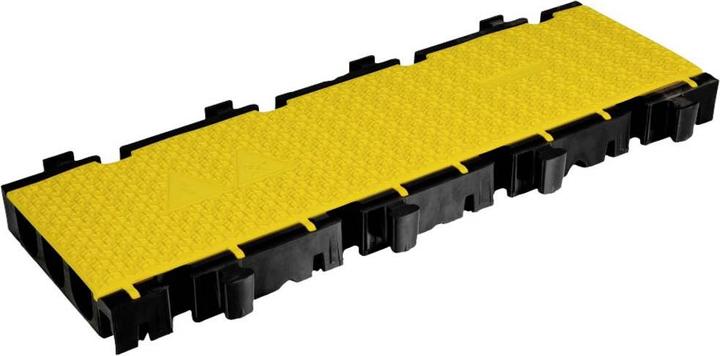

3. Defender 3 2D M
Defender by Adam Hall cable bridge centre section 869002. Polyurethane, black/yellow. Number of channels: 3.

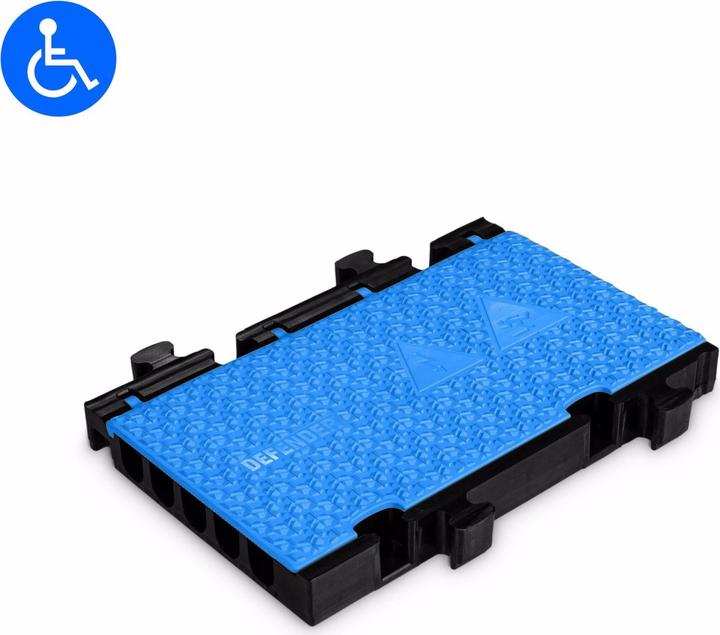

4. Defender MIDI 5 2D BLU HV Midi
Defender by Adam Hall cable bridge centre section 869350BLU polyurethane black/blue. Number of channels: 5.

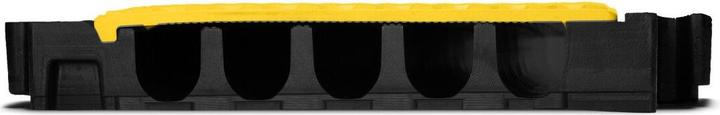

5. Defender MIDI 5 2D HV Midi
Defender by Adam Hall cable bridge centre section 869350. Polyurethane, black/yellow. Number of channels: 5. Length: 4.75 m.

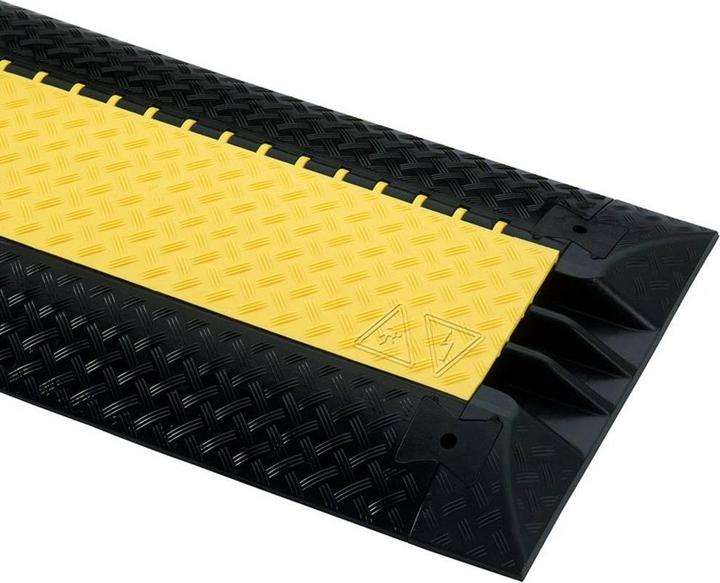

6. Defender Cable bridge 3 ER End piece
Defender 3 ER end piece, accessory type: cable bridge.
7. Defender nano
6 narrow cable channels - Discreet cable protection for indoor and outdoor use. Defender NANO cable bridges are particularly flat and can be easily crossed with a wheelchair. They are suitable for a wide range of indoor and outdoor applications and are available with both yellow and black covers. These cable bridges feature 6 cable channels for clean, organized cable routing, T-connectors, and a load capacity of 2 tons over an area of 20 x 20 cm. They allow not only pedestrian traffic but also light vehicles, trolleys, and - thanks to their flat profile - even forklifts and pallet trucks. Separately available end caps (male/female) ensure safe entry and exit of cables. The Defender NANO cable bridges are used in events such as carnivals, trade shows, exhibitions, shopping centers, warehouses, as well as stages, studios, and broadcasting stations. Not suitable for road traffic. Mark your cable bridges! You have the option to customize all Defender cable bridges with your company logo starting from an order quantity of just 30 pieces per model. The corresponding template is available in the download area. Contact us for more information.
8. Defender Midi 4C
3 medium-sized cable channels - 1 large channel for fire hoses. The DEFENDER® MIDI 4C cable bridge features three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution for laying a pressure hose parallel to individual audio, lighting, and/or power cables. With its integrated connectors, flat profile, and a load capacity of 5 tons over an area of 25 x 30 cm (as with the DEFENDER® MIDI system), MIDI 4C cable bridges are suitable for a variety of applications such as heavy-duty traffic, construction sites, warehouses, shopping centers, trade fairs, exhibitions, and carnival and music events. Customize your cable bridges! You have the option to personalize all DEFENDER® cable bridges with your company logo starting from an order quantity of just 30 pieces per model. The corresponding template is available in the download area above. Contact us for more information.

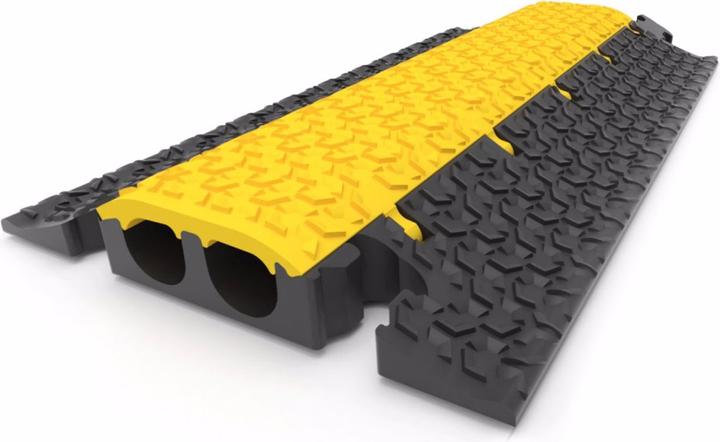

9. Defender MICRO 2 cable bridge
The compact Defender® MICRO cable bridge is ideally suited for use both indoors and outdoors, such as for exhibitions, trade fairs, shopping centers, stages, or studios. It features two 35 x 30 mm cable channels for high-voltage cables and water hoses. With a load capacity of 2 tons per 20 x 20 cm area, MICRO cable bridges can support smaller trucks, vehicles, trolleys, bicycles, wheelchairs, and pedestrians. The special slip and tread resistance is ensured by the LaserGrip® surface with its unique structure and design. Extremely shatterproof TPU material guarantees the durability of the robust cable bridge.
Even more safety is provided by the new 3D LaserGrip® surface. The innovative design of the 3D LaserGrip® surface significantly increases slip and tread resistance. Due to the special shaping and surface structure, the risk of shifting an entire line of Defender® MICRO cable bridges is greatly reduced, even when driven over by heavy vehicles.
Mark your cable bridges! You have the option to customize all Defender cable bridges with your company logo starting from an order quantity of just 30 pieces per model. The corresponding template is available in the download area. Feel free to contact us about this.
- Especially slip and tread resistant 3D LaserGrip® surface
- Ergonomic design for improved drive-over and walkability
- Patented self-cleaning hinge and convenient locking system
- 2 channels of 35 x 30 mm for high-voltage cables and water hoses
- Load capacity approx. 2 t / 20 x 20 cm
- Fire protection class B2 (DIN 4102) DEKRA certified (DIN 31000, EN 61537)
- Resistant to oil, acid, gasoline, and short-term contact with solvents
- Dimensions 1005 x 273 x 45 mm, weight approx.

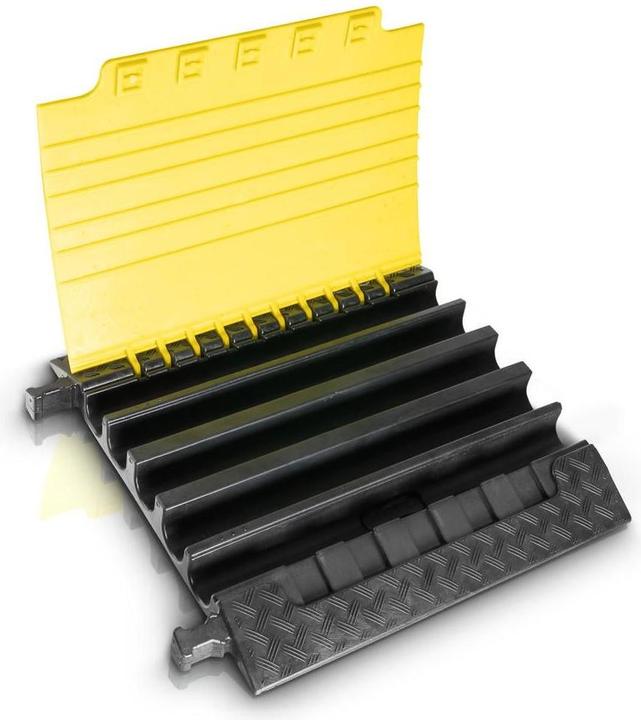

10. Defender XXL
5 XXL Channels - The Heavy-Duty All-Rounder Defender XXL Heavy-Duty Cable Bridges are designed for extremely high loads and feature 5 large cable and hose channels, three of which are for fire service C-hoses (only up to 62 mm in diameter - no couplings) as well as high-voltage cables. Integrated connection pins allow for quick and easy coupling of individual elements into a stable cable bridge line. The separately available end caps ensure safe entry and exit of the cables. With a load capacity of 5 tons over an area of 25 x 30 cm, Defender XXL cable bridges are the ideal solution for heavy-duty traffic, construction sites, warehouses, trade fairs, and for carnival and music events. Integrated handles for optimal handling. Customize your cable bridges! You have the option to personalize all Defender cable bridges with your company logo starting from an order quantity of just 30 pieces per model. The corresponding template is available above in the download area. Contact us for more information.
