Best selling Charging accessories for electric cars from Schneider Electric
On this page you’ll find a ranking of the best Charging accessories for electric cars from Schneider Electric. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Schneider Electric Stele Zur Bodenmontage
The floor-mounted column from Schneider Electric is a robust and functional solution for installing electric vehicle charging stations. It is specifically designed for the Charge Pro Wallbox and allows for the operation of up to two charging points. Made from high-quality aluminum with a zinc-phosphate coating, the column not only offers an appealing gray surface (RAL7016) but also high resistance to weather conditions. With compact dimensions and a weight of 10 kg, it is both stable and easy to handle. This column is an ideal choice for public and private charging infrastructures that require a reliable and durable mounting option.
- Robust aluminum construction with zinc-phosphate coating
- Suitable for mounting up to two charging points
- Weather-resistant.
2. Schneider Electric EVlink dynamic loadman
HMIBSCEA53D1EDL - EV Charging Expert - Load management for EVlink charging stations with dynamic control of up to 100 charging stations in a maximum of 20 zones. The operating modes include static and dynamic, with controllable zones of up to 20 and zone levels of 3. The VIP charging status can be assigned via the charging card or at fixed charging locations. The system provides consumption analysis for all charging stations, RFID card management, monitoring via a dashboard, and remote access to the charging stations. It features a time utilization function to define full or partial charging times, as well as the ability to export maintenance reports and charging data, and to commission all connected charging stations.
Connection options include integration with OCPP monitoring (OCPP 1.6 Json) and EcoStruxure support (web services), with an optional 3G/4G modem and commissioning via Ethernet cable. The system supports various user profiles, multiple zones, and sub-zones, and is compatible with EVlink Wallbox G4 Smart, EVlink Parking 2, EVlink 24 kW DC fast charger, EVlink AC Pro, and Parking 3.
Mounting options include upright or flat on a mounting plate or DIN rail. The dimensions are 157 x 150 x 46 mm, and the weight is 1 kg. The mechanical and environmental characteristics include an IP protection rating of IP40, an operating temperature range of 0 to 50 °C, a storage temperature range of -20 to 60 °C, and a relative humidity of 10 to 95 % non-condensing, with a maximum operating altitude of 2000 m. It complies with the standards for electromagnetic compatibility 2004/108/EC, Class A conducted and radiated emissions EN 55022, Low Voltage Directive 2006/95/EC, EN 61131-2, Class A Group 1 EN 55011, EN 61000-6-4, EAC, RCM, and CE.
3. Schneider Electric SCHN interface
Schneider Electric Mounting Plate 29364
Manufacturer: Schneider Electric
Description: Mounting Plate
Type: 29364
Accessory/Spare Part Type: Other
The Schneider Electric Mounting Plate 29364 is a control unit for network switching with devices of the Compact NSX, Compact NS, and Masterpact types. This ACP provides protection for the control, control functionality, and connection to the devices all in one unit. The control voltages are 110 VAC 50/60 Hz, 220 to 240 VAC 50/60 Hz, and 380 to 415 VAC 50/60 Hz.
4. Schneider Electric SCHN Modem
Modem and antenna for integration into the EVlink Pro AC. Installation and power supply within the wallbox, including micro SIM 3FF card slot. Dimensions W x H x D in mm: 120 x 20 x 160, weight: 0.07 kg. Operating temperature: -30 to 50 °C, storage temperature: -40 to 80 °C, relative humidity up to 95%. EVA1MS.
5. Schneider Electric EVlink, RFID badges
The EVlink RFID cards from Schneider Electric are specifically designed for use in the field of electromobility. These cards enable easy and secure authentication when charging electric vehicles. They are an essential accessory for anyone who regularly uses public charging stations. The RFID technology ensures quick and contactless identification, making the charging process more efficient. The cards are compactly designed and offer a user-friendly solution for managing charging access. With a clear focus on sustainability and innovation, Schneider Electric supports the growing demand for environmentally friendly mobility solutions with these cards.
- Fast and contactless authentication for electric vehicles
- Compact and user-friendly design
- Supports sustainable mobility solutions through innovative technology.

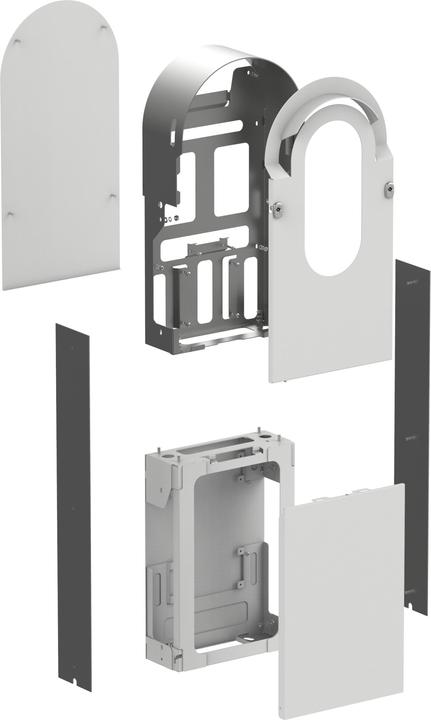

6. Schneider Electric EVA1RFKS1
This metal series can be used when installing an EVlink Pro AC charging device in a ground-mounted metal enclosure. Front devices such as cable protectors, residual current devices, or energy meters can be installed in the Kaedra enclosure located at the bottom of the casing.
Features:
- For one device
- Material: Steel C4M
- Surface treatment: Electro-galvanized
- Dimensions: 1360 x 390 x 180.3 mm
- Weight: 40 kg
- Color: White/light gray
Compatible products:
- Schneider Electric EVlink Pro AC cable holder.

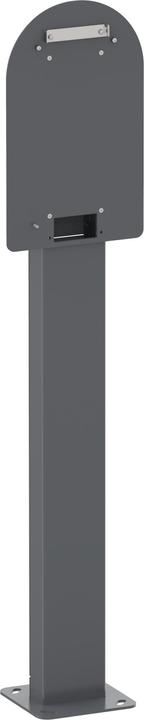

7. Schneider Electric EVA1PBS1
The Schneider Electric EVlink Pro AC is a ground-mounted pedestal for a single device. The pedestal is easy to install and wire thanks to its removable back plate. It can be easily upgraded to a dual-device pedestal using the appropriate adapter.
Features:
- Ground-mounted pedestal for a single device
- Easy installation
- Removable back plate
- Upgradeable to a dual-device pedestal
- Compatible with Schneider Electric EVlink Pro AC charging stations
- Material: aluminum 5754
- Surface treatment: zinc phosphate
- Dimensions: 1300 x 285 x 229 mm
- Weight: 5 kg
- Color: dark gray
Compatible products:
- Schneider Electric EVlink Pro AC additional device adapter for pedestal.
8. Schneider Electric Schneider EVP3MM EVlink 4G Modem for
The Schneider EVP3MM EVlink 4G Modem is an innovative solution for connecting charging points for electric vehicles with a backend system. This modem enables reliable and efficient communication between the charging facilities and the operator platforms, which is essential for optimal management and monitoring of the charging infrastructure. With a compact design and a weight of only 0.5 kg, the modem is easy to install and integrate. It has been developed to meet the demands of modern electromobility and supports seamless connectivity to various operator platforms. The EVP3MM modem is an indispensable accessory for anyone seeking an effective solution for managing their charging points.
- Reliable connection between charging points and backend systems
- Designed for seamless integration into operator platforms
- Compact design for easy installation.
Charging accessories for electric cars
EUR569,–
Schneider Electric Schneider EVP3MM EVlink 4G Modem for
9. Schneider Electric Schneider Charge charge management module
Schneider Charge Peak Controller for 3-phase wall charging stations. Compatible with the Schneider Charge series. Equipped with a swiveling converter that records the actual values. Easy installation and configuration.
Charging accessories for electric cars
EUR193,96
Schneider Electric Schneider Charge charge management module

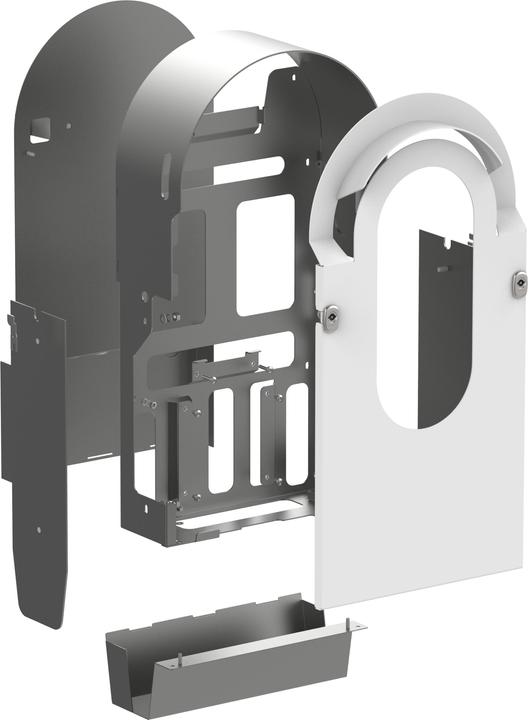

10. Schneider Electric EVA1RWKS1
This EVlink Pro AC metal kit accessory is a metallic enclosure for one Pro AC wall-mounted charging station. It is made of electro-galvanized C4M steel and is customizable. A 2D plan for the dimensions is provided with the product to produce the customized sticker. Its dimensions are (W) 783mm x (H) 390mm x (D) 230mm. The product weight is 26kg. The color of the front and rear plate is alu grey (RAL 9022), while the color of the side cover metal is white (RAL 9003).
Product order
