1. Finder Wechselstromzähler
The Finder AC meter is a sophisticated electronic measuring device designed for the precise measurement of energy and reactive power consumption in single-phase AC systems. With a maximum current rating of 40 A and a nominal voltage of 230 V AC, this meter offers a reliable solution for monitoring energy consumption. The digital 7-digit LCD display enables clear and easy reading of consumption data, while the backlight improves visibility under different lighting conditions. The meter supports multi-tariff billing and is equipped with various communication interfaces, including RS-485, NFC and infrared, allowing flexible integration into existing systems. The meter is also MID-certified, which emphasises its accuracy and reliability. Bidirectional communication via Modbus (RS485), NFC and IR. Display of total and partial consumption as well as instantaneous values. LED consumption display with 1000 pulses per kWh. Calibrated and MID-certified for precise measurements. Easy mounting on top-hat rail with a width of 17.5 mm.
2. Finder FIND alternating current meter

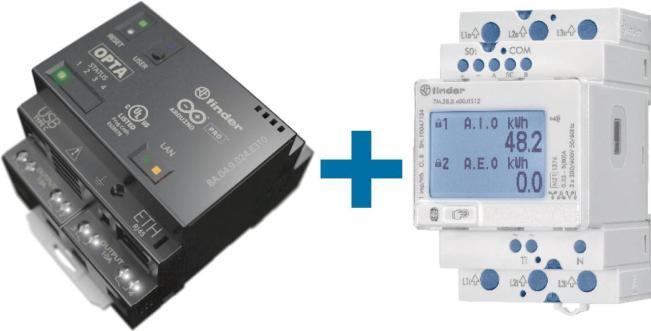

Bundle consisting of AC counter 7M.24.8.230.0210 and OPTA PLUS 8A.049.024.8310. A series of simple and stand-alone programmable logic relays ideal for simple applications in industrial automation, OEM, and building automation IoT. Programmable with conventional programming languages like ladder logic as well as with innovative open-source programming languages IDE Arduino, the powerful dual-core Cortex M7M4 chip enables a high number of computing operations in real time. Thanks to a high-end integrated secure element chip, you can manage encryption and data keys in all types of applications.
OPTA LITE type 8A.04.9.024.8310 has a supply voltage of 12 to 24 DC, digital analogue 0-10 V inputs, and 4 relay outputs rated at 10A. It features a USB-C high-speed connection for programming and power supply, data acquisition via storage medium, RJ45 Ethernet or Modbus TCP/IP connection, and RS485 port for Modbus RTU connection.
The AC meter 7M2482750210 is an electronic energy and reactive power meter with Modbus RS485 interface, NFC, and infrared communication interface, bidirectional, for 1-phase AC with a 7-digit LCD display, backlit. It displays total consumption, partial consumption resettable kWh, kVAh, kvarh, instantaneous values V, A, power factor, kW, kVA, kvar, frequency, THD V, THD A, phase shift, and power direction. It has an LED consumption display of 1000 pulses per kWh, maximum current of 40 A, short-time overcurrent pulse current of 1200 for 10 ms, starting current of 0.02 A, accuracy class B, and is designed for DIN rail mounting on a 35 mm mounting rail EN 60715, with a width of 17.5 mm and rated voltage of 230 AC. The S0 interface provides 1000 pulses per kWh, and the meter is MID-certified. Connection cross-sections for the main circuit are single-wire 1.5 to 10 mm² and multi-wire 1.5 to 10 mm², with an ambient temperature range of -25 to 55°C. The protection class for housing connections is IP50/IP20, and it features a sealable terminal cover.
3. Finder FIND three-phase meter
The FIND three-phase meter is a highly advanced measuring device designed for the precise recording of energy consumption in industrial and commercial applications. With its multifunctional capabilities, this electronic three-phase energy meter allows for real-time monitoring of total and partial consumption. It is suitable for both 3-wire and 4-wire systems and can operate bidirectionally, making it a flexible solution for various installations. The integrated backlit dot matrix LCD display provides a clear view of all relevant measurements, including voltage, current, power factor, and frequency. The meter supports two tariff rates and is equipped with Modbus and S0 interfaces, facilitating easy integration into existing systems. Furthermore, the meter is designed for a maximum current of 80 Amperes and meets accuracy class B, ensuring reliable performance.
- Bidirectional measurement for three-phase and single-phase applications up to 80A
- Support for Modbus and S0 interfaces for easy system integration
- Backlit dot matrix LCD display for clear readability
- Recording of total and partial consumption as well as instantaneous values
- Suitable for 3-wire and 4-wire systems with two tariff options.
4. Finder Three-phase meter
The Finder 7M.38.8.400.0112 is a multifunctional three-phase meter designed for the direct measurement of active and reactive power. This electronic meter is suitable for both energy consumption and supply, providing a digital display for precise readings. With a maximum current of 80 A and a nominal voltage of up to 400 V, it is suitable for various applications in energy monitoring. The meter supports both internal and external tariff controls and is equipped with a reverse current prevention feature to ensure reliable measurement. The accuracy class B guarantees high precision in energy measurement. The meter is calibrated according to the Measuring Instruments Directive and offers an electrical pulse output with a pulse rate of 500 pulses/kWh. Installation is straightforward on a DIN rail, making it easy to set up in different environments.
- Multifunctional measurement of active and reactive power
- Suitable for energy consumption and supply
- Supports internal and external tariff controls
- Calibrated according to the Measuring Instruments Directive
- Digital display for precise readings.
5. Finder 6M.BU.0.024.2200 Gateway 1 pc.
Passerelle Modbus TCP/IP vers Modbus RTU (RS485 Master) avec interface serveur Web intégrée pour 10 utilisateurs maximum. Interface Ethernet : 10/100 Mo/s, interface Modbus RTU : RS485 up to 115 200 bits/s. Insulation between electrical supply, RS485 and Ethernet: 1500 V. Optical display: 6 status LEDs. Up to 10 Ethernet users maximum. CONFORME À EN 61000-6-4/2006 + A1 2011 EN 64000-6-2/2005 EN 61010-1/2010.
6. Finder Three-phase meter digital 1500 A
Digital active power energy meter for direct connection. The device complies with EN 62053-21 and EN 50470-3 and is approved for billing energy costs with the European MID certification. In addition to displaying electrical energy (kWh), this meter can also show the current values for voltage, current, and power. The devices meet accuracy class 1 / B and device protection class II.
7. Finder Single-phase mechanical meter
Electronic active energy meter for direct connection. The device complies with EN 62053-21 and EN 50470-3 and is approved for billing energy costs under the European MID certification.
8. Finder FIN 7E.56.8.400.0010 3-phase three-phase current transformer meter, 5 A
The FIN 7E.56.8.400.0010 is an electronic 3-phase active current transformer meter specifically designed for the precise measurement of three-phase current. With a rated current of 5 A and a maximum current of 6 A, this device offers high accuracy according to class 1/B. The transformer meter is designed for rail mounting on a 35 mm DIN rail and features a multifunctional LCD display that allows for user-friendly reading of measurement values. The rated voltage is 3 x 230 V AC, and the device is MID compliant and PTB approved, making it a reliable choice for energy measurement in various applications. The connection cross-section for the main circuit is suitable for both single-wire and multi-wire connections ranging from 1.5 to 16 mm², allowing for flexible installation.
- Multifunctional LCD display for easy reading
- MID compliant and PTB approved for high measurement accuracy
- Sealable for additional security
- S0 interface according to DIN 43864 for external data transmission
- Suitable for rail mounting on a 35 mm DIN rail.
Energy monitors
EUR219,–
Finder FIN 7E.56.8.400.0010 3-phase three-phase current transformer meter, 5 A

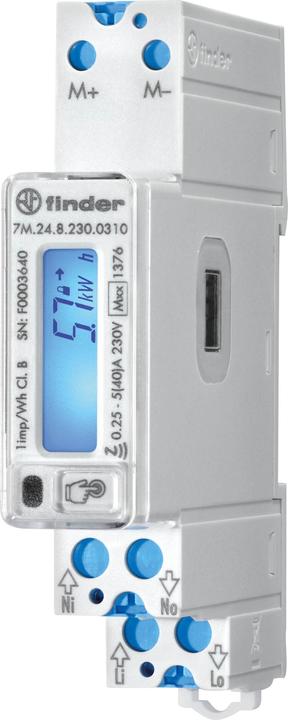

9. Finder 7M.24.8.230.0310 Alternating current meter digital 40A MID compliant: Yes 1pc.
The Finder 7M.24.8.230.0310 is a digital alternating current meter designed for the precise measurement of energy and reactive power in single-phase AC systems. With a maximum current of 40 A and MID certification, this meter meets the requirements for both commercial and private use. The user-friendly, backlit 7-digit LCD display allows for clear reading of measurement values, including total consumption, partial consumption, instantaneous values, and power factors. The meter is equipped with M-Bus and infrared interfaces, enabling easy data transfer and communication. Additionally, it features a sealable terminal cover that provides extra safety. The Finder 7M.24.8.230.0310 is suitable for mounting on a DIN rail and is characterized by high accuracy and reliability.
- Bidirectional measurement of energy and reactive power
- Backlit 7-digit LCD display
- M-Bus and infrared interface for easy data communication
- Sealable terminal cover for additional safety
- Operating temperature range of -25 to +55 °C.
Energy monitors
EUR120,26
Finder 7M.24.8.230.0310 Alternating current meter digital 40A MID compliant: Yes 1pc.
10. Finder Three-phase meter mechanical 65
Electronic active energy meter for direct connection. The device complies with EN 62053-21 and EN 50470-3 and is approved for billing energy costs under the European MID certification.
