Best Hager products in the Energy monitors category
On this page you'll find a ranking of the best Hager products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

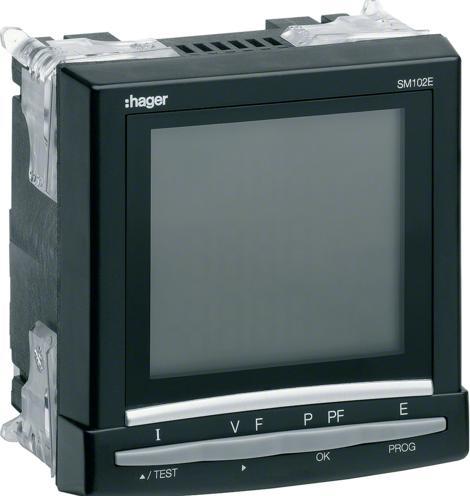

1. Hager HAG SM102E Multifunctional Measuring Device
The HAG SM102E multifunction measuring device from Hager is a versatile tool designed for the precise measurement of electrical parameters. It allows for the measurement of currents, voltages, power factors, power, and harmonics, making it a valuable instrument for professionals in the field of electrical engineering. With a backlit LCD display, reading values is easy even under challenging lighting conditions. The device is suitable for installation and offers an IP51 protection rating, safeguarding it against dust and splashes. Additionally, the SM102E can be expanded with plug-in modules to integrate additional functions. With a nominal voltage of up to 400 volts and adjustable current tariffs, it provides a flexible solution for various applications.
- Measurement of currents, voltages, power factors, and harmonics
- Backlit LCD display for improved readability
- Expandable with plug-in modules for additional functions
- Adjustable current tariffs for flexible use
- Integrated data logger for recording measurement values.
2. Hager ECR310D
Three-phase energy meter, direct 125A, 6M, Modbus, MID. Energy meter for four-quadrant measurement with the following accuracy classes: Active energy Class B according to DIN EN 50470-3, Active power Class 1 according to IEC 62053-21, Active power Class 1 according to IEC 61557-12, and Reactive power Class 2 according to IEC 62053-23. The bidirectional meter is factory certified MID (a sealing kit is included in the delivery) and features a resettable partial meter. Suitable for measuring energy consumption and energy delivery in all network systems. Up to 8 tariff measurements possible (2 tariff measurements via 230 V AC and Modbus, plus an additional 6 tariff measurements controllable via Modbus). Digital display with backlighting for showing consumed and delivered active (kWh) and reactive energy (kvarh) for all tariffs. Additionally, real-time measurement values for active power (kW), reactive power (kvar), apparent power (kVA), voltage (V), current (A), power factor, frequency (Hz), and tariff are displayed per phase with a resolution of up to 9 digits including two decimal places. In addition to the previously mentioned measurement values, current total measurement values for active power (kW), reactive power (kvar), and apparent power (kVA) as well as the power factor can be accessed via Modbus. Furthermore, the values of the partial meter for active energy from each tariff can be reset individually via Modbus. End resistor (120 Ohm) for terminating the Modbus line is integrated. All measurement values and energy values for Tariff 1 and Tariff 2 can also be output via an IR interface. Wiring errors and connection errors are displayed, and the measurement data is periodically stored.

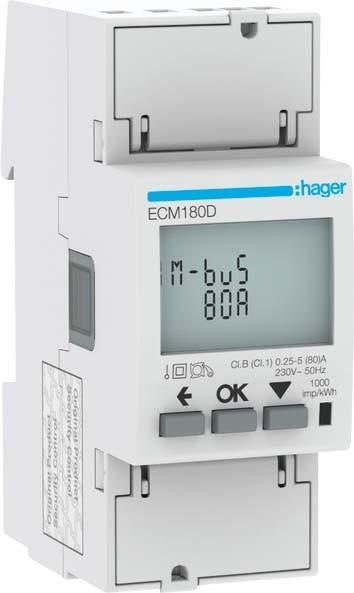

3. Hager ECM180D
The Hager ECM180D is a highly advanced single-phase energy meter designed for the precise measurement of energy consumption and delivery in various network systems. With a maximum current of 80A and the capability for four-quadrant measurement, this meter provides a comprehensive solution for monitoring energy usage. The ECM180D is MID-certified, ensuring high accuracy and reliability in measuring active and reactive power. The illuminated digital display allows for clear visibility of relevant measurement values, while the Mbus interface facilitates integration into modern energy management systems. The meter is suitable for mounting on a DIN rail and has an IP20 protection rating, making it ideal for indoor use. With the ability to count up to two tariffs, the Hager ECM180D is a flexible solution for diverse requirements.
- MID-certified for high measurement accuracy
- Four-quadrant measurement for comprehensive energy monitoring
- Illuminated digital display for clear readability
- Mbus interface for integration into energy management systems
- Display of real-time measurements for active power, voltage, and current.
4. Hager Operating hours counter
Hager Operating Hour Meter EC100
Manufacturer: Hager
Designation: Operating Hour Meter
Type: EC100
Mounting Type: DIN Rail
Design: Analog
Counting Range: 99999 h
Reset Function: No
Running Display: Yes
Number of Digits: 6
Input Voltage: 200..270 V
Voltage Type: AC
Input Voltage Frequency: 50 Hz
Drive Type: Mains Synchronous
Accuracy per Day: 360 s
Width: 35 mm
Height: 90 mm
Width in Division Units: 2
Installation Depth: 60 mm
Front Plate Width: 35 mm
Front Plate Height: 90 mm
Front Mounting Cutout Diameter: 45 mm
Protection Class (IP): IP20
Operating hour meter for DIN rail mounting with electromechanical roller mechanism. Counting range of 99999 hours.
5. Hager Energy meter
Three-phase energy meter, direct 80A, 4M, S0, MID. Energy meter for 4-quadrant measurement with the following accuracy classes: Active energy Class B according to DIN EN 50470-3, Active power Class 1 according to IEC 62053-21, Active power Class 1 according to IEC 61557-12, and Reactive power Class 2 according to IEC 62053-23. The bidirectional meter is factory certified MID (a sealing kit is included in the delivery) and features a resettable partial meter. Suitable for measuring energy consumption and energy delivery in all network systems. Two tariff measurements can be controlled via 230 V AC and output via two configurable pulse outputs. Digital display with backlighting to show consumed and delivered active (kWh) and reactive energy (kvarh) for all tariffs. Additionally, real-time measurements for active power (kW), reactive power (kvar), apparent power (kVA), voltage (V), current (A), power factor, frequency (Hz), and tariff are displayed for each phase with a resolution of up to 9 digits including two decimal places. The pulse output provides the measurement values for consumed and delivered active (kWh) and reactive energy (kvarh), as well as the consumed active energy (kWh) for Tariff 1 and Tariff 2. All measurement values and energy values for Tariff 1 and Tariff 2 can also be output via an IR interface. Wiring errors and connection errors are displayed, and the measurement data is periodically stored.
6. Hager ECM300C
The Hager ECM300C is a highly advanced three-phase energy meter designed for the precise measurement of energy consumption and delivery in various network systems. This device supports transformer ratios of 1A or 5A and offers comprehensive four-quadrant measurement. With factory MID certification and an included sealing kit, the ECM300C ensures reliable and accurate energy monitoring. The illuminated digital display allows for a clear readout of active and reactive energy, as well as real-time measurements for active power, reactive power, apparent power, voltage, current, power factor, and frequency. The capability for control via Mbus and the output of measurement values through an IR interface make this device particularly versatile and user-friendly. Additionally, wiring and connection errors are displayed, enhancing the safety and reliability of the installation.
- MID certified with sealing kit included
- Real-time measurements for active power, reactive power, and apparent power
- Two tariff counting via 230 V AC or controllable via Mbus
- Digital display with backlighting for clear readability
- Periodic storage of measurement data for later analysis.
7. Hager Modbus cable
Hager Modbus cable RJ45 - RJ45 HTG480H Manufacturer :Hager Designation :Modbus cable RJ45 - RJ45 0.2m Type :HTG480H Type of accessory/spare part :other Accessories :yes Spare part :no Hager Modbus cable RJ45 - RJ45 HTG480H: more details Modbus cable RJ45 - RJ45 0.2 m , EAN: 3250613138851.
8. Hager Evolution's multifunctional network parameter analyzer
The multifunctional network parameter analyzer from Hager, model SM103E, is a highly advanced measuring device designed for the precise monitoring and analysis of electrical parameters in various applications. With an input voltage range of 110 to 400 V and a frequency measurement range of 45 to 65 Hz, this device offers versatile usage options. It is capable of measuring both active power and reactive power and supports MODBUS communication, facilitating integration into existing systems. The digital display allows for clear and easy reading of measurement values, while the front mounting ensures straightforward installation. The SM103E is ideal for professionals seeking a reliable and precise solution for monitoring electrical systems.
- AC input voltage range of 110 to 400 V
- Frequency measurement range of 45 to 65 Hz
- Supports MODBUS communication
- Digital display for easy reading
- Suitable for front mounting.
9. Hager Energiezähler 3phasig ECM382D direkt 80A 4M MBUS MID
The Hager ECM382D is a three-phase energy meter designed for the direct measurement of electrical energy in a range of up to 80 amperes. This device is ideal for applications where precise monitoring of energy consumption is required. The meter supports the measurement of both active power and reactive power and is equipped with a digital display that allows for easy reading of values. With an accuracy class of B and the capability for multi-tariff measurement, the ECM382D is particularly versatile. The integrated M-Bus interface enables easy integration into existing energy management systems. The meter is calibrated in accordance with the Measuring Instruments Directive (MID), providing a reliable and legally compliant solution for energy monitoring.
- Calibrated according to the Measuring Instruments Directive (MID)
- Multi-tariff measurement for flexible billing
- Digital display for easy reading
- M-Bus interface for integration into energy management systems
- Reverse prevention to avoid incorrect measurements.
10. Hager ECP140D
Single-phase energy meter, direct 40A, 1M, S0, MID. Energy meter for 4-quadrant measurement with the following accuracy classes: Active energy class according to DIN EN 50470-3, active power class according to IEC 62053-21, active power class according to IEC 61557-12, and reactive power class according to IEC 62053-23. A sealing kit is included in the delivery. Suitable for measuring energy consumption and energy delivery in all network systems. Digital display for showing consumed and delivered active energy in kWh. Additionally, real-time measurements for active power in kW, voltage in V, current in A, power factor, and frequency in Hz are displayed with a resolution up to decimal places. Active kWh and reactive energy kvarh are output via pulse. All measurement values and energy values are also output via an IR interface. Wiring errors and connection errors are indicated, and the measurement data is periodically stored. ECP140D.
