Blum Pot hinges CLIP top corner cabinet, folding door hinge 60 °
Best selling Furniture fittings from Blum
On this page you'll find a ranking of the best Blum products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

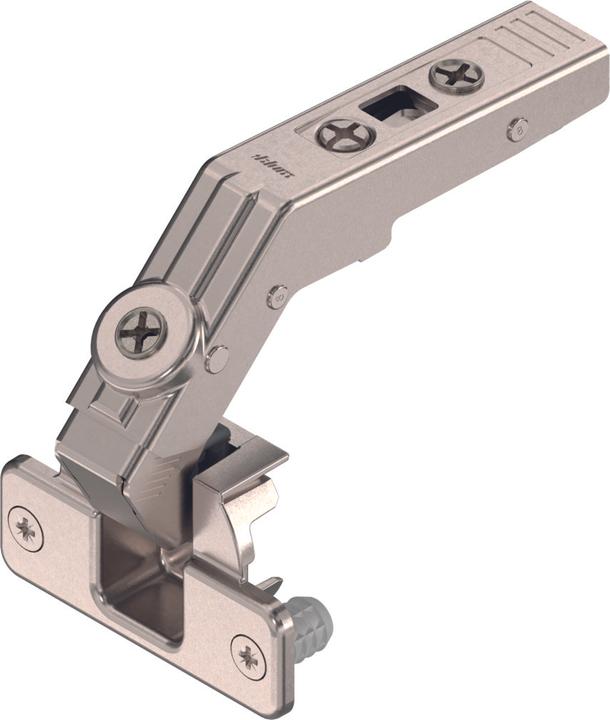

1. Blum Pot hinges CLIP top corner cabinet, folding door hinge 60 °
The CLIP top corner cabinet hinge is a specialized furniture hinge designed for use in corner cabinets with folding doors. It is suitable for front thicknesses of 15 to 23 mm, with the factory setting adjusted to 19 mm. This hinge can be used in combination with 155° or 170° hinges and features a closing mechanism supported by a spring. The 3-dimensional front adjustment allows for precise alignment of the door front, while the tool-free assembly and disassembly of the front from the body ensure easy handling. The product is made from high-quality die-cast material and has a nickel-plated surface that is both functional and aesthetically pleasing. Manufactured in Austria, this hinge provides a reliable solution for modern furniture designs.
- Specialized hinge for corner cabinets with folding doors
- 3-dimensional front adjustment for precise adjustments
- Tool-free assembly and disassembly of the front
- Made from high-quality die-cast material with a nickel-plated surface.
2. Blum Pot straps Clip top
The clip top aluminium frame hinge from Blum is a high-quality furniture hinge that has been developed for precise and reliable functionality. With an opening angle of 95°, it allows optimum accessibility to the contents of the cupboard. The hinge is made of robust die-cast and comes in an elegant, nickel-plated silver colour that blends harmoniously into various furniture styles. It is particularly suitable for corner hinges and is easy to install using the supplied cup screws. Manufactured in Austria, this product stands for quality and durability. The clip top aluminium frame hinge is an ideal choice for anyone who values functionality and aesthetics in their furniture.
3. Blum 22F2500 Kraftsp. HF top 2700-13500
For wooden fronts and wide aluminum frames
- Ideal for taller upper cabinets with split fronts
- Cabinet height 480–1200 mm
- Cabinet width up to 1800 mm
- Clear depth of at least 264 mm
- Integrated BLUMOTION adjustment for soft and quiet closing
- Low actuation forces
- Stepless stop
- Integrated opening angle limiter
- Fixed position of the energy storage and front attachment
- Symmetrical levers
- Tool-free installation
- Two types of energy storage installation
- 3-dimensional adjustment of both fronts
- Intermediate hinge including finger safety
Consists of:
2x symmetrical energy storage units including position finding
8x chipboard screws Ø 4 x 35 mm
Consists of:
2x symmetrical energy storage units with pre-assembled system screws
Performance factor (PF) =
Cabinet height (CH) [mm] x front weight including handle weight [kg]
* For asymmetrical fronts, calculate using theoretical cabinet height (TCH)
For asymmetrical fronts: Theoretical cabinet height TCH = front height top (FHo) [mm] x 2 + gaps
For asymmetrical fronts, the larger front must be at the top!
For overlapping areas, we recommend the stronger energy storage unit. In the edge areas of the individual energy storage units, we recommend a stop test!
The performance factor can be increased by 50% with the use of a third energy storage unit. For wide cabinets, we recommend a third energy storage unit due to the potential bending of the front in the open position.
4. Blum Pot band
The Blum cup hinge is a high-quality furniture hinge specifically designed for narrow aluminum frame doors. It provides a reliable and durable solution for connecting doors and frames. This model is not equipped with BLUMOTION and allows for easy installation using screws. The hinge's construction ensures precise adjustment, with side adjustment of +/- 2 mm and depth adjustment of +3/-2 mm. The cup hinge is suitable for corner stops and offers an opening angle of up to 120 degrees, allowing for flexible use of the doors. The use of die-cast material ensures stability and longevity, while the nickel-plated surface offers an appealing appearance.
- Suitable for narrow aluminum frame doors
- Corner stop and folding flap connection
- Side adjustment of +/- 2 mm
- Depth adjustment of +3/-2 mm
- Opening angle of 120 degrees.
5. Blum Cross mounting plates
Cross mounting plates for Blum clip corner mounting. Mounting with chipboard screws of 3.5 mm or 4 mm diameter.
6. Blum Clip Top
The Clip Top by Blum is a high-quality furniture hinge designed for precise and flexible application in furniture assembly. It features a 3-dimensional front adjustment that allows for exact positioning of the door. This hinge does not have a closing mechanism and is ideal for various furniture applications where a manual closing function is desired. The tool-free installation of the cup in INSERTA systems significantly simplifies the installation process and saves time. Made in Austria, the Clip Top is characterized by its robust metal construction, ensuring durability and stability. It is an excellent choice for anyone who values quality and functionality.
- 3-dimensional front adjustment for precise adjustments
- Tool-free installation of the cup in INSERTA systems
- Made in Austria from robust metal.
7. Blum 24K2700 AVENTOS HKi 1730–5200 ONS
Aventos HKi - the integrated lift-up fitting
Thanks to its compact and narrow design, Aventos HKi can be fully integrated into the side panel of the cabinet. The lift-up fitting seamlessly merges with the furniture, allowing for new designs with high-quality aesthetics. You get pure furniture with complete design freedom. Thanks to the Blumotion damping system, the integrated lift fitting always closes gently and quietly (not suitable for Tip-On).
You can also implement Aventos HKi in a partially integrated way, where the milled force storage is concealed with a cover cap.
The technology of the integrated lift fitting is hidden in the side panel yet remains perceptible at all times: force storage adjustment from the front, integrated opening angle limiter, and infinitely adjustable stop. Three-dimensional front adjustment and no hinges required.
The fitting is so narrow that it fits into side panel thicknesses of just 16 mm, and all common dimensions can be realized: for cabinets with a height of up to 600 mm and a width of up to 1800 mm. Symmetrically usable force storage types provide flexibility for solutions with fronts weighing up to 18 kg.
Consisting of:
2x symmetrically usable force storage, onyx black.
8. Blum 24K2800T AVENTOS HKi 2600–7800 ONS
AVENTOS HKi - the integrated lift-up fitting
Thanks to its compact and narrow design, AVENTOS HKi can be fully integrated into the side panel of the cabinet. The lift-up fitting seamlessly merges with the furniture, allowing for new designs with high-quality aesthetics. You get pure furniture with complete design freedom. Thanks to the BLUMOTION damping system, the integrated flap fitting always closes gently and quietly. For handle-less applications, the flap fitting can also be implemented with the TIP-ON motion technology.
You can also implement AVENTOS HKi in a partially integrated manner, where the milled force storage is concealed by a cover cap.
The technology of the integrated flap fitting is hidden in the side panel yet always perceptible: force storage adjustment from the front, integrated opening angle limiter, and infinitely variable stop. Three-dimensional front adjustment and no hinges are necessary.
The fitting is so narrow that it fits in side panel thicknesses of just 16 mm, and it can accommodate all common dimensions: for cabinets with a height of up to 600 mm and a width of up to 1800 mm. Symmetrically usable force storage types provide flexibility for solutions with fronts weighing up to 18 kg.
Consisting of:
2x symmetrically usable force storage, onyx black.
9. Blum Cup hinges CLIP top, zero recess hinge 155 °
The CLIP top hinge from Blum is a highly advanced furniture hinge specifically designed for cabinets with internal drawers or pull-out shelves. With a zero inset at corner hinges, this hinge allows for efficient use of available space by ensuring easy opening of drawers behind doors starting from an opening angle of 90°. The CLIP top hinge features a 3-dimensional front adjustment, enabling precise alignment of the door front. The tool-free attachment to the mounting plate significantly simplifies installation, while the optional tool-free mounting of the cup in the INSERTA variant offers additional convenience. This product is ideal for modern furniture designs and provides an elegant solution to the challenges of hinge installation.
- 3-dimensional front adjustment for precise adjustments
- Tool-free attachment to the mounting plate
- Zero inset at corner hinges for optimal space utilization
- Suitable for front overlay up to 19 mm for mirrored cabinets.
Furniture fitting
Quantity discount
EUR10,91 per piece for 2 units
Blum Cup hinges CLIP top, zero recess hinge 155 °
10. Blum Pot hinges CLIP top BLUMOTION, center hinge 110 °
With integrated BLUMOTION.
IP packaging 250 pcs: only whole packages available. Application notes: suitable for Clip top 110° cabinet hinge. Note: inward-opening doors can also be made with interior band 71B3790 / 71B3750 / 71B3780.
