Geka Impulse, circular and sector sprinklers
Impulse, circular and sector sprinklers
On this page you'll find a ranking of the best Geka products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

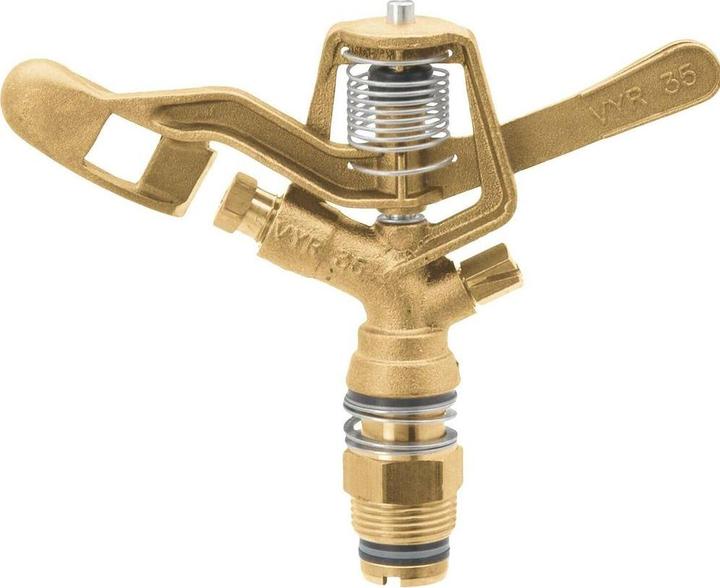

Oscillating lever sprinkler made of brass CW617N, with springs and jet interference stud in chrome steel. The jet interference stud regulates the throwing distance and drop size, while the sector limitation is infinitely adjustable from 20° to 360°. This sprinkler is suitable for medium to higher irrigation densities, with maximum throwing distances using standard nozzle equipment of approximately 16 m. Areas of application include open land, field vegetable growing, fruit growing, frost protection, and sports and leisure facilities. A prerequisite for use is 3/4" hoses and a minimum pressure of 2 bar.
Water flow rate:
- At 2 bar: 22.4 l/min
- At 3 bar: 27.4 l/min
- At 4 bar: 31.6 l/min
Blasting distance at 4 bar is approximately 16 m.
Geka Impulse, circular and sector sprinklers
Impulse, circular and sector sprinklers
Hose connection thread G 3/4, prerequisite hose 19 mm (3/4) and at least 2 bar water pressure. Water flow rate at 3 bar is 27.4 l/min, and maximum throw distance at 4 bar is approximately 16 m. A sleeve is required for mounting on a GEKA sprinkler stand.
With a stand made of galvanized steel, height adjustable from 700 to 1070 mm, hose connection thread G 3/4, prerequisite hose 19 mm (3/4) and at least 2 bar water pressure. It features an oscillating lever sprinkler with a jet disturbance pin to regulate the throwing distance and drop size. The water flow rate at 3 bar is 17.2 l/min, and the maximum throwing distance at 4 bar is approximately 13 m. The sector limitation is adjustable from 20° to 360°.

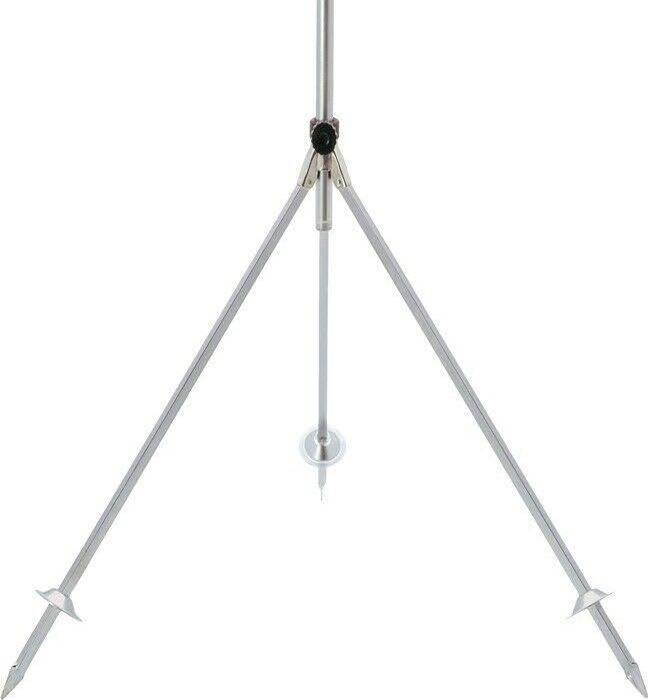

Steel, galvanised. Extremely stable. Folding. Further technical information: Height adjustable up to 1070mm. Tripod height: 700mm.

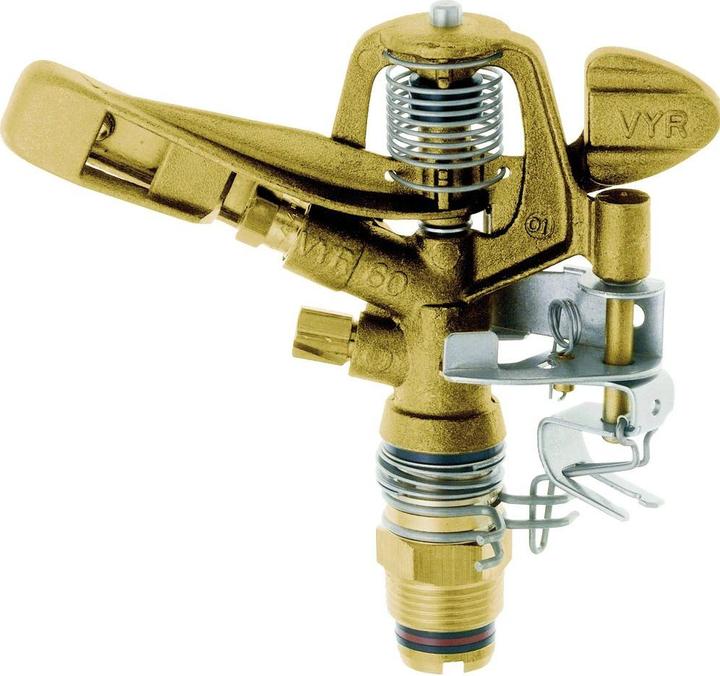

Swing lever made of painted metal die-cast, sector limit, spacer, and nozzle made of brass, switching spring made of stainless steel, equipped with an external thread connection G1/2.

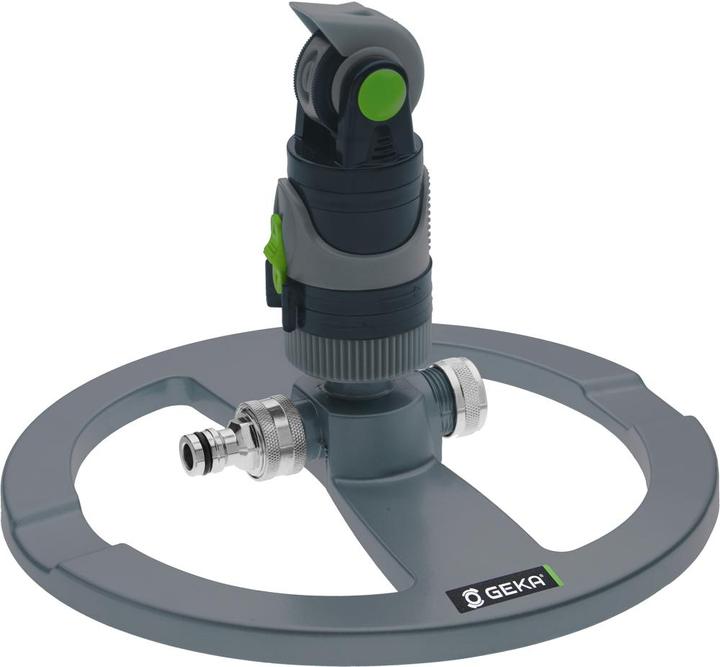

4 spray patterns for different irrigation, adjustable throw, irrigation of circular areas or individually adjustable circular segments, series connection of several circular sprinklers due to additional connection option, ideal hold on meadow, field, etc., maximum contact surface due to round metal stand, particularly durable due to chrome-plated brass plug, compatible with all commercially available plug-in systems.

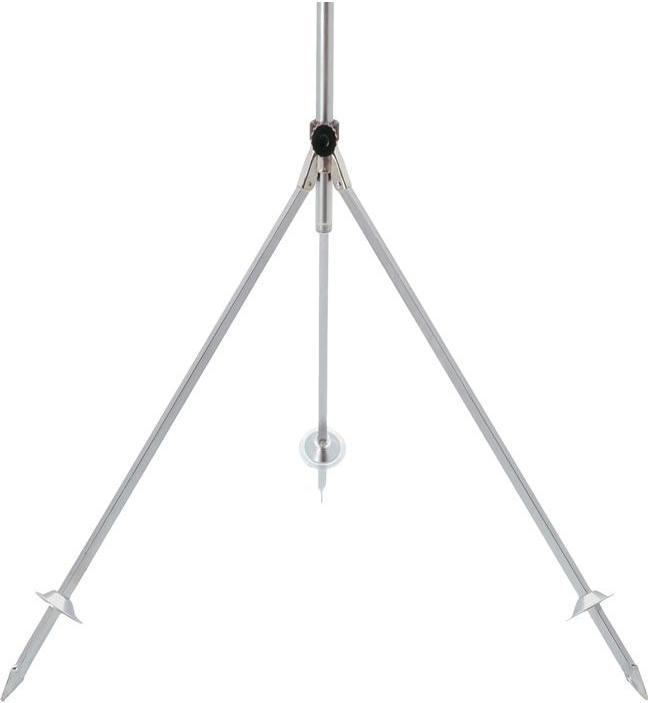

Height-adjustable stand made of galvanized steel for high sprinklers. For the sprinkler models 354454SB and 604424SB, a coupling (2003) with female thread G3/4" is required for installation, which is not included in the delivery.

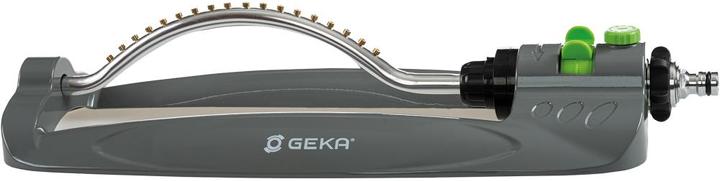

Square sprinkler • Robust square sprinkler made of aluminum • With brass nozzles • Adjustable watering width • Maximum watering area 19 m x 2 m² (approximately 399 m²) • Internal thread 3/4" • Includes pin for nozzle cleaning.
The KARASTO V65S oscillating sprinkler from Geka is a versatile solution for efficient irrigation of lawns and gardens. This sprinkler combines the functionality of an oscillating sprinkler with a stable tripod that allows for continuous height adjustment. With a maximum spray width of 35 meters, the V65S is ideal for medium to large lawns up to 960 square meters. The construction from high-quality materials such as brass and galvanized steel ensures high stability and durability. The sprinkler is foldable, making storage and transport easy. For optimal performance, it should be used at a minimum pressure of 3 bar, with the recommended pressure range between 3 and 8 bar. The V65S offers an impressive throw distance of up to 17.5 meters at a pressure of 4 bar, making it an effective choice for irrigation.
- Combination of oscillating sprinkler and height-adjustable tripod
- Maximum spray width of 35 meters for large lawns
- High-quality materials: brass and galvanized steel
- Foldable for easy storage and transport
- Recommended pressure range of 3-8 bar for optimal performance.
Geka KARASTO V65S Circular High Sprinkler
Circular sprinkler

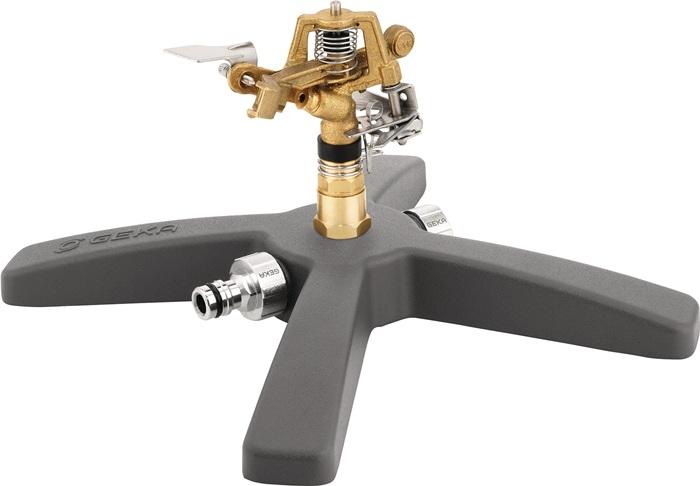

The Geka V80B circle and sector sprinkler is a high-quality oscillating sprinkler designed for professional irrigation of lawns. Made from robust metal, it features a matte finish that is both aesthetically pleasing and functional. The sprinkler allows for the irrigation of circular areas with a diameter of up to 26 meters or individually adjustable circular segments, making it extremely versatile. The chrome-plated brass connector ensures a durable connection to standard coupling systems. The new base made of powder-coated aluminum not only provides stability but also flexibility, as it allows for use with claw couplings on both sides. With a recommended pressure range of 2 to 4 bar and a throw distance of up to 13 meters, this sprinkler is ideal for areas up to 531 square meters.
- Robust metal construction for durability
- Adjustable irrigation for circular areas up to 26 m in diameter
- Compatible with all standard coupling systems on the market
- Stable base made of powder-coated aluminum
- Recommended pressure range of 2-4 bar for optimal performance.
