Best Mitutoyo products in the Length measuring tool category

On this page you'll find a ranking of the best Mitutoyo products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

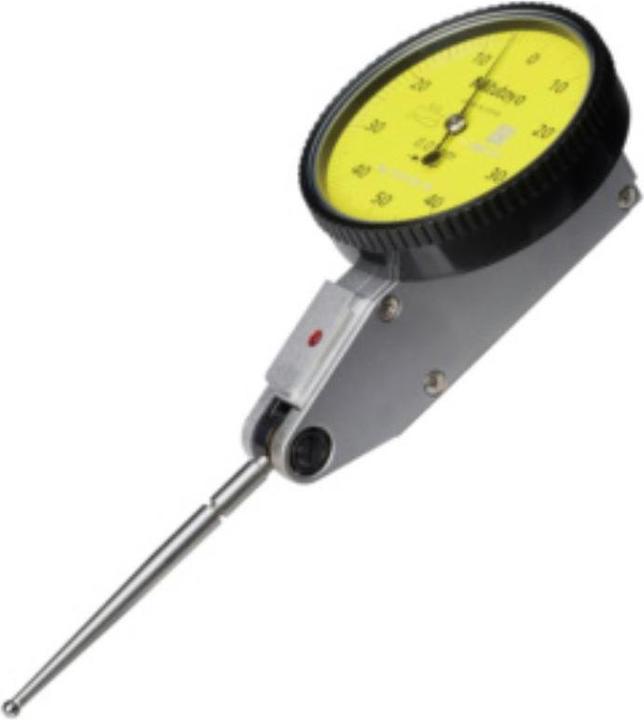

1. Mitutoyo Lever gauge 40 mm Measuring range 1 mmPitch 0.01 mm Basic set

Feel lever measuring device horizontal model • Application: For measuring runout, flatness, parallelism, and flatness deviations. For centering shafts, holes, and aligning workpieces. The improved placement of the O-ring seal allows for easy rotation of the dial glass while simultaneously protecting the scale from dust and oil intrusion. Multi-coated dial glass • Advantage: Glare-free, flat dial glass enables easy reading of measurement results. Delivery: including clamping shank Ø 8 mm and box.

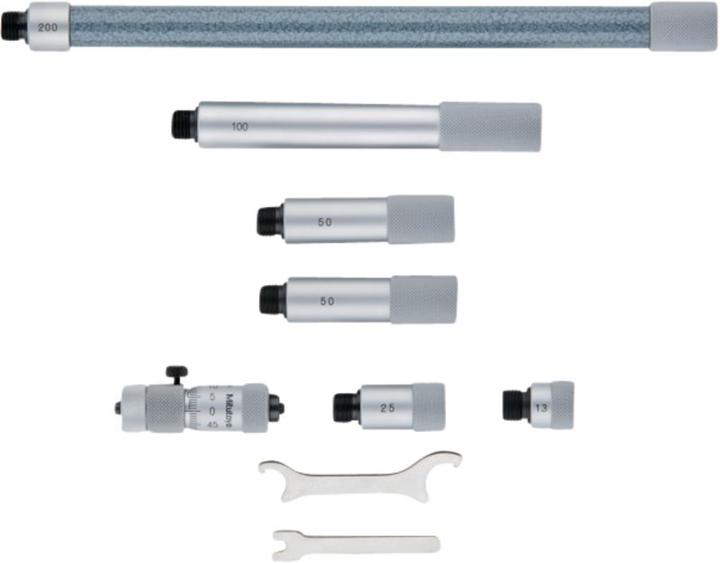

2. Mitutoyo Inside micrometer 137-208

Mitutoyo internal measuring screw with carbide measuring surfaces, 50...500 / 0.01

Series 137 - Designed for measuring internal dimensions with 2-point contact. Individual adjustment of the measuring range through the use of extensions. Scale sleeve and scale drum are matte chrome-plated, measuring surfaces are fitted with carbide.

With extensions of 13, 25, 2x 50, 100, 200 mm.

Accuracy:
± (3 + n + L/50) μm
n = number of extensions
L = maximum measuring length (mm)

Scope of delivery:
Delivered in a case including extensions.

3. Mitutoyo Internal micrometer set

Mitutoyo internal micrometer set, surface titan-coated, 50 to 100 mm with a resolution of 0.005 mm.

Series 368 - Can be used for through holes and base boreholes (diameter 6 to 12 mm up to 2 mm from the ground, greater than 12 to 100 mm up to 0.3 mm from the ground). Wearing parts made of carbide with titanium-coated measurement surfaces.

Package contents:
Delivered in its own case, including adjusting rings and factory certificate.

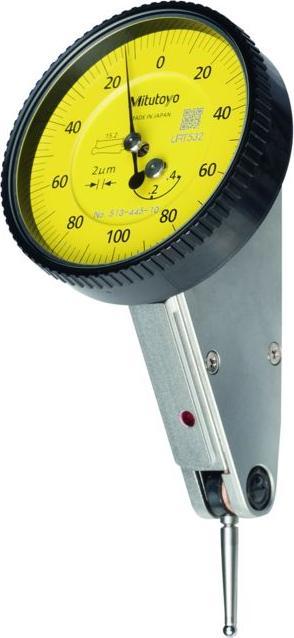

4. Mitutoyo Sensing lever measuring device with inclined clock, measuring range per direction / housing diam...

Design: With a clock positioned at a 20° angle. High-precision feeler gauge measuring instruments with gemstone-supported measuring mechanism in a compact, robust design. The housing and dovetail holding prisms are made from a single piece, ensuring particularly high rigidity during clamping. Corrosion protection through matte chrome plating of the housing. Mitutoyo – gemstone-supported measuring mechanism with hard metal measuring ball. Insensitive to magnetic fields. Spare part: Replacement probe with hard metal or ruby ball can be easily ordered. Delivery includes: Including clamping pin with a diameter of 8 mm. Usage: As an accurate comparison measuring device for checking the deviation from nominal dimensions for run-out tests, internal measurements, checking parallelism and flatness, as well as for aligning workpieces.

Mitutoyo Sensing lever measuring device with inclined clock, measuring range per direction / housing diam... (Metric)
Length measuring tool
EUR283,69

Mitutoyo Sensing lever measuring device with inclined clock, measuring range per direction / housing diam...

Metric

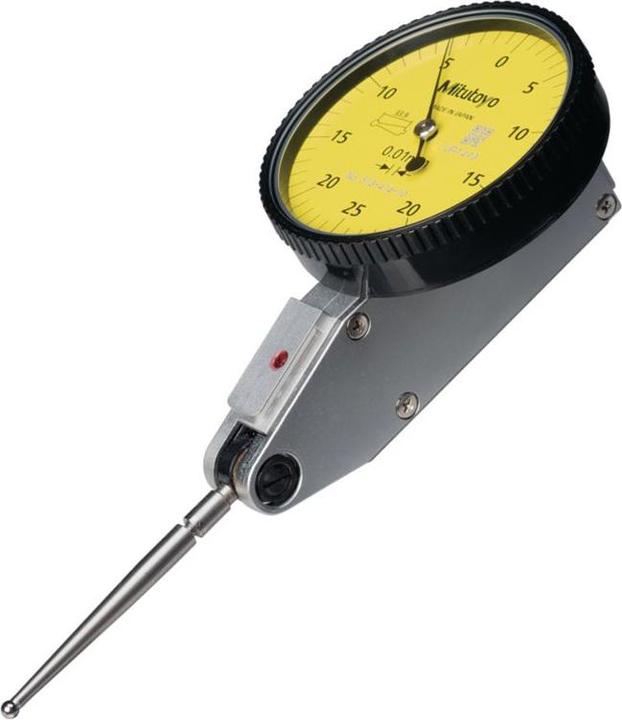

5. Mitutoyo Dial test indicator 513-414-10E

Mitutoyo lever gauge, standard, carbide, ±0.25 / 0.01 / Ø 40 / 33.9

Series 513 - Precision jewel bearing. Measuring in two directions by automatic switching, probe with carbide ball Ø 2 mm, swiveling and exchangeable, clamping possibility by dovetail bar, rotatable outer ring for zero setting.

Standard

Scope of delivery:
Supplied in case including measuring probe M1.7 with ball Ø 2 mm, clamping shank Ø 8 mm. Additional options include swivel clamp, holder, probe M1.7 with ball Ø 1 / Ø 3 mm, clamping shank Ø 4 mm.

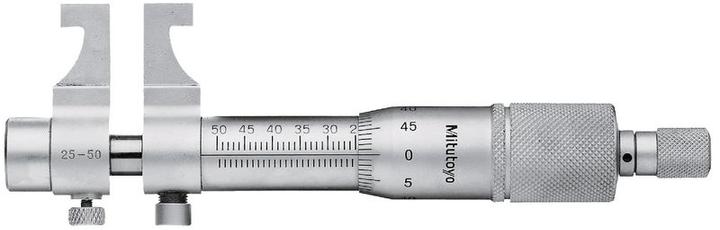

6. Mitutoyo Internal micrometer

Design: Fully hardened, ground, and polished spindle. Tapered and rounded measuring jaws equipped with carbide. Consistent measuring pressure through a feel ratchet. Measuring drum with cleanly engraved and black inlaid graduations and numbers. Measuring screw is chrome-plated. Includes adjustment screw and locking screw.

7. Mitutoyo Inside micrometer, measuring range: 25-30 mm

Stainless, all reading parts chrome-plated without glare. Measuring drum with deep black scaling and feeler ratchet, for through holes, measuring surfaces made of hardened steel.

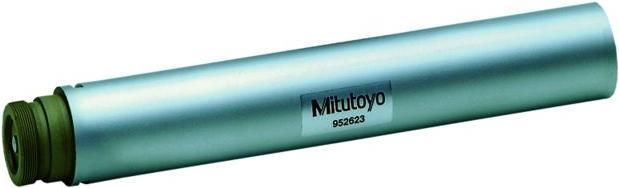

8. Mitutoyo Extension for inside micrometer, type: 1/100

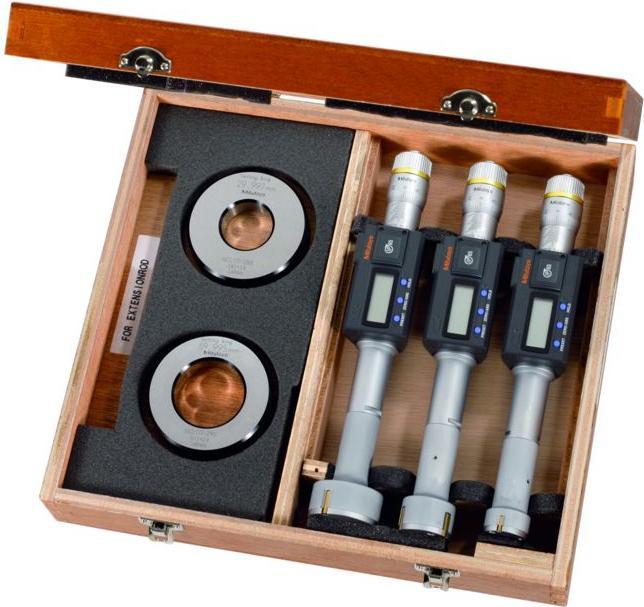

9. Mitutoyo Digital micrometer set, measuring range: 12-25 mm

Version: Direct reading via clearly visible digital display. Safe, error-free measurement – without vernier. "Function Lock" prevents accidental adjustment of the zero point. Low power consumption. With charge control and fault indication. Measuring surfaces and wear parts made of carbide; from size 12–25, the measuring surfaces are made of hardened steel with titanium coating for a long service life. Delivery includes: Digital internal calipers No. 429110, adjustment rings.

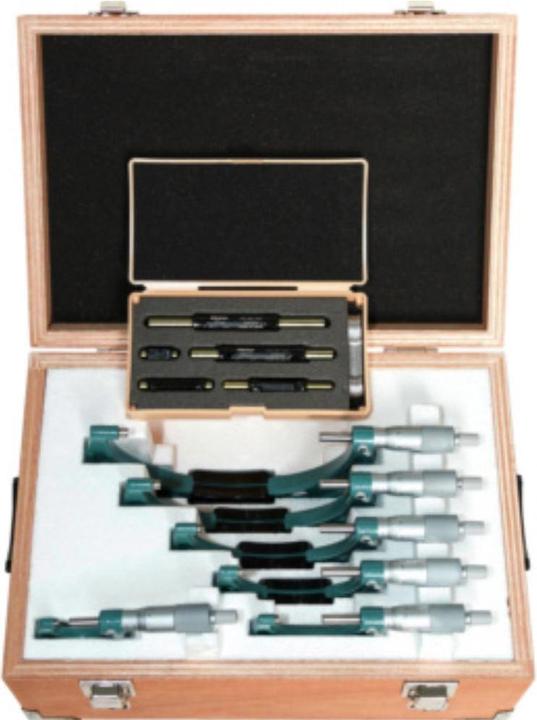

10. Mitutoyo Micrometer set, measuring range: 0-150 mm

The Mitutoyo screw gauge set is a precise length measuring tool designed for a variety of applications in the workshop. With a measuring range of 0 to 150 mm, this tool is ideal for measuring shaft diameters and external dimensions of workpieces. The design is tailored to the requirements of a light workshop environment and offers user-friendly handling. The glare-free matte chrome reading parts and the carbide-tipped measuring surfaces ensure high accuracy and durability. The friction coupling provides a consistently repeatable measuring force, which enhances the reliability of the measurements. The set comes in a practical box and includes a key as well as setting standards for precise calibration. Weighing 2260 grams, the tool is robust yet handy, making it an essential aid for professionals and hobbyists alike.

- Glare-free matte chrome reading parts for optimal visibility
- Carbide-tipped measuring surfaces for increased durability
- Friction coupling for consistently repeatable measuring force
- Delivered with a practical storage box and key
- Includes 5 setting standards for precise calibration.
