Best Tesa products in the Length measuring tool category
On this page you'll find a ranking of the best Tesa products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Tesa Dial test indicator TESATAST ± 0.1 mm / 01810009
Model: High-precision feeler gauge measuring instruments with gemstone-supported measuring mechanism in a compact, robust design. The housing and dovetail holding prisms are made from a single piece, which provides exceptional rigidity during clamping. Corrosion protection through matte chrome plating of the housing. 2 1000-readout. TESA - Ruby-supported measuring mechanism with HM measuring ball. Sturdy monoblock housing; non-magnetic. Swiss Made. Note: Additional information DIN 2270: Readout 0.002/0.001 - Deviation range 2 µm, total deviation range 4 µm, measurement reversal range 2 µm. Spare part: Replacement probe with HM or ruby ball available upon request. Delivery includes: Including clamping pin Ø 8 mm. Use: As an accurate comparison measuring device for checking the target dimension deviation for run-out tests, internal measurements, checking parallelism and flatness, as well as for aligning workpieces.
2. Tesa Dial test indicator kit TESATAST ± 0.4 mm / 01639055
Tesa dial test indicator kit TAST standard with magnetic support, ±0.4 / 0.01 / Ø 28 / M1.4 / 12.53
This kit is ideal for shops and measuring rooms, perfect for difference measurements, and for measuring shape, position, and place deviations.
Sets consist of:
1x Indicator Tesa TAST ±0.4 / 0.01 / Ø 28 / M1.4 / 12.53
1x Mini support with articulated arm 360°
Features:
- Measuring in 2 directions with automatic conversion
- Insensitive to magnetic fields
- Touch probe with carbide ball
- 240° swivelling, replaceable
- Can be clamped with 3 dovetail strips
- Dial face rotatable
Package contents:
Delivered in a case including touch probe M1.4 with carbide ball Ø 2 mm, clamping shaft Ø 8 mm, and a wrench for insert mounting.
3. Tesa Dial test indicator TESATAST ± 0.4 mm / 01810005
Model: High-precision feeler gauge measuring devices with gemstone-supported measuring mechanism in a compact, robust design. The housing and dovetail holding prisms are made from a single piece, resulting in particularly high rigidity against bending. Corrosion protection is provided by a matte chrome finish on the housing. Features a 1 100 reading. TESA ruby-supported measuring mechanism with a carbide measuring ball. Sturdy monoblock housing; non-magnetic. Swiss Made. Note: Additional information DIN 2270: Reading 0.01 - deviation range 10 µm, total deviation range 13 µm, measurement value reversal range 3 µm. Spare part: Replacement probe with carbide or ruby ball available on request. Delivery includes: Including clamping pin Ø 8 mm. Use: As an accurate comparison measuring device for checking the specified dimensional deviation for run-out tests, internal measurements, checking parallelism and flatness, as well as for aligning workpieces.
4. Tesa Dial test indicator TESATAST ± 0.1 mm / S18001695
Tesa dial test indicator TAST standard, ±0.1 / 0.001 / Ø 38 / M1.4 / 12.53
Ideal for shop and measuring room, suitable for difference measurements, measurements of shape, position, and place deviations.
Features:
- Measuring in 2 directions with automatic conversion
- Insensitive to magnetic fields
- Touch probe with carbide ball
- 240° swiveling, replaceable
- Can be clamped with 3 dovetail strips
- Dial face rotatable
Package contents:
Delivered in case including touch probe M1.4 with carbide ball Ø 2 mm, clamping shaft Ø 8 mm, wrench for insert mounting.
5. Tesa Dial test indicator P-LINE 215GL / ±1.2 mm / 01810406
Tesa dial test indicator P-Line standard, 215GL / ±1.2 / 0.002 / Ø 40 / M 1.6 / 36.
Measuring in two directions with automatic conversion. Touch probe with carbide ball, 180° swiveling, replaceable, and dial face rotatable. Can be clamped with dovetail strips.
Package contents:
Delivered in its own case including touch probe M1.6 with carbide ball Ø 2 mm, two clamping shafts Ø 4 / Ø 8 mm, wrench for insert mounting, and declaration of conformity.
6. Tesa Dial test indicator P-LINE 212GL / ±3 mm / 01810403
The P-LINE 212GL feeler gauge from Tesa Technology is a precise length measuring tool designed for versatile applications in metrology. With a measurement accuracy of ±3 mm and a reading of 0.01 mm, it allows for accurate measurements in two directions through automatic switching. The measuring probe is equipped with a carbide ball, ensuring high resistance and durability. The dial is rotatable, enabling flexible reading of measurement results. The device comes in a practical case that includes all necessary accessories, including two clamping shafts and a measurement insert key for easy handling and adjustment. This feeler gauge is ideal for professionals who require precise measurements in industrial and technical applications.
- Automatic switching for measurements in two directions
- Measuring probe with carbide ball, 180° swivel and replaceable
- Rotatable dial for flexible reading
- Supplied in a case with extensive accessories.
7. Tesa Dial test indicator P-LINE 215G / ±0.6 mm / 01810405
The P-LINE 215G feeler gauge from Tesa Technology is a precise length measuring tool designed for versatile applications in metrology. With a measurement accuracy of ±0.6 mm and a reading of 0.002 mm, it enables accurate measurements in two directions through automatic switching. The measuring probe is equipped with a carbide ball, ensuring high resistance and durability. The device offers flexible handling, as the dial is rotatable and the measuring probe can be swiveled and replaced by 180°. The clamping option using dovetail rails ensures secure fixation of the workpiece during the measurement process. The feeler gauge comes in a practical case that also includes a measuring insert key and a declaration of conformity, making usage and storage easier.
- Automatic switching for measurements in two directions
- Measuring probe with carbide ball for increased durability
- Rotatable dial for flexible reading
- Includes measuring insert key and declaration of conformity in the delivery package.

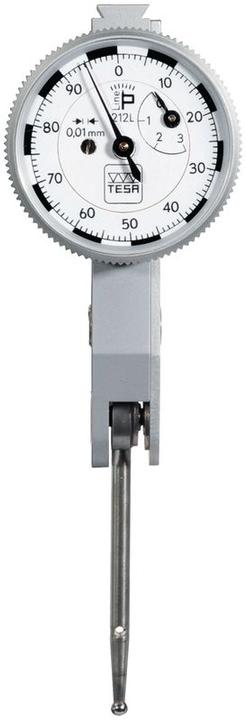

8. Tesa Dial test indicator P-LINE 212L / ±3 mm / 01810402
The P-LINE 212L feeler gauge from Tesa Technology is a precise length measuring tool designed for versatile applications in metrology. With a measurement accuracy of ±3 mm and a reading of 0.01 mm, it allows for exact measurements in two directions through automatic switching. The measuring probe is equipped with a carbide ball, ensuring high resistance and durability. The dial is rotatable, allowing for flexible reading of values. The device comes in a practical case that includes all necessary accessories, such as clamping shanks and a measurement insert key to facilitate handling. The dovetail rails provide additional clamping options to ensure secure and stable positioning during the measurement process.
- Automatic switching for measurements in two directions
- Measuring probe with swivel and replaceable carbide ball
- Rotatable dial for flexible reading
- Includes practical case with accessories.

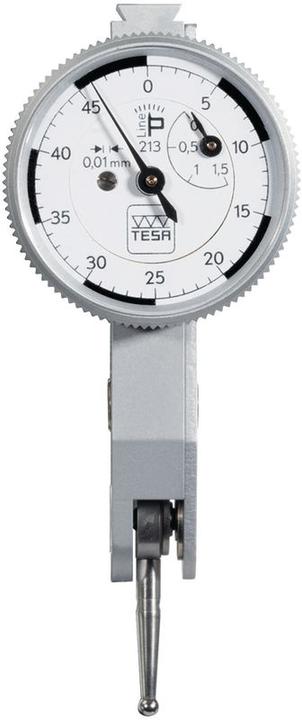

9. Tesa Dial test indicator P-LINE 213 / ±1.5 mm / 01810400
The P-LINE 213 feeler gauge from Tesa Technology is a precise length measuring tool designed for versatile applications in metrology. With a measurement accuracy of ±1.5 mm and a reading of 0.01 mm, it allows for exact measurements in two directions through automatic switching. The measuring probe is equipped with a carbide ball, providing high wear resistance and ensuring a long lifespan. The dial is rotatable, making it easier to read from various angles. The device comes in a practical case that includes all necessary accessories, such as various clamping shafts and a measuring insert key to optimize handling. This feeler gauge is ideal for professionals who require precise measurements in industrial applications.
- Automatic switching for measurements in two directions
- Measuring probe with carbide ball for increased durability
- Rotatable dial for improved readability
- Supplied in a case with extensive accessories.

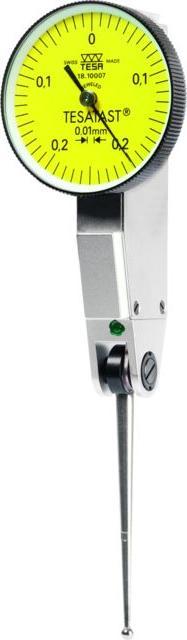

10. Tesa TAST lever gauge 0, 01 mm graduation, 28 mm diameter in case 1810007
The TAST feeler lever measuring instrument from Tesa Technology is a high-precision length measuring tool designed for use in workshops and measuring rooms. With a jewel-bearing measuring mechanism and a robust monoblock housing, this measuring device offers exceptional bending stiffness and durability. The matte chrome finish of the housing provides effective corrosion protection. The device allows for precise measurements of shape, position, and location deviations and is insensitive to magnetic fields. The automatic switching for measurements in two directions and the ability to swivel the measuring probe by 240° enhance flexibility and user-friendliness. The feeler lever measuring instrument comes in a practical case that includes all necessary accessories for immediate readiness for use.
- High-precision measuring mechanism with 0.01 mm reading and a total deviation range of 13 µm
- Robust monoblock housing, anti-magnetic and corrosion-protected
- Automatic switching for measurements in two directions
- Measuring probe with carbide ball for increased accuracy
- Supplied in a practical case with accessories for immediate readiness for use.
Length measuring tool
EUR169,60
Tesa TAST lever gauge 0, 01 mm graduation, 28 mm diameter in case 1810007
mm
