Best Proxxon products in the Machine accessories category
On this page you'll find a ranking of the best Proxxon products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Proxxon Micro Coordinate Table KT 70
Made of high-strength aluminium with backlash-free adjustable dovetail guides. It features three continuous T-slots (MICROMOT standard 12 x 6 x 5 mm). The sliding ruler facilitates the positioning of the cross slide. Handwheels with a scale ring adjustable to zero: 1 U = 1.0 mm, 1 graduation line = 0.05 mm feed rate. The pictured clamping claws and fastening elements for MB 140/S, MB 200, and TBM 220 belong to this range.
2. Proxxon Roughing attachment
For Micromot devices with a 20 mm system fitting. Suitable for grooving, milling grooves, and edge milling. Can be used with a parallel stop (maximum extension 150 mm), for circular milling with a centering pin (100 - 400 mm), or freehand. Features an adjustable depth stop with preset stroke. Also ideal as a drilling aid for round parts through the prism in the guide plate.

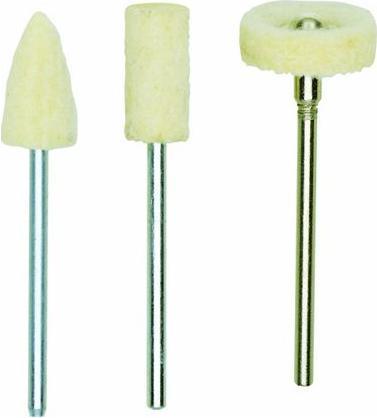

3. Proxxon Polishing pin bullet
Felt polishing sticks and felt wheels are ideal for pre-polishing and high-gloss polishing of metal, gold, silver, brass, and aluminum using polishing paste. They are also suitable for final polishing in mold and tool making. Polishing should be done at low speed. Hard polishing paste can be softened with oil or slightly warmed. The shank has a diameter of 2.35 mm. These products are suitable for polishing and smoothing surfaces and can be used on precious metals, non-ferrous metals, stainless steel, glass, porcelain, wood, rubber, and plastic. The bullet shape is particularly well-suited for working in tight interiors.

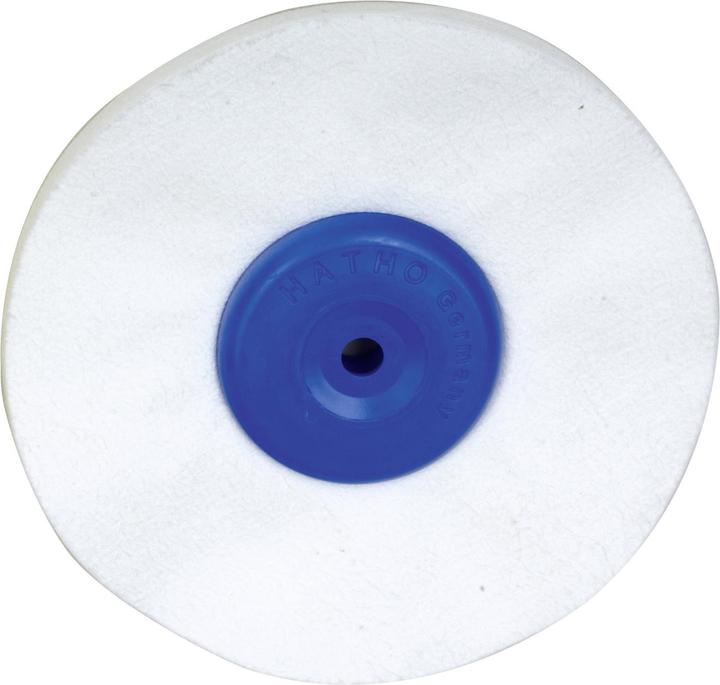

4. Proxxon Polishing Buff
The microfiber polishing pad is suitable for use with the Proxxon PM 100 polishing machine. It is made from particularly soft, 15-layer microfiber material, making it ideal for polishing various precious and non-precious metals as well as plastics to a shine. Due to its soft and flexible nature, this pad can reach even hard-to-access areas. The application should only be done with polishing paste or polishing emulsion.
5. Proxxon TKS 360 circle cutter holder 1 pc.
The TKS 360 circle cutting holder from Proxxon is a high-quality accessory set designed for precise circular cuts. It allows for the exact creation of cylinders and truncated cones with high repeat accuracy. The holder is made from anodized aluminum, ensuring a solid and durable construction. A standout feature is the stepless, tool-free height adjustment, which allows for easy adaptation to different workpiece diameters. The generously geared transmission (3:1) facilitates comfortable cutting without the user needing to reposition the knob. The device can be easily moved in the table groove to select the desired diameter. Additionally, the ergonomic handle provides a secure grip during operation, further enhancing usability.
- Precise creation of cylinders and cones
- Stepless, tool-free height adjustment
- Generously geared transmission (3:1) for comfortable cutting
- Ergonomic handle for a secure grip.

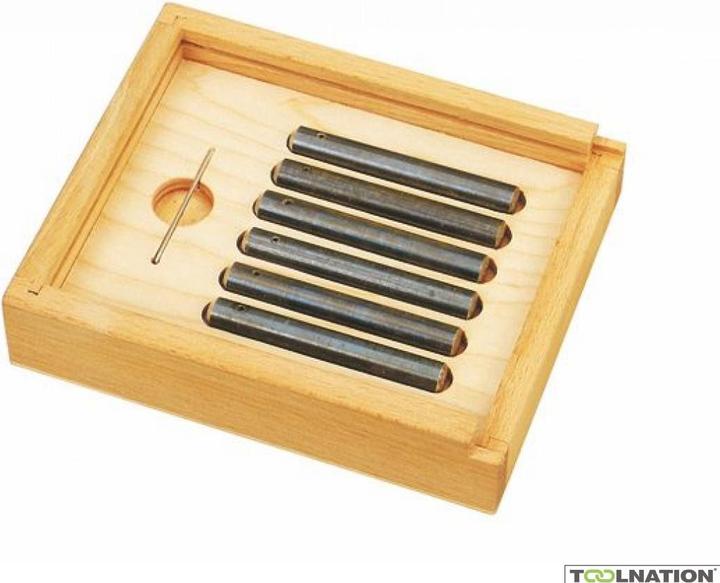

6. Proxxon Adapter set for drill sharpener
Often, drill sharpening machines only start from a drill size of 3 mm, as it is not possible to securely clamp drills with a diameter of less than 3 mm in the sharpening machine. Proxxon has considered this and offers an adapter set for spiral drills under 3 mm. The adapters are suitable for spiral drills ranging from 1.5 mm to 3 mm. Drills over 3 mm can then be used in the drill sharpener without an adapter. The adapters come in a small wooden box with a sliding lid, making storage easier.
7. Proxxon Cross table KT 150
Cross table with precisely milled dovetail guides, making it suitable for metalworking as well. Ideal for grooving and milling of tool steel, non-ferrous metals, plastics, and wood. With this cross table made of high-strength aluminum die-cast, the drill stand can be quickly converted into a 3-axis milling machine. The precise feed allows for accurate work down to hundredths of a millimeter. It's hard to imagine anything better for model making or precision engineering. Suitable clamping jaws and precision prisms are also available. Each rail has a locking mechanism. The guides are adjustable without play. Adjustment is made via two control wheels with an adjustable zero position. The work surface is planed flat and features three continuous T-slots according to Micromot standards. A stop with predefined fits (also for 45°) is included. Mounting screws and a clamp are included in the delivery.

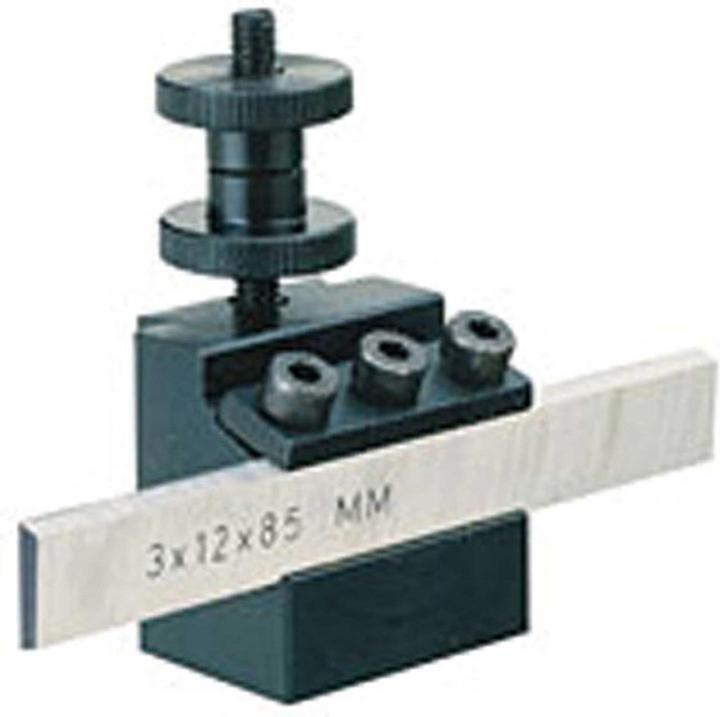

8. Proxxon Steel holder element for PD 400
For the PD 400 quick-change system. Allows for cutting workpieces to length and for grooving. With cobalt-containing HSS blade (12 x 3 x 85 mm). Material: Blade: cobalt-containing HSS steel.

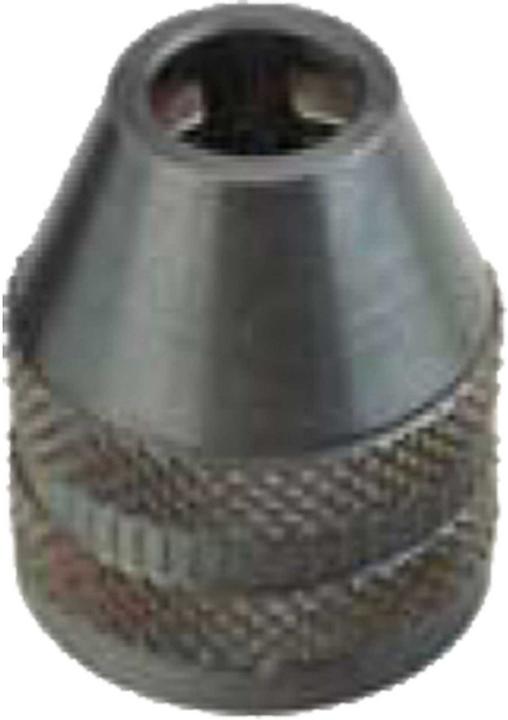

9. Proxxon 3-jaw drill chuck
Chuck for hand-held Micromot devices. Clamping range 0.3 - 3.2 mm. Suitable for Micromot devices. The Proxxon 3-jaw chuck made of steel has a clamping range of 0.3 to 3.2 mm, making it particularly well-suited for working with various shanks. Compared to the tensioned steel collets, they offer the advantage of allowing tools to be changed much faster and more comfortably.

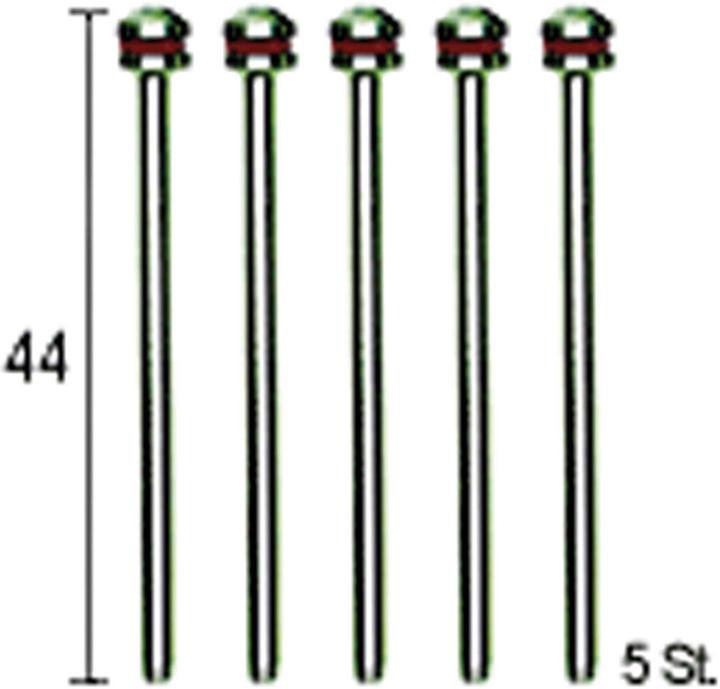

10. Proxxon 5 work arbor shank (Ø x L
The replacement holders for saw blades, cutting discs, and polishing attachments are ideal for accessories from the Proxxon Micromot series. The high-quality construction from stainless steel ensures a long lifespan. Material: Stainless steel. Designed for the neat storage of micro drills, grinding pins, brushes, and other rotating tools with a shaft diameter of 2.35 - 3.2 mm.
