Best Röhm products in the Machine accessories category
On this page you'll find a ranking of the best Röhm products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

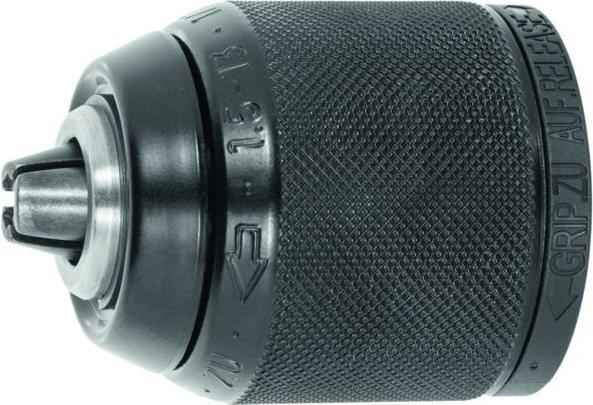

1. Röhm Drill chuck
This drill chuck is a robust and versatile machine accessory designed for use with cordless drills, screwdrivers, and mains-powered drills. It features a metal housing and radial locking mechanism, ensuring durability and secure operation. The chuck is impact-resistant and equipped with dust protection, making it suitable for demanding tasks.
Highlights:
- Compact design reduces the overall head weight of the machine
- Carbide-tipped clamping jaws for enhanced grip and longevity
- Compatible with both clockwise and counterclockwise rotation

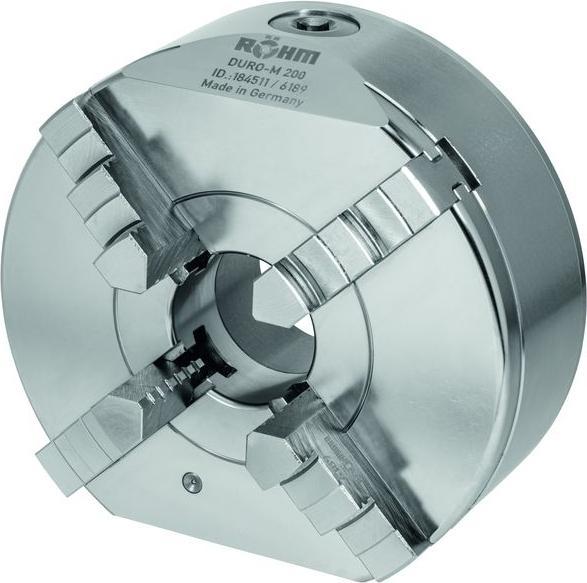

2. Röhm Four-jaw lathe chuck, steel, cylindrical centring mount, DIN 702-4, outer-⌀ A: 250mm
Short description: The DURO-M is a manually operated chuck with a flat spiral and through hole. It is primarily used on conventional lathes for the machining of turned parts. Technical features: Chuck body (as well as all other components) made of steel; centrally clamped via flat spiral; flat spiral forged in the die and highly tempered, thread flanks ground on both sides; jaws ground for concentricity in the chuck; factory-determined zero play as accuracy drive; the maximum permissible speed is set so that at maximum clamping force and when using the heaviest associated jaws, one-third of the clamping force remains as residual clamping force. The jaws must not protrude beyond the outer diameter of the chuck. The chucks must be in perfect condition. Furthermore, the regulations according to DIN 6386 Part 1 apply. Clamping force according to DIN 6350: The clamping force is the sum of all jaw forces acting radially on the workpiece while at rest. The specified clamping forces are guideline values. They apply to chucks in perfect condition that are lubricated with Röhm grease F80. Delivery includes: Chuck, chuck key, jaws. Areas of application: Conventionally clamping horizontal and vertical lathes as well as milling machines, rotary tables, and dividing heads. Mainly used in single or small series production or repair workshops. Clamping of rotationally symmetrical parts for turning and milling operations. Advantages: High concentricity accuracy up to 0.02; jaws are fundamentally blued; minimal interference contour; high force transmission; drip edge for coolant. Further information: The Duro-M Ø250 is a manually operated 4-jaw chuck with a flat spiral and through hole Ø76, drilling and turning jaws, cylindrical mount (DIN 6350, Form A), ZA 200. It is primarily used on conventional lathes for the machining of turned parts.
Machine accessories
EUR1639,57
Röhm Four-jaw lathe chuck, steel, cylindrical centring mount, DIN 702-4, outer-⌀ A: 250mm

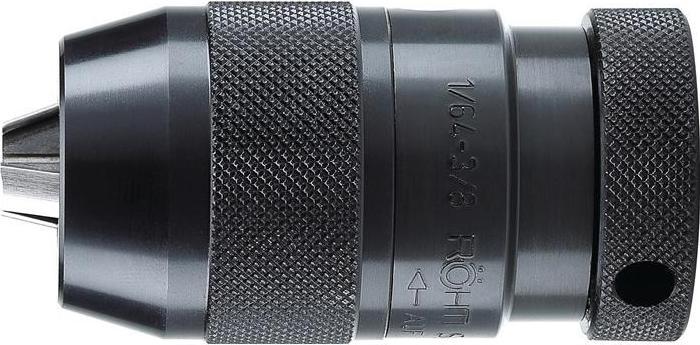

3. Röhm Keyless drill chuck
ROEHM Quick-action chuck Spiro 134, Size 16/ B18A 3 - 16
With inside taper as per DIN 228, self-retightening.
Wearing parts hardened and ground.
Usage: Keyless drill chucks for self-guided drilling machines and drill presses with tapered holder. The drill bit can be clamped by hand simply and quickly.
Concentricity precision: 0.05 mm.

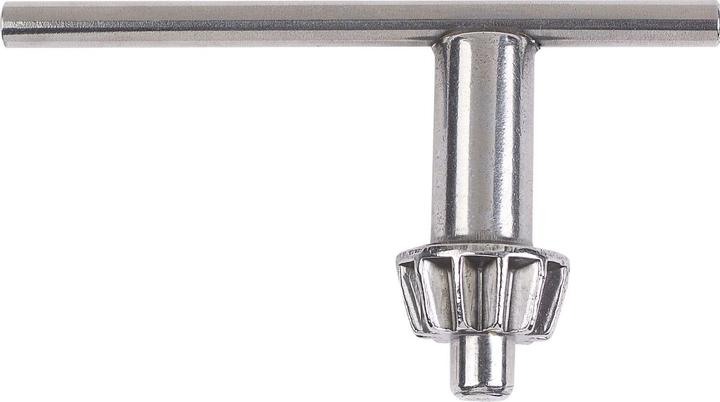

4. Röhm Key for drill chucks
ROEHM Replacement key to ROECT drill chuck, Type S1
Key with DIN-gearing 6349 for key-type drill chucks.

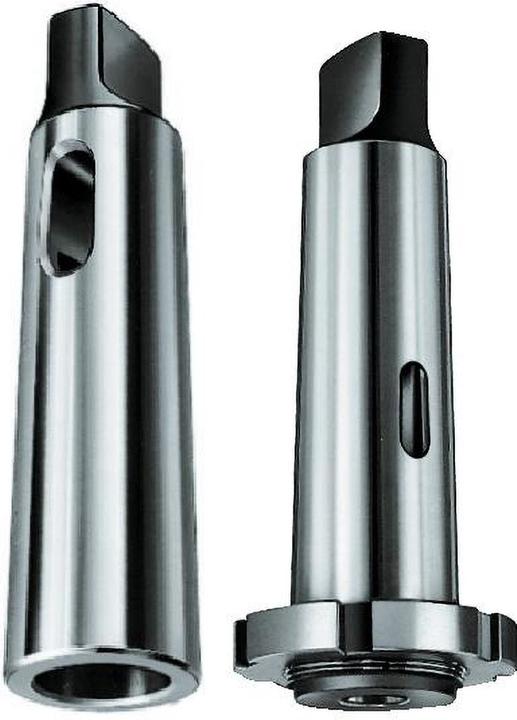

5. Röhm 262 Reducing sleeve, outer morse taper MK 4 / MK 3, inner morse taper, DIN2185
Sleeve fully hardened, inner and outer taper round ground true to gauge.Outer morse taper: MK 4DIN: 2185Inner morse taper: MK 3Type: 262Brand: RöhmContents (ST): 1.
Machine accessories
EUR26,31 EUR26,31/1pcs.
Röhm 262 Reducing sleeve, outer morse taper MK 4 / MK 3, inner morse taper, DIN2185
6. Röhm Top jaw set AB Duro
Execution: Ground contact surface, blued. Non-stepped, for turning individual clamping diameters. Finely machined contact surface, unblued. Note: Jaw inserts made of aluminum, available upon request. Use: Since the jaws can be changed or adjusted to the desired diameter within seconds, it makes sense to have several jaw units ready for use at the machine. This minimizes setup times. The jaw units consist, for example, of several sets of base jaws with non-stepped soft jaw inserts that are turned to the desired diameters. This rationalization effect is essential not only for CNC machines but also for any lathe. Designed to screw onto hardened base jaws. For clamping operations of irregularly shaped or already machined workpieces that must not be damaged. The jaws are machined according to the shape of the workpiece.

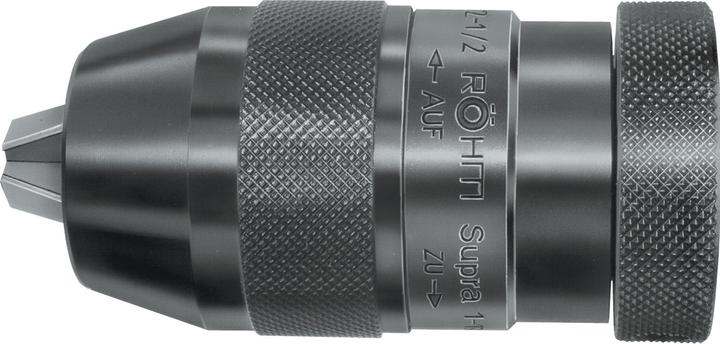

7. Röhm Supra S quick-action drill chuck
Self-clamping, light type, with internal thread, for clockwise rotation. Further technical information: sense of rotation for clockwise rotation. Supplied without locking screws.

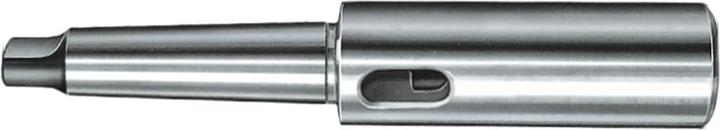

8. Röhm VLH extension sleeve Outer morse taper MK3, ground inner morse taper MK3
Sleeve fully hardened, inner and outer cone groundBrand: RöhmInner morse taper: MK 3Outer morse taper: MK 3Type: VLHWeight(g): 1000Total length(mm): 215Contents (ST): 1.
Machine accessories
EUR44,40 EUR44,40/1pcs.
Röhm VLH extension sleeve Outer morse taper MK3, ground inner morse taper MK3

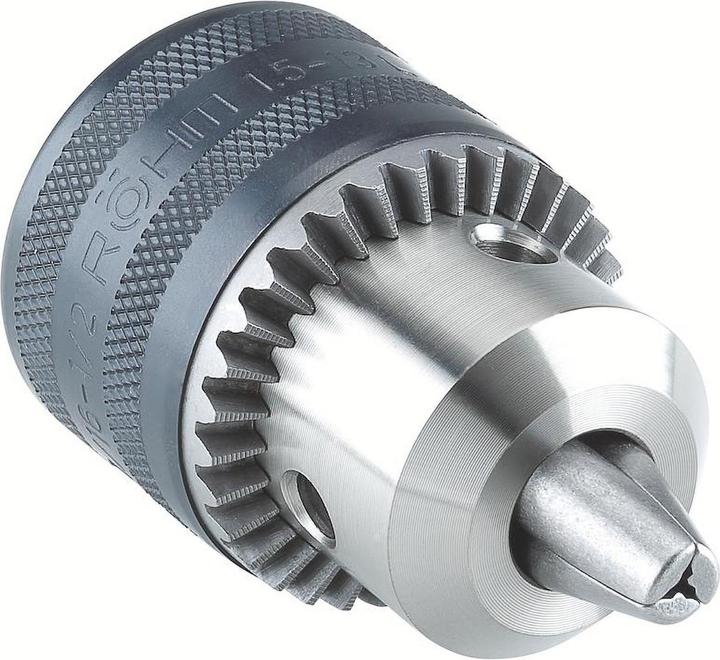

9. Röhm Gear rim drill chuck Prima 10-3/8
Short description: Impact-resistant keyless chuck with key. Cone or threaded mount according to DIN ISO 10887 (toothing according to DIN 6349). Designed for both clockwise and counterclockwise rotation. PRIMA-L: Lightweight design with metal sleeve.
Technical features: Hardened keyholes and clamping prisms in versions -I, -S, -M.
Application areas PRIMA-L: Universally applicable on DIY drill machines.
Advantages: High runout accuracy of up to 0.15 mm. Increased clamping force through a proven gear principle using a chuck key.
Additional info: Prima L keyless chuck, size 10L, mount 3/8"-24, clamping range 1-10.

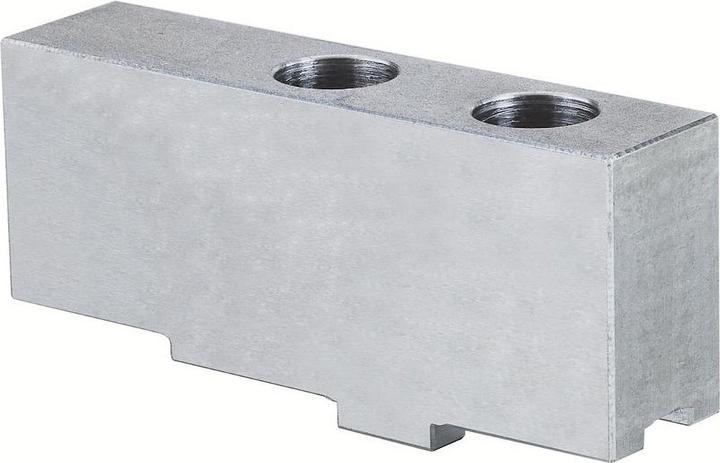

10. Röhm Top jaw set AB Duro for chuck-Ø 200 mm ungraded unhardened
Execution: Ground contact surface, blued. Unstepped, for turning individual clamping diameters. Finely machined contact surface, unblued. Note: Jaw inserts made of aluminum, available on request. Usage: Since the jaws can be changed or adjusted to the desired diameter within seconds, it is practical to have several jaw units ready at the machine. This minimizes setup times. The jaw units consist, for example, of several sets of base jaws with unstepped soft jaw inserts that are turned to the desired diameters. This rationalization effect is essential not only for CNC machines but also for any lathe. Designed for screwing onto hardened base jaws. For clamping operations of irregularly shaped or already machined workpieces that must not be damaged. The jaws are machined according to the shape of the workpiece.
