Best selling Motion sensors from Esylux
On this page you'll find a ranking of the best Esylux products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Esylux PD-C360i/8miniKNX BK Ceiling-mounted presence detector KNX sw
The Esylux PD-C360i/8 mini KNX BK is a highly advanced ceiling presence detector specifically designed for use in KNX bus systems. With a 360° detection range and a reach of up to 8 meters at a recommended mounting height of 3 meters, this presence detector offers a reliable solution for monitoring indoor spaces. Its compact design, with a diameter of only 33 mm, allows for discreet integration into various environments. The detector supports a variety of functions, including daylight-dependent constant light control, ensuring high energy efficiency. Easy parameterization and function settings are done via ETS software, allowing for flexible adaptation to individual requirements. Additionally, the detector can be used as both a master and a slave device, facilitating integration into existing systems.
- 360° detection range for comprehensive motion monitoring
- Energy-efficient, daylight-dependent constant light control
- Easy parameterization via ETS software
- Compatible with KNX bus systems for flexible integration
- Night light function for internal detector LEDs.
2. Esylux Ceilings.PDC360i/8 mini KNX whiteRemovableplane detector 360
KNX mini presence detector with a 360° field of detection for recessed ceiling mounting. It has a range of up to 8 m in diameter at a recommended mounting height of 3 m. This device can be used in the KNX (EIB) bus system, TP (2-wire bus) in conjunction with other KNX components. Parameter and function settings are made via ETS (Engineering Tool Software). It allows for manual, temporary switching or dimming via user remote control.
Features include constant light control or switching, heating, ventilation, and air conditioning (HVAC) control, a disable object for HVAC, light value output (2 bytes), status message, presence output for HVAC, and the ability to function as a "master" or "slave." It also includes KNX push-button control for light channels, fully or semi-automatic operation, orientation light with selectable light values of 10% to 50%, test mode, correction factor for room light, and a night light function. Targeted blanking of areas is possible with the enclosed Li.
3. Esylux Motion detector MDC360i/8 white
Motion detector with a 360° detection range for ceiling mounting. Range of up to 8 meters in diameter at a recommended mounting height of 3 meters (maximum mounting height 5 meters) for use in small rooms and passageways with little or no daylight. 16 A high-performance relay, specifically designed for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. Factory preset program for immediate operational readiness. Automatic light control for applications with little or no daylight. Easy programming via remote control with "blue mode" technology or via adjustment elements. Integrated switch for setting via remote control or adjustment knob - prevents misuse and acts as sabotage protection. Suppression of interference sources by reducing sensitivity via DIP switch. Additional button.
4. Esylux Motion detector MD 200 white
Motion detector with a 200° detection range for comfortable lighting control. Single-hand plug socket installation for quick and easy mounting. Double membrane cable entry. Connection base with ample wiring space and cable entry options from above, below, or from the back. Included terminal block for wiring the protective conductor. Adjustable detection and range through rotatable and tiltable ball head technology. Zero-cross switching: extends the lifespan of relays and light sources with electronic ballasts (e.g., fluorescent lamps, LEDs) by gentle switching at the zero crossing. Suitable for wall mounting. Special base for indoor and outdoor corner mounting available as an accessory.
5. Esylux ESY PDC360i/8 mini recessed ceiling presence detector
Mini presence detector with a 360° field of detection for recessed ceiling mounting to switch lighting on demand, thus noticeably reducing energy costs. It has a range of up to 8 m in diameter and features a 16 A high-power relay, especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. The device comes with a permanently stored factory program for immediate operational readiness and offers automatic light control depending on presence and daylight. Easy programming is possible by remote control. Its small compact size requires a mounting hole dimension of only 25 mm in diameter, and it includes a fixed connection cable of 60 cm in length. The new universal ESYLUX clamping technology allows for quick installation in suspended ceilings, lights, flush-mounted boxes, cabinets, etc. It is designed for recessed ceiling mounting in suspended, closed ceilings with enclosed spring clips or a clamping ring, and features an additional push button input.

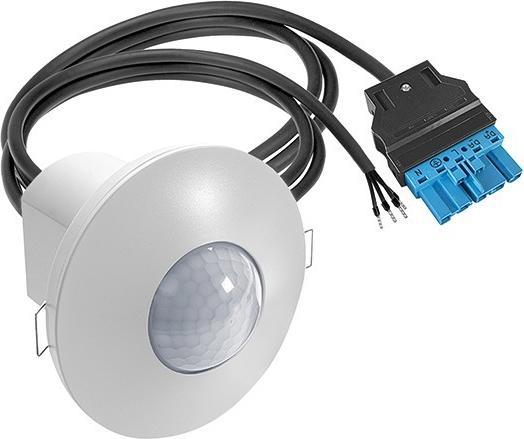

6. Esylux PD-C 360/8 BMS DALI-
ESYLUX ceiling-mounted presence detector PD-C 360: DALI-2 certified ceiling-mounted presence detector as an input device for DALI-2 lighting systems. It enables cross-room lighting management in combination with APC presence detectors. Alternatively, it can be integrated into third-party building management systems with a DALI-2 interface. It features an integrated PIR sensor for DALI-2 commands according to IEC 62386-303 and a light sensor for commands according to IEC 62386-304. There is a pushbutton input for connecting conventional pushbuttons, with pushbutton and switching commands output as DALI-2 commands according to IEC 62386-301 or -302. It allows for surface or recessed ceiling mounting with accessories and includes a 2.0 m pre-assembled WAGO WINSTA® supply and return cable. EAN: 4015120428487.

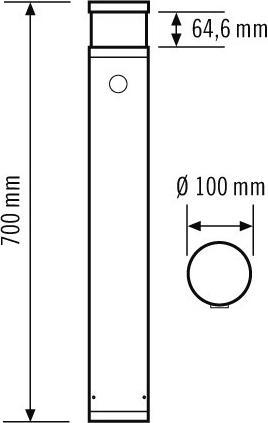

7. Esylux ETSE LED bollard light
8. Esylux Motion detector 230 degrees RC 230i br
Motion detector with a 230° detection area and long range. It features 360° anti-creep protection for gapless detection, which can be switched off by remote control. The device is programmable via remote control, allowing for functions such as continuous light ON/OFF and automatic read-in of the current light value. A permanently stored factory program ensures immediate readiness for operation. An integrated selector switch prevents operating errors by allowing for test function, remote control, and potentiometer setting. It has a one-hand plug-in base mounting and double diaphragm line entry. The concealed connection base offers a large wiring space, and sensor range adjustment is aided by an additional focus LED. Retractable adjustment elements prevent unintentional changes to parameters. Wall or ceiling mounting is possible without accessories, thanks to a swivel joint. Individual areas can be concealed using the enclosed cover cap, which can be cut to size. A special base for inside and outside corner mounting is available as an accessory.

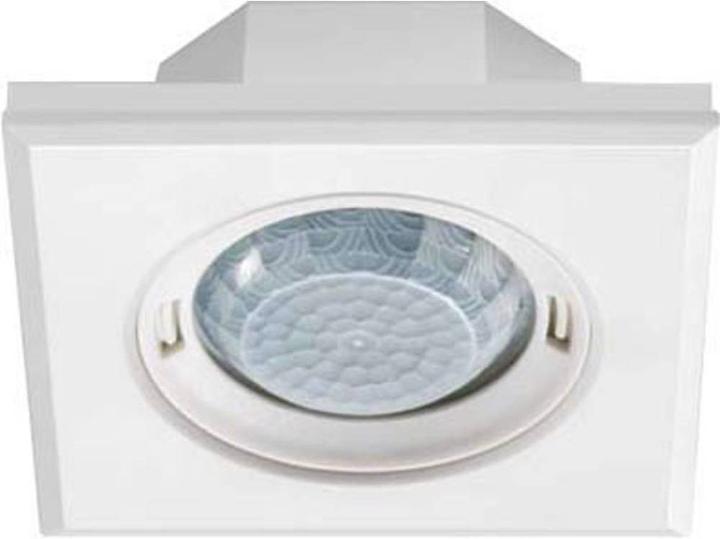

9. Esylux Presence detector PDFLAT 360i/8 SW KNX
KNX design recessed ceiling presence detector with a 360° field of detection. Range of approximately 8 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX (EIB) bus system, TP (2-wire bus) in connection with other KNX components. Parameter and function setting via ETS (Engineering Tool Software). Manual, temporary switching/dimming via user remote control. Communication objects include constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for HVAC, output light value (2 byte), status message, presence output for HVAC, usable as "master" or "slave," KNX push button control for light channels, fully or semi-automatic, orientation light with 2 selectable light values (10% - 50%), test mode, correction factor for room light, and sensitivity sensor adjustable from 1 to 4. Standard version as flush-mounted.
10. Esylux PD BasicCeilingPresenceDetector
Presence detector with a 360° detection area for ceiling mounting. Range of up to 8 m in diameter with a recommended mounting height of 3 m. 10 A high power relay. Zero-crossing switching prolongs the life of relays and lamps in electronic ballasts, such as fluorescent lights and LEDs, by gentle switching at zero-crossing. Factory setting for immediate operational readiness. Automatic light control depending on presence and daylight. Additional pushbutton input. Standard version as a surface-mounted device, with recessed ceiling mounting available with accessories. Extension of the detection area by parallel switching. Targeted blanking of areas using an enclosed lens mask.
