Best Kurth products in the Multimeter category
On this page you'll find a ranking of the best Kurth products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

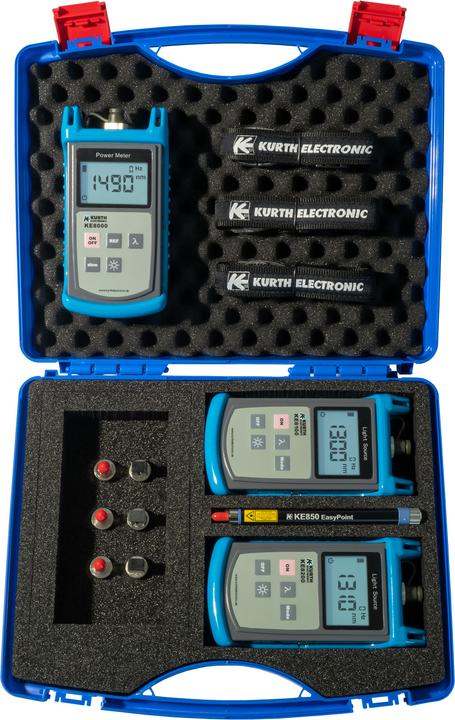

1. Kurth KE8083 Optische Verlustprüfgeräte (OLTS)
The KE8083 Optical Loss Test Set (OLTS) from Kurth Electronic is a versatile and robust measuring device specifically designed for attenuation measurement and fault detection during the installation and maintenance of fiber optic cables. It provides a comprehensive solution for professionals who require precise measurements in various applications. With six calibrated wavelengths (850, 1300, 1310, 1490, 1550, and 1625 nm), the device enables both multimode and singlemode measurements. The 2.4-inch backlit LCD display ensures clear readability of measurement values, even under challenging lighting conditions. The device is compact and user-friendly, making it ideal for field use. The package includes various measuring devices, a light source, and a shock-resistant plastic case, ensuring mobility and protection of the device.
- Six calibrated wavelengths for versatile applications
- Includes multimode and singlemode light sources
- Robust design for field use
- Backlit LCD display for better visibility
- Package includes multiple measuring devices and accessories.
2. Kurth KE7200 Ethernet Performance Tester
The KE7200 is an easy-to-use and cost-effective tester for cable fault detection and troubleshooting in passive or active networks (10/100/1000 Mbit detection).
- RJ11/RJ45/BNC/Coax
- Detects existing speed (10/100/1000 Mbit)
- Wiring error detection including split-pair and length indication for interruption
- Cable length measurement using the TDR method
- Storage of the measurement results
- Power over Ethernet test with maximum load and display of the available power
- Port finder/port assignment at the switch via flashing of the LINK LED
- Listing of active network participants with IP address and name (participant list can also be saved)
- PING test and flooding to selected participants (frame sizes adjustable, with statistics)
- Overvoltage protection up to 100 Volt (device and remote units)
- Up to 32 remote units detectable (2 units are supplied)
Includes PC software (Windows) for managing and printing the measurements (e.g., as customer protocol). Wiring test including split pair, display of external voltage, label length measurement, cable and wire search, active network test via static IP or DHCP, PING function with adjustable frame sizes, POE test, and Windows software for further processing of stored data and for the creation of acceptance reports.
3. Kurth KE2100 Time Domain Reflectometer
Compact and handy cable fault locator. Perfectly suited for localising faults in all types of cables without service, such as twisted pair cabling, telecommunications twisted pairs, coax and electrical cables. The short dead zone and the long range of up to 14 km allow this handy TDR to be used for a wide range of applications.
Technical data :
- AUTO mode for immediate use
- Can be used with all types of cable
- Maximum cable length up to 14 km
- Freeze function and display in metres/feet
- Symmetrical search signal
- Resolution up to 0.3 m
- High-resolution, graphic display
- Sturdy ABS housing
- Storage of measurements and data transfer via Bluetooth
- Overvoltage protection DC 100 V, AC 230 V / 50 Hz
Supplied with :
+ case
+ Test leads (2x 4 mm banana plugs, 2x crocodile clips / 300 V Cat II)
+ Manager software.
4. Kurth KE701 Telco Kit
The cable locator kits consist of Easy Test and Probe, allowing any technician to quickly and contactlessly find any type of cable, wires, and wire pairs without time-consuming stripping work. They can detect faults such as swaps, overvoltages, interruptions, and other disturbances in the cable. The cable locators are suitable for all types of cables, including telephone cables, doorbell wires, data cables of all classes, coaxial cables, and non-energized electrical lines. The ability to inject the search signal onto active telecommunications lines with voltages up to 100 V, along with numerous other features, makes these devices a popular tool among installation companies.

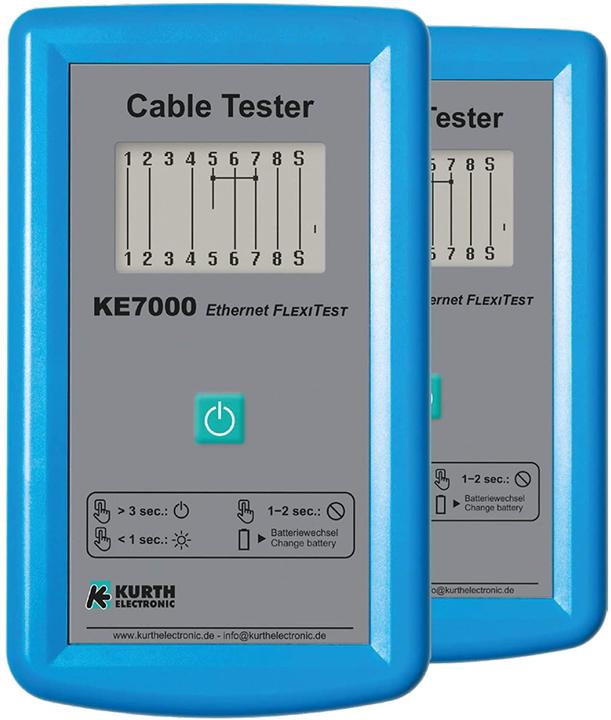

5. Kurth KE7000 UTP/STP Cable Tester
The KE7000 is a cost-effective testing device for patch, LAN, and telecommunications cabling, and with an optional adapter, it can also test coaxial cables. It can test and verify unshielded and shielded connection cables with twisted pairs (UTP and STP cables) in installed networks as well as patch cables. Coaxial cables with BNC and F connectors can be tested for continuity using the RJ45 coax adapter. One device is automatically configured as the master and the other as the slave. The advantage of using two main devices is that the status of the tests can be read from both sides, saving time. With a battery life of up to 100 hours, the testing process rarely needs to be interrupted. Errors such as miswirings, interruptions, short circuits, and shielding faults are displayed on the devices' graphical screens, eliminating the need to awkwardly jot down blinking and illuminated LEDs. The KE7000 provides clear results from both sides.
