Best selling Profiles from RS PRO
Here you’ll find the best Profiles from RS PRO. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular RS PRO options. This page always stays fresh and updates automatically.
1. RS PRO Strut profile
These struts from the RS Pro brand are a modular solution for general workplace furniture and a cost-effective option for lightweight, custom constructions such as racks, partitions, and laboratory setups. They can be cut to length and are compatible with all RS Pro structural system connectors and accessories from the Profile 5 series. This includes everything from T-slots, nuts, and ball locks to lock turns and self-tapping screws, allowing you to create a customized workspace or garage. The 2000 mm long struts have a profile of 20 mm x 20 mm and are equipped with 4 grooves. The struts are made from anodized extruded aluminum alloy, making them lightweight while ensuring strength and durability. For versatility and visual appeal, they are black. To comply with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic control, the product is handled and packaged in controlled environments that prevent damage from electrostatic discharge.

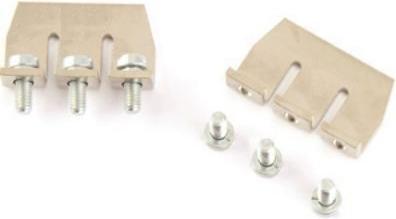

2. RS PRO Jumper Bar for Use with 16-25 Termin
The bridging bar for 16-25 clamps from RS Pro is an essential accessory for DIN rail clamps. It serves as a cover profile and allows for secure and efficient mounting of circuits on the wall. Made in Italy, this product meets the high standards of the industry and is part of the manufacturer's commitment to sustainable practices, as evidenced by the SBTi initiative. The bridging bar is offered as a single piece and is specifically designed for use with clamps from 16 to 25 mm. It is a practical solution for the installation and protection of electrical connections in various applications. With its robust construction, it ensures reliable performance and contributes to safety and efficiency in electrical systems. This product is ideal for professionals who value quality and functionality.

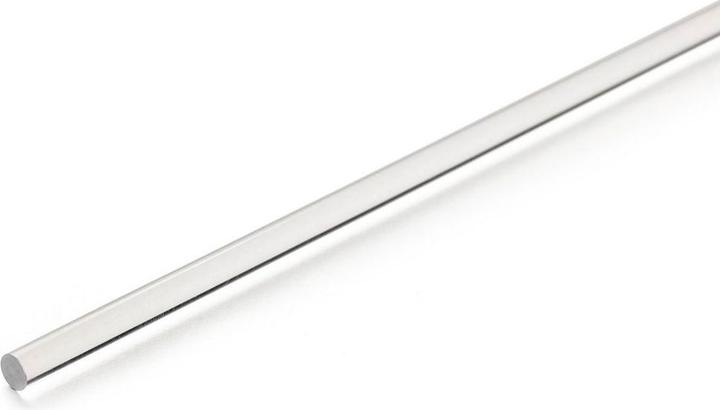

3. RS PRO Clear extruded acrylic rod,1m L 10mm dia
Color: Transparent
Length: 1 m
Material: Extruded Acrylic
Shape: Rod
Diameter of the rod: 10 mm
Density: 1.41 g/cm³
Impact resistance: 18 kJ/m²
Tensile strength: 65 MPa
Flammability class: UL 94 HB
Maximum operating temperature: +70 °C
Acrylic sheets and rods are thermoplastic materials with high chemical resistance, available in cast or extruded variants. Cast acrylic offers excellent surface quality with 92% light transmission and long-term weather resistance without discoloration. Extruded acrylic is machinable, easy to weld, and resistant to impact and weather. It is available as a clear rod and sheet or as a 5 mm thick opaque, translucent sheet.

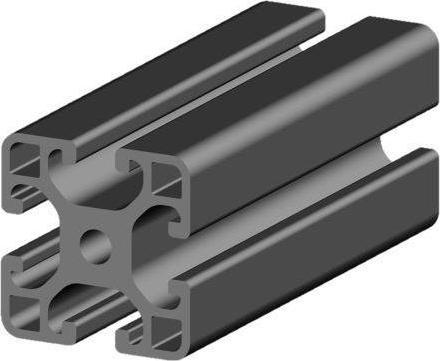

4. RS PRO Profile 6 30x30 1N light 2m
Structural Element Type: Strut Profile
Strut Profile: 30 x 30 mm
Length: 2000 mm
Slot Size: 6 mm
Number of Slots: 3
Material: Aluminum Alloy
Product Family: RS Structural System
Series: Profile 6
Profile 6 – 30 mm x 30 mm 1N. RS Structural System 30 mm x 30 mm Profile 6 Element 1N, 2 m long, compatible with the Profile 6 series. RS Pro structural system profiles, compatible with Profile 5, Profile 6, and Profile 8, are suitable for general workplace furniture system construction and offer strong, lightweight, easily interchangeable elements with a variety of profile types. The elements are part of a modular system of components that can be assembled into a variety of furniture structures such as workbenches, protective enclosures, general housings, and other workplace devices. RS Pro structural system profiles are made from extruded anodized aluminum and are available in various lengths.
5. RS PRO Profile 8, 80x80 Light, 8 groove, 2m
Structural element type: Strut profile
Strut profile: 80 x 80
Length: 2000 mm
Slot size: 8 mm
Number of slots: 8
Material: Aluminum alloy
Product family: RS Structural System
Series: Profile 8
Profile 8 - 80 mm x 80 mm. RS structural system element, 80 mm x 80 mm, Profile 8, available in lengths of 2 m and 3 m, compatible with the Profile 8 series. RS Pro structural system profiles, compatible with Profile 5, Profile 6, and Profile 8, are suitable for general workstation furniture system construction and offer strong, lightweight, easily replaceable elements with a variety of profile types. The elements are part of a modular system of components that can be assembled into a variety of furniture structures such as workbenches, protective enclosures, general housings, and other workstation devices. RS Pro structural system profiles are made from extruded anodized aluminum and are available in various lengths.
6. RS PRO LED light strip, 230 V / 18 W, 23.7 mm x 75 mm x 600 mm
The LED light bar from Rs Pro is a powerful and efficient lighting solution that is ideal for various applications. With a length of 600 mm and a brightness of 1440 lm, this bar provides bright and even illumination. It operates at a power of 18 W and has a color temperature of 4000 K, producing a cool white light tone. The light bar is made of aluminum, which not only ensures an appealing appearance but also provides durability and corrosion resistance. Its compact design, with a depth of 23.7 mm and a width of 75 mm, allows for easy integration into different environments, whether in living spaces, offices, or commercial areas. This LED light bar is an environmentally friendly choice that meets the demands of modern lighting.
- High brightness of 1440 lm for optimal illumination
- Energy-efficient performance of 18 W
- Corrosion-resistant aluminum housing for durability
- Cool white color temperature of 4000 K for clear visibility.
7. RS PRO Alu-Strebenprofil
The aluminium strut profile from RS Pro is a versatile and robust structural element that is ideal for various applications in construction and mechanical engineering. With a size of 30 x 60 mm and a length of 2 metres, this profile offers high stability and flexibility. The anodised aluminium surface not only provides an attractive appearance, but also protects the material from corrosion and wear. The six 8 mm grooves allow for easy and secure mounting of accessories and other components, making it easy to customise to specific requirements. This profile is an excellent choice for anyone looking for a reliable and durable solution for their projects.
8. RS PRO PTFE plastic rod stock,500mm L 50mm dia
Color = Opaque
Length = 500mm
Material = PTFE
Shape = Rod
Rod diameter = 50mm
Density = 2.18 → 2.21g/cm³
Tensile strength = 25 MPa
Flammability class = UL 94 V-0
Operating temperature max = +260°C
The PTFE sheets included in the delivery have a size tolerance of ±5 mm. PTFE (extruded). Extremely high chemical resistance Wide temperature range - maximum operating temperature 260 °C Low friction and low adhesion Radiation resistant Excellent dielectric property.

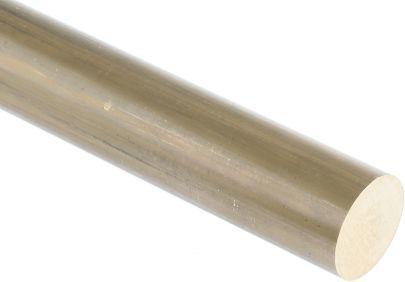

9. RS PRO Brass rod stock,500mm L 21mm dia
Form: Rod
Length: 500 mm
Diameter of the rod: 21 mm
Tolerance - Length: ± 2 mm
Thermal conductivity: 123 W/m.k at 100°C
BS 2874/CZ121M (1986) BS EN 12164/CW614N. Rod, bar, and plate, brass. The RS Pro series brass rods, bars, and plates are excellent for machining and have high corrosion resistance. They are suitable for various applications. Features and benefits include load-bearing capacity at all temperatures, corrosion resistance, low magnetic permeability, as well as good machinability and formability.
10. RS PRO Jumper Bar for Use with 10 Terminal
The RS PRO bridging bar is an essential accessory specifically designed for use with 10 terminal blocks from RS PRO. Made from a robust copper alloy, this bar provides a reliable connection and ensures a stable electrical link between the terminal blocks. The silver surface not only gives the bar an appealing appearance but also contributes to its durability and corrosion resistance. This bridging bar is ideal for applications where a secure and efficient connection is required. It meets the requirements for use in various electrical installations and is an indispensable element for professionals who value quality and reliability.
- Made from high-quality copper alloy for optimal conductivity
- Designed for use with 10 terminal blocks from RS PRO
- Provides a stable and reliable electrical connection.
