Shower channels
EUR894,74
Dallmer shower channel CeraLine Nano W 1900mm, 524850, DN 50 Height 68mm
2140 mm
Best Dallmer products in the Shower channels category
On this page you'll find a ranking of the best Dallmer products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Dallmer shower channel CeraLine Nano W 1900mm, 524850, DN 50 Height 68mm
Dallmer shower channel CeraLine Nano W 1900 is a line drainage system made of stainless steel 1.4301 for wall mounting. It features height-adjustable adjusting screws for covers measuring 1900 x 40 mm. The channel body has a self-cleaning effect due to its internal slope, with installation dimensions of 2000 mm x 124 mm and a width of 50 mm. It includes a sanded flange for secure addition of composite seals according to ZDB guidelines, sound insulation mounting feet for height adjustment, sound-insulating wall mountings, sound insulation tape, butyl sealing tape, building protection, and a tile stop for even tile laying. The product comes with two pre-assembled polypropylene drain housings and a lateral drain connection DN 50 with odour and cleaning closure. The expiry time is measured according to DIN 1253: 0.82 l/s.

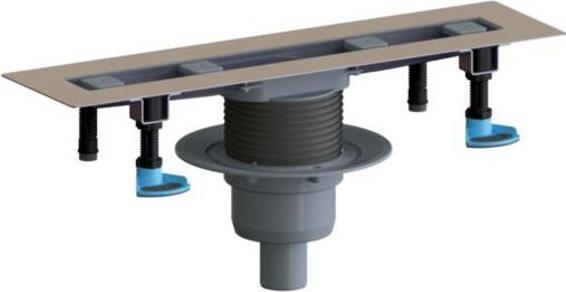

2. Dallmer shower channel CeraLine vertical F 521675, 1200mm, DN 50 height 110mm
Dallmer shower channel CeraLine vertical F 1200 linear drainage made of stainless steel V2A for surface mounting. It features height-adjustable adjusting screws for covers measuring 1200 x 40 mm, with a gutter body that has a self-cleaning effect due to its internal slope. The installation dimensions are 1300 mm x 155 mm with a width of 50 mm. It includes a sanded flange for safe addition of composite seals according to ZDB leaflet, sound insulation mounting feet for height adjustment, building protection, tile stop for even tile laying, and fixing aids for tile edging profiles. The product comes with a pre-assembled drain housing made of polypropylene, a drain connection DN 50 longitudinally, and an odour- and cleaning lock. The drainage capacity is 0.8 l/s.
Shower channels
EUR514,73
Dallmer shower channel CeraLine vertical F 521675, 1200mm, DN 50 height 110mm
1450 mm
3. Dallmer Cover CERALINE DESIGN, stainless steel, 700 mm
The CERALINE DESIGN cover made of stainless steel is a high-quality solution for shower drains. With a length of 700 mm and a width of 40 mm, it is specifically designed for floor coverings with a height of 5 to 17 mm. The material used, stainless steel 1.4301, is characterized by its durability and corrosion resistance, making it ideal for use in damp environments. The cover meets the requirements of load class K 3, which means it can withstand a maximum load of up to 300 kg. These features make the CERALINE DESIGN cover not only functional but also an aesthetic element in modern bathrooms. Manufactured in Germany, this product offers a combination of quality and design that is suitable for both private and commercial applications.
4. Dallmer shower channel CeraLine Nano W 1300mm, 524799, DN 50 height 68mm
Dallmer shower channel CeraLine Nano W1300 is a drainage system made of stainless steel (1.4301) for wall mounting. It features height-adjustable adjusting screws for covers measuring 1300 x 40 mm. The channel body has a self-cleaning effect due to its internal slope and installation dimensions of 1400 mm x 124 mm. It includes a 50 mm wide, sanded flange for safe mounting of bonded seals according to ZDB data sheet, sound insulating mounting feet for height adjustment, sound insulating wall mountings, sound insulating tape, butyl sealing tape, building protection, and a tile stop for even tile installation. Additionally, it comes with two pre-assembled polypropylene drain housings and a lateral drain connection DN 50 with an odour and cleaning seal. The performance is measured according to DIN 1253 at 0.82 l/s.
Shower channels
EUR771,49
Dallmer shower channel CeraLine Nano W 1300mm, 524799, DN 50 height 68mm
1530 mm
5. Dallmer Cover CeraLine Individual, 520784, 1100mm
The CeraLine Individual cover is a high-quality solution for covering shower channels, specifically designed to accommodate individual floor coverings. With a length of 1100 mm and a width of 40 mm, it offers optimal adaptation to various installation requirements. Made from stainless steel 1.4301, this product is characterized by its durability and resilience, making it ideal for use in humid environments. The cover is suitable for floor coverings with a thickness of 16 to 29 mm and meets load class K3, which means it can withstand a maximum load of up to 300 kg. These features make the CeraLine cover a reliable choice for modern bathroom designs that combine both functionality and aesthetics. The cover is manufactured in Germany and meets high-quality standards, making it a valuable addition to any construction or renovation project.

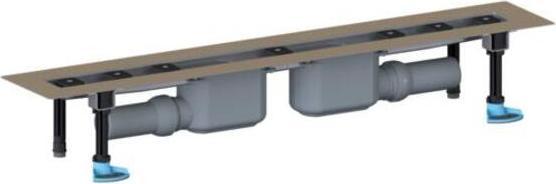

6. Dallmer shower channel CeraLine 2 drains F 521811, 900mm, DN 50 overall height 110mm
Dallmer shower channel CeraLine 2 F 900Line drainage made of stainless steel 1.4301 for surface mounting. It features height-adjustable adjusting screws for covers measuring 900 x 40 mm. The channel body has a self-cleaning effect through an internal slope, with installation dimensions of 1000 mm x 154 mm. It includes a 50 mm wide, circumferential, sanded flange for safe absorption of compound seals according to ZDB data sheet. The product comes with sound-decoupling mounting feet for height adjustment, building protection, and a tile stop for even tile laying. It includes two pre-assembled drain housings made of polypropylene with removable odour and cleaning seals, and two oppositely arranged lateral drain connections DN 50 with a ball joint allowing for 0-15 degrees adjustment. The drainage capacity according to DIN 1253 is 1.4 l/s.
Shower channels
EUR653,44
Dallmer shower channel CeraLine 2 drains F 521811, 900mm, DN 50 overall height 110mm
1250 mm

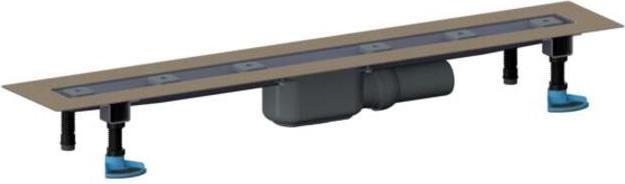

7. Dallmer shower channel CeraLine PLAN W 1300mm, 524584, DN 50 Overall height 90mm
Dallmer shower channel CeraLine Plan W1300 is a drainage solution made of stainless steel (1.4301) for wall mounting. It features height-adjustable adjusting screws for covers, a channel body measuring 1300 x 40 mm with a self-cleaning effect due to its internal slope, and mounting dimensions of 1400 mm x 155 mm. The 50 mm wide sanded flange ensures safe mounting of composite seals according to ZDB data sheet 1/2010. It includes sound-insulating mounting feet for height adjustment, sound-insulating wall fastenings, sound-insulating tape, butyl sealing tape, building protection, a tile stop for even tile laying, and fixing aids for tile end profiles. The product comes with two pre-mounted drain housings made of polypropylene, featuring a removable odour and cleaning seal, and a drain connection DN 50 lateral with a ball joint allowing for 0-15 degrees adjustment. Drain performance is in accordance with DIN 1253, rated at 1.2 l/s.
Shower channels
EUR771,49
Dallmer shower channel CeraLine PLAN W 1300mm, 524584, DN 50 Overall height 90mm
1630 mm
8. Dallmer shower channel CeraLine PLAN F 1200mm, 523082, DN 50 Overall height 90mm
Dallmer shower channel CeraLine Plan F 1200 is a line drainage system made of stainless steel 1.4301 for surface mounting. It features height-adjustable adjustment screws for covers, a channel body measuring 1200 x 40 mm, and a self-cleaning effect through an internal slope. The installation dimensions are 1300 mm x 155 mm, with a 50 mm wide circumferential sanded flange for secure addition of composite seals according to ZDB data sheet 1/2010. It includes sound-insulating mounting feet for height adjustment, building protection, and a tile stop for even tile laying. The pre-assembled drain housing is made of PP and comes with a removable odor and cleaning cap. The drain connection is DN 50 lateral with a ball joint allowing for 0-15 degrees adjustment. The performance expiry is according to DIN 1253: 0.7 l/s.
Shower channels
EUR514,73
Dallmer shower channel CeraLine PLAN F 1200mm, 523082, DN 50 Overall height 90mm
1445 mm
9. Dallmer shower channel CeraLine PLAN W 2000mm, 524652, DN 50 Overall height 90mm
Dallmer shower channel CeraLine Plan W 2000 is a line drainage system made of stainless steel 1.4301 for wall mounting. It features height adjustable screws for covers, a channel body measuring 2000 x 40 mm with a self-cleaning effect due to its internal slope, and installation dimensions of 2100 mm x 155 mm with a width of 50 mm. The sanded flange ensures safe addition of composite seals according to ZDB data sheet 1/2010. It includes sound decoupling mounting feet for height adjustment, sound-insulating wall mountings, sound insulation tape, and butyl sealing tape. Additional features include building protection, a tile stop for even tile laying, and fixing aids for tile edging profiles. The system comes with two pre-assembled drain housings made from polypropylene, equipped with removable odour and cleaning seals. The drainage connection is DN 50 lateral with a ball joint allowing a range of 0-15 degrees. The drainage capacity is in accordance with DIN 1253: 1.2 l/s.
Shower channels
EUR909,51
Dallmer shower channel CeraLine PLAN W 2000mm, 524652, DN 50 Overall height 90mm
2235 mm
10. Dallmer shower channel CeraLine Nano F 1400mm, 524720, DN 50 overall height 68mm
Dallmer shower channel CeraLine Nano F1400Line drainage made of stainless steel 1.4301 for surface mounting. With height-adjustable adjustment screws for covers 1400 x 40 mm. Channel body with self-cleaning effect through internal gradient. Installation dimensions 1500 mm x 155 mm. With 50 mm wide, circumferential sanded flange for safe mounting of composite seals according to ZDB data sheet 1/2010. Sound-insulating mounting feet for height adjustment, building protection, and tile stop for even tile installation. Two pre-assembled polypropylene drain housings with removable odour trap and cleaning trap. Drain connection DN50 lateral. Drain performance measured according to DIN 1253: 0.82 l/s.
Shower channels
EUR746,39
Dallmer shower channel CeraLine Nano F 1400mm, 524720, DN 50 overall height 68mm
1640 mm
