Best JUNG products in the Sockets category
On this page you'll find a ranking of the best JUNG products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

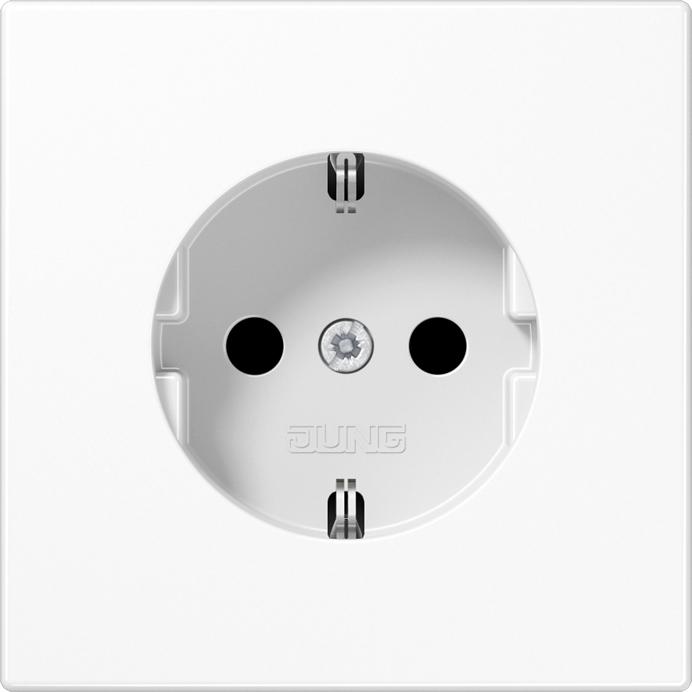

1. JUNG SCHUKO socket outlet alpine white LS 1520 N WW
Jung Schuko Socket LS 1520 N WW
Manufacturer: Jung
Description: Schuko socket alpine white
Type: LS 1520 N WW
Design: Schuko
Protective contact: yes
Round protective earth contact: no
Number of active contacts (round): 2
With indicator light: no
With built-in USB power supply: no
Number of units: 1
Number of phases: 1
Print/Labeling: none
Connection type: terminal block
With flap cover: no
With increased touch protection: no
Text field/Labeling area: no
Color: alpine white
RAL number (similar): 9016
Metallic color: no
Transparent: no
Lockable: no
Eject mechanism: no
Insulated installation: no
With functional lighting: no
With orientation light: no
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: none
Special power supply: Installation type: flush-mounted
Mounting type: screw mounting
Material: plastic
Material quality: thermosetting plastic
Halogen-free: yes
Surface protection: other
Surface finish: glossy
Antibacterial treatment: no
With on/off switch: no
With passthrough function: yes
Twisted central element: no
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm
Device depth: 0 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
Cover: central plate
For "harsh conditions" (according to VDE): no
Jung Schuko Socket LS 1520 N WW: additional details
Protective contact socket, alpine white with spring terminals for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620 (screw fastening, without mounting claws). The load ring is integrated into the protective measure via a grounding rail. Material: thermosetting plastic. Dimensions (W x H): 70 x 70 mm.

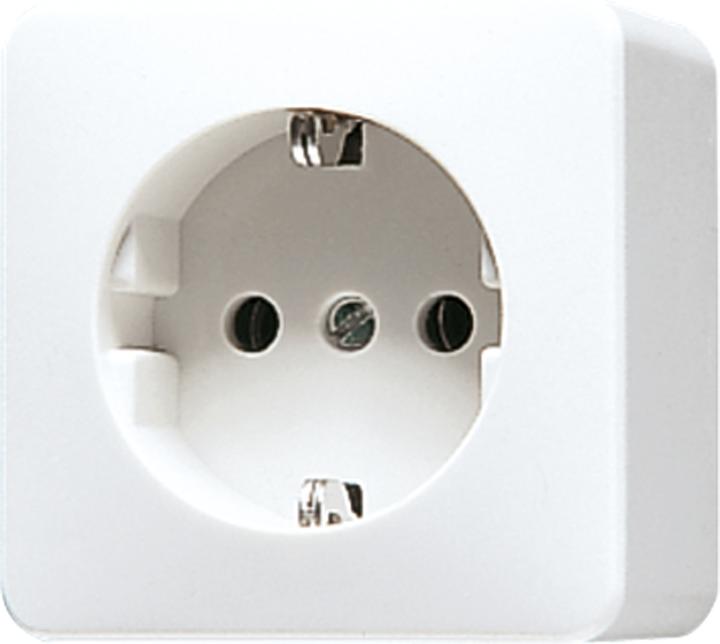

2. JUNG Schuko-Steckdose
The Jung Schuko socket outlet is a reliable and functional built-in socket outlet designed for indoor use. With a rated voltage of 250 V and a rated current of 16 A, it provides a safe power supply for various electrical devices. The socket outlet is made of high-quality thermosetting plastic, which makes it robust and durable. It is surface-mounted, which makes it easy to install. The IP20 protection rating ensures that the socket outlet is suitable for use in dry indoor areas. With a compact design of 61 x 61 x 47 mm, the socket outlet blends harmoniously into any environment and is ideal for use in living and working areas. The spring terminals enable a simple and secure connection for rigid conductors up to 2.5 mm², which further simplifies installation. This socket outlet is a practical solution for anyone who needs a reliable and safe power supply. Made from halogen-free duroplast for increased safety. Easy to install thanks to surface-mounted installation. Spring terminals for rigid conductors up to 2.5 mm². Suitable for indoor use with protection class IP20. Compatible with connection terminals in accordance with DIN VDE 0620.
3. JUNG Multimedia connection system MAA1112WW white
The MAA1112WW multimedia connection system from JUNG is a high-quality HDMI socket designed for flush mounting. It offers an elegant solution for integrating multimedia connections in living and working spaces. With a modern design in Alpine white, the socket seamlessly blends into various interior styles. The system supports HDMI technology version 1.3 and enables an impressive video resolution of up to 1080p. The gold-plated contacts ensure reliable signal transmission and a long product lifespan. Installation is done via screw fastening, ensuring a secure setup. The MAA1112WW is ideal for use in combination with various switch programs from the AS 500, A 500, A creation, and A plus series.
- Supports HDMI technology version 1.3 with Deep Color
- Video resolution up to 1080p (1920 x 1080 pixels)
- Gold-plated contacts for optimal signal transmission
- Suitable for flush mounting with screw fastening
- Compatible with switch programs from the AS 500, A 500, A creation, and A plus series.

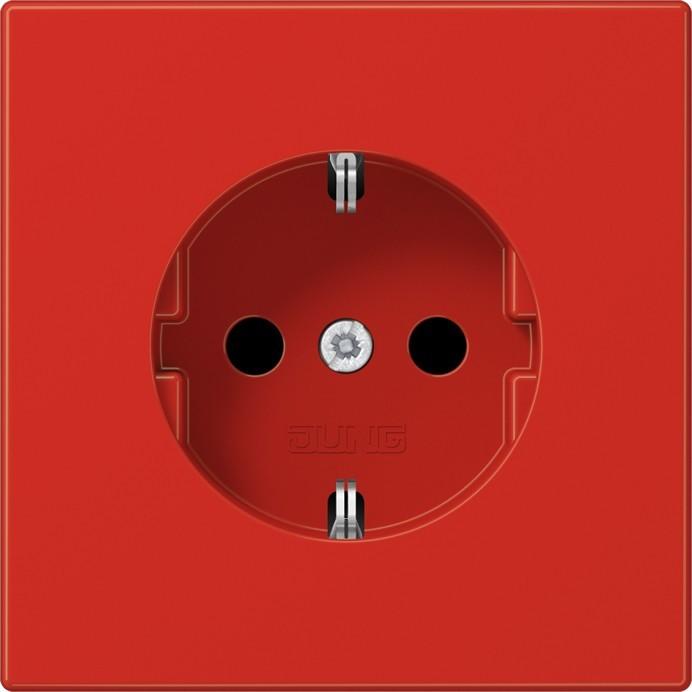

4. JUNG Socket outlet 1f rt glz LS UP w.BS ZP LS1520BFKIRT
The JUNG built-in socket is a high-quality protective contact® socket designed for indoor use. It features an integrated increased touch protection (Safety Plus) that ensures additional safety. This socket is equipped with spring terminals that allow for easy and secure connections for rigid and untreated flexible conductors up to 2.5 mm². The connection terminals comply with the strict requirements of DIN VDE 0620, enhancing the reliability and safety of the installation. The socket is made of robust thermoplastic and has compact dimensions of 70 x 70 mm, making it ideal for flush mounting. The red color (RAL 3003) not only provides a striking appearance but also allows for easy identification in various installations. This socket is a practical solution for anyone who values safety and functionality.
- Integrated increased touch protection (Safety Plus)
- Spring terminals for rigid and untreated flexible conductors up to 2.5 mm²
- Connection terminals according to DIN VDE 0620
- Robust housing made of thermoplastic.

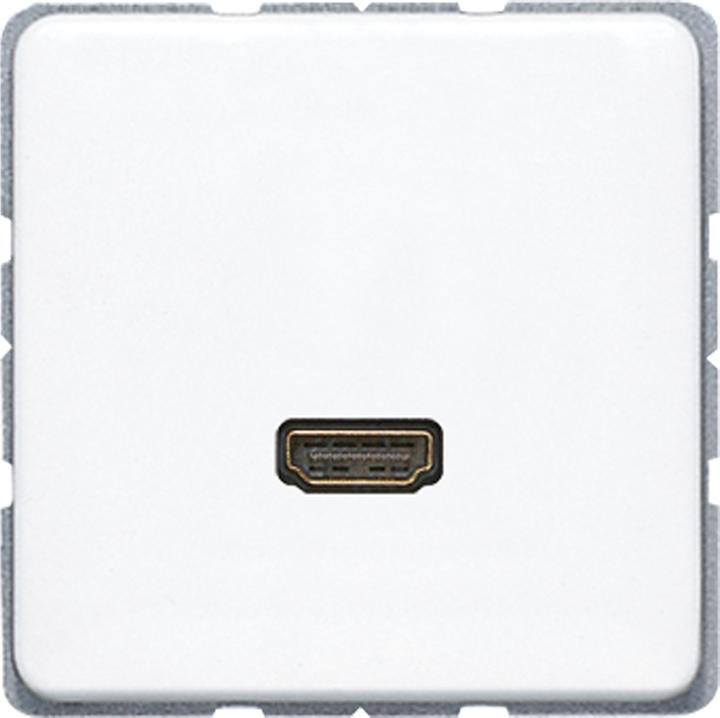

5. JUNG Multimedia socket HDMI alpine white MA CD 1112 WW
Jung MACD1112WW Insert HDMI alpine white.
6. JUNG Socket outlet 1f aws glz LS UP IP20 ZP LS1521WW
The JUNG built-in socket LS1521WW is a high-quality Schuko socket designed for indoor use. It provides a reliable connection for rigid and flexible conductors up to a cross-section of 2.5 mm². The socket is made from robust duroplastic, characterized by its durability and resilience. With an IP20 protection rating, it is ideal for dry environments. The installation is done flush-mounted, allowing for a clean and unobtrusive setup. The socket is finished in a classic white that harmoniously blends into various living and working environments. The connection terminals comply with DIN VDE 0620 standards, ensuring additional safety and reliability. This socket is not suitable for smart home applications and does not require any special configuration or a smart home hub.
- Screw terminals for rigid and flexible conductors up to 2.5 mm²
- Grounding rail for additional safety
- Made from durable duroplastic
- Installation type: flush-mounted for a discreet setup
- Complies with DIN VDE 0620 standards.

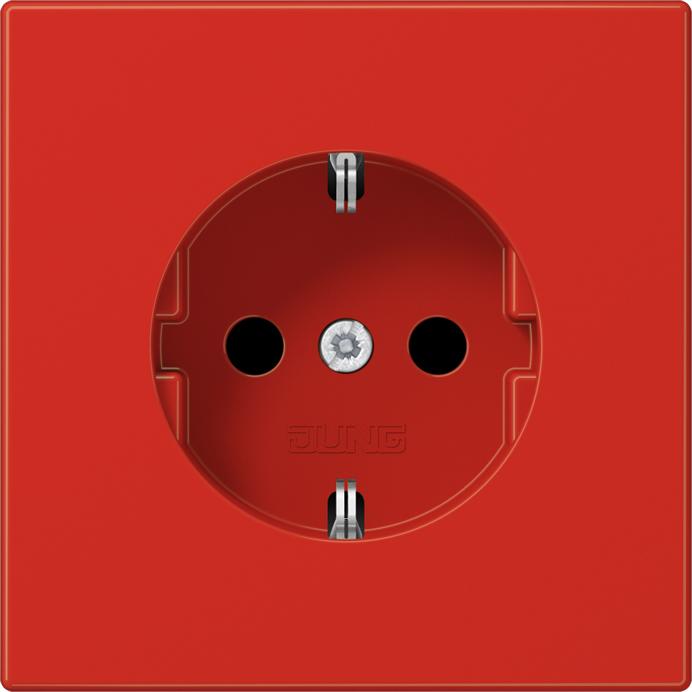

7. JUNG Socket outlet 1f rt glz LS UP ZP LS1520BFRT
The JUNG Socket 1f rt glz LS UP ZP LS1520BFRT is a high-quality built-in socket designed for indoor use. It provides a reliable connection for electrical devices and is equipped with a protective contact that meets safety standards. The socket is made from robust thermoplastic, making it durable and resilient. With a rated voltage of 250 volts and a rated current of 16 amperes, it is suitable for most household applications. The installation is done flush-mounted, allowing for a clean and aesthetic setup. The socket is available in a striking red color, fitting well into modern living spaces. It features spring clamps that enable easy and secure connections for rigid and untreated flexible conductors up to 2.5 mm². The grounding rail provides additional safety and protection.
- Spring clamps for easy and secure connection
- Grounding rail for additional safety
- Robust thermoplastic material
- Suitable for rigid and untreated flexible conductors up to 2.5 mm².

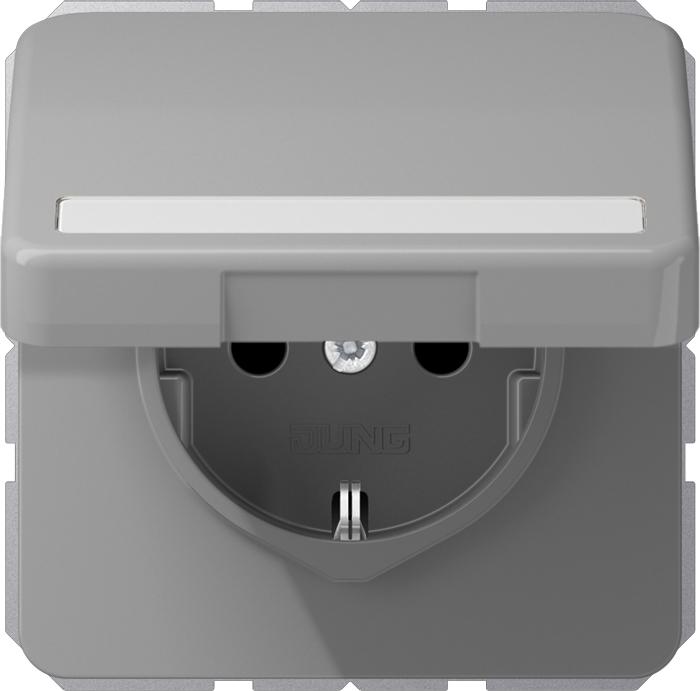

8. JUNG Socket outlet 1f gr glz CD UP flap d IP20 CD1520BFNAKLGR
Jung SCHUKO socket outlet 16A 250V CD 1520 BFNAKL GR Manufacturer :Jung Designation :SCHUKO socket outlet 16A 250V Hinged cover Type :CD 1520 BFNAKL GR Design :SCHUKO Earth contact :yes Earth contact round :no Number of active contacts (round) :2 With signal lamp :no With built-in USB power supply :no Number of units :1 Number of phases :1 Imprint/labelling :without Connection type :Plug-in terminal With hinged cover :yes With increased touch protection :yes Text field/labelling area :yes Colour :grey RAL number (similar) :7038 Metallic colour :no Transparent :no Lockable :no Ejector mechanism :no Insulated installation :no With functional lighting :no With orientation light :no Overvoltage protection :no Residual current protection :no With microfuse :no Special power supply :without special power supply Mounting type :Flush-mounted Mounting type :Claw/screw mounting Material :Plastic Material grade :Thermoplastic Halogen-free :yes Surface protection :other Finish :glossy Antibacterial treatment :no With on/off switch :no With loop-through function :no Twisted central insert :no Rated current :16 A Rated voltage :250 V Suitable for protection class (IP) :IP44 Unit width :67 mm Device height :67 mm Device depth :0 mm Compatible with Apple HomeKit :no Compatible with Google Assistant :no Compatible with Amazon Alexa :no IFTTT support available :no Cover :Central plate For "difficult conditions" (according to VDE) :no Jung SCHUKO socket outlet 16A 250V CD 1520 BFNAKL GR: further details protective contact® socket outlet, grey with hinged cover (with return spring) with labelling field 9 x 58 mm with integrated increased touch protection (Safety Plus) with spring terminals forr rigid and untreated flexible conductors up to 2.5 mm2 Connection terminals to DIN VDE 0620 Support ring, claws and claw screws are integrated into the protective measure via an earthing bar. Material: thermoplastic Dimensions (W x H): 67 x 67 mm , EAN: 4011377076242.

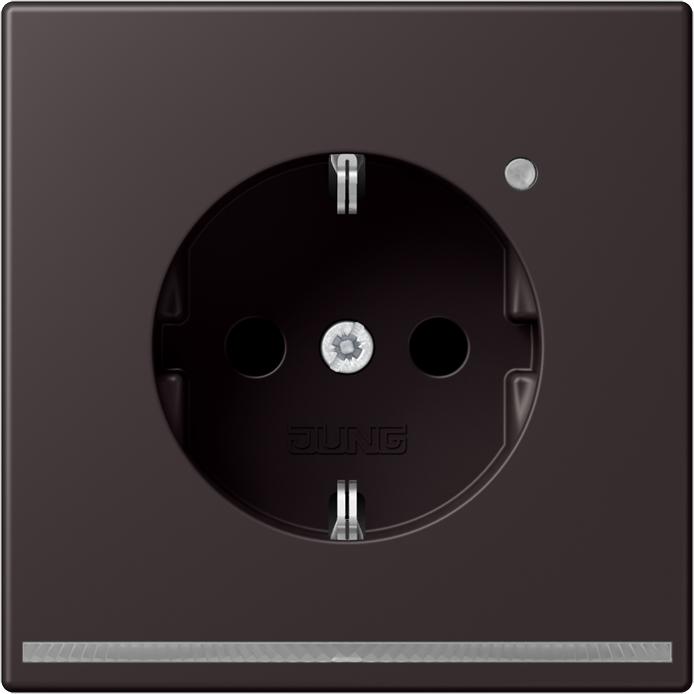

9. JUNG SCHUKO socket outlet 16A 250V AL 1520-O D LNW
The SCHUKO socket 16A 250V AL 1520-O D LNW from JUNG is a high-quality built-in socket designed for indoor use. It provides a reliable power supply with a rated current of 16 amperes and a rated voltage of 250 volts. This socket is equipped with an LED orientation light that is controlled by an integrated brightness sensor to ensure optimal visibility. The increased touch protection offers additional safety, while the spring terminals allow for easy and secure connections for rigid conductors up to 2.5 mm². Installation is done in a deep box, and the connection terminals comply with DIN VDE 0620 standards. The socket is made of robust plastic and features an elegant aluminum surface that seamlessly fits into modern living spaces.
- Integrated LED orientation light with brightness sensor
- Increased touch protection (Safety Plus)
- Spring terminals for rigid conductors up to 2.5 mm²
- Grounding rail for additional safety
- Low power consumption in standby and operating mode.

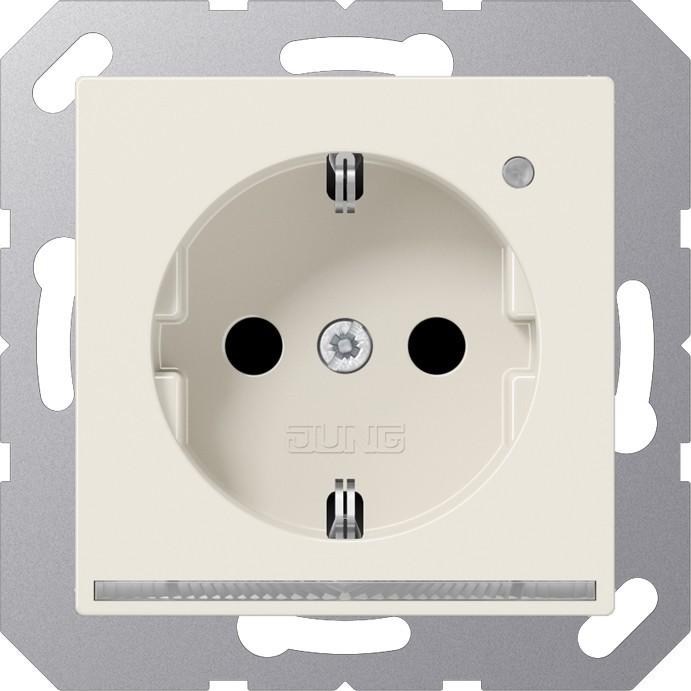

10. JUNG SCHUKO socket outlet 16A 250V A 1520-O LNW
The SCHUKO socket 16A 250V A 1520-O LNW from JUNG is a high-quality built-in socket designed for indoor use. It provides a reliable power supply with a rated current of 16 amperes and a rated voltage of 250 volts. This socket is equipped with an LED orientation light that features an integrated brightness sensor to enhance visibility in dark environments. The increased touch protection (Safety Plus) ensures additional safety, while the spring terminals allow for easy and secure connections for rigid conductors up to 2.5 mm². The installation is done flush-mounted, with a deep box recommended to facilitate the installation. The socket is made of high-quality plastic and meets the requirements of DIN VDE 0620.
- LED orientation light with brightness sensor
- Increased touch protection (Safety Plus)
- Spring terminals for rigid conductors up to 2.5 mm²
- Grounding rail for additional safety
- Low power consumption in standby and operation (0.3 / 0.5 W).
