Sockets
−27%
only 1 of 12 remaining on sale
EUR9,68 was EUR13,30
Metz Connect IT CONNECT E-DAT module 8(8) AP
Best selling Sockets from Metz Connect
On this page you’ll find a ranking of the best Sockets from Metz Connect. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Metz Connect IT CONNECT E-DAT module 8(8) AP
Modular connection box for building a passive network infrastructure with the highest quality standards. The connection box is suitable for connecting phones as well as 10 Gbit networks and power supply with PoE of up to 90 W. The very robust, nickel-plated zinc die-cast module, consisting of only two parts, can be easily and quickly connected by the installer without special tools, ensuring error-free installation. In addition to continuous quality control during manufacturing, independent testing laboratories confirm the excellent quality of the individual modules with various certificates. The connection boxes are delivered in retail-friendly, separable cardboard packaging containing 10 pieces each. Variants, mounting type: AP, UP, UPk, UP0; variants, number of ports: 1, 2, 3.
2. Metz Connect Flush-mounted junction box
Modular connection box for building a passive network infrastructure with the highest quality standards. The connection box is suitable for connecting phones as well as 10 Gbit networks and power supply with PoE of up to 90 W. The very robust, nickel-plated zinc die-cast module, consisting of only two parts, can be easily and quickly connected by the installer without special tools, ensuring error-free installation. In addition to continuous quality control during manufacturing, independent testing laboratories confirm the very good quality of the individual modules with various certificates. The connection boxes are delivered in retail-friendly, separable cardboard packaging, with 10 pieces each. Variants, mounting type: surface-mounted (AP), flush-mounted (UP), flush-mounted with cover (UPk), flush-mounted without cover (UP0); variants, number of ports: 1, 2, 3.
3. Metz Connect E-DAT modul 8/8(8) AP - wall outlet - RJ-45 X 2
Connection box equipped with two individual 8-pole E-DAT modules. Easy installation of 2- to 4-pair data cables AWG 22/24 to BTR IDC cutting terminals. Wiring according to ISO/IEC 11801/EN 50173-1 standards. Strain relief with cable tie on the module. Contact spring for cable shield is non-removable. With a viewing window for labeling insert (labeling inserts included). Cat.6/Class E Link Performance according to ISO/IEC 11801:9/2002 and EN 50173-1:2002. Fully shielded modules. EMC compliant according to EN 55022-B, EN 50082-1. Integrated dust protection flaps.
For the setup of a structured cabling system, we recommend using the following components: KERPEN Special Megaline 723 4P installation cable and BTR E-DAT module 8(8). This product combination has been tested and certified for Class E in the Permanent Link by GHMT AG, an accredited testing laboratory.
4. Metz Connect network socket flush-mounted insert with central plate CAT 6a 1 port pure white
Metz Connect Connection Box C6A Upk 130C371102-I
Manufacturer: Metz Connect
Designation: Connection Box C6A Upk 1xRJ45, Upk, white
Type: 130C371102-I
Surface Mounting: no
Flush Mounting: yes
Channel Installation: yes
Floor Box/Underfloor Mounting: no
Mounting Method: screws
Composition: Base element with central cover plate
Connector Type: RJ45 8(8)
With Sockets/Couplings: yes
Suitable for Number of Sockets/Couplings: 2
Category: 6A (IEC)
Color: pure white
RAL Number: 9010
Connection Type: LSA
Shielded Sockets: yes
Shielded Housing: yes
Separate Grounding Connection: no
With Text Field: yes
Design Capable: yes
Separate Cable Strain Relief: yes
Mounting Type Shield Connection: Screw
Outlet Direction: angled
With Dust Protection: yes
Mechanical Coding: no
Color Coding: no
Device Width: 69.9 mm
Device Height: 69.9 mm
Device Depth: 39.5 mm
Metz Connect Connection Box C6A Upk 130C371102-I: additional details
Compact connection box for building a passive network infrastructure with the highest quality standards. The connection box is suitable for connecting telephones as well as 10 Gbit networks and power supply with PoE up to 90W. The very robust zinc die-cast connection box can be easily and quickly connected by the installer using an LSA installation tool without errors. In addition to permanent manufacturing quality control, independent testing laboratories confirm the very good quality with various certificates. The connection boxes are delivered in retail-friendly, separable cardboard packaging with 10 pieces each. Variants, Mounting Type: AP, UP, UPk, UP0, Variants, Number of Ports: 1, 2, EAN: 4250184116189.
Sockets
Quantity discount
EUR13,59 per piece for 2 units
Metz Connect network socket flush-mounted insert with central plate CAT 6a 1 port pure white

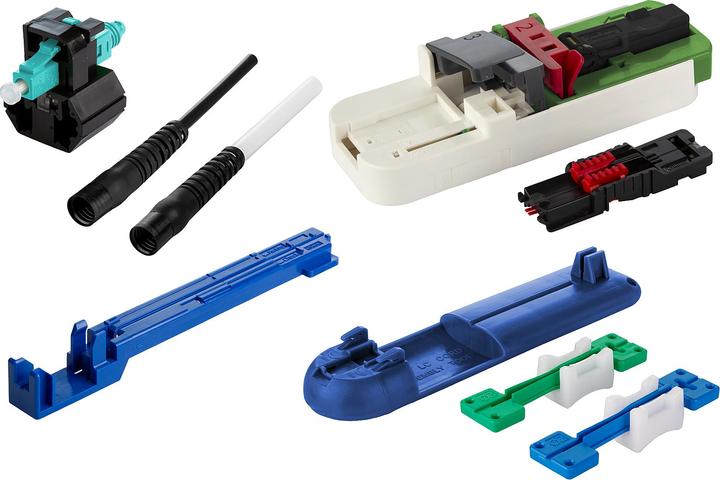

5. Metz Connect OpDAT FASTTM Hybrid
Field-configurable fiber optic connector for multimode technology with hybrid technology: Refractive index gel plus opto-elast guarantee very good and consistent optical values. No polishing or gluing required during on-site assembly. Simple, easy-to-learn, quick, and cost-effective installation in less than two minutes. Available with LC and SC connector types. Connector kits for fiber optic fibers with a diameter of 0.25 mm and 0.9 mm, connector kits for fiber optic cables with a diameter of 2.0 mm and 3.0 mm. The connector can be assembled up to three times. Each connector has a serial number for traceability at any time. Depending on the variant, included in the delivery: a maintenance-free cleaver designed for an angled cut. The cleaver can be used up to 200 times. A cable assembly kit for easy cable installation, a fiber guide for easy insertion of the fiber into the connector. Applications: for FTTH and FITH connections, field repairs, in hard-to-reach or spatially restricted areas, and for direct mounting on components. Variants for fibers: 10 pieces without tools / 20 or 100 pieces with cleaver and fiber guide. Variants for cables: 10 pieces without tools / 20 or 100 pieces with cleaver, cable assembly kit, and fiber guide.
6. Metz Connect 130B12D21002-E socket outlet white
The METZ CONNECT 130B12D21002-E socket in white is a high-quality connection box designed for reliable and secure connections in various applications. It features an appealing, simple design in pure white (RAL 9010), seamlessly blending into different environments. This socket is ideal for use in residential and commercial spaces, ensuring easy installation and user-friendly handling. The robust construction and the use of high-quality materials guarantee durability and reliability in everyday use. The socket is suitable for use with C6A modules, providing a flexible solution for modern networking and communication needs.
- Suitable for C6A modules for flexible use in network applications
- Robust construction for durability and reliability
- Easy installation and user-friendly handling.

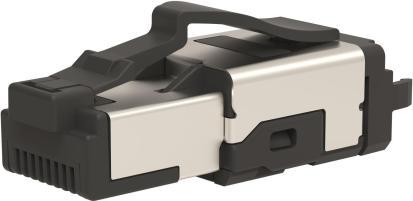

7. Metz Connect RJ45-Stecker feldkonfektionierbar

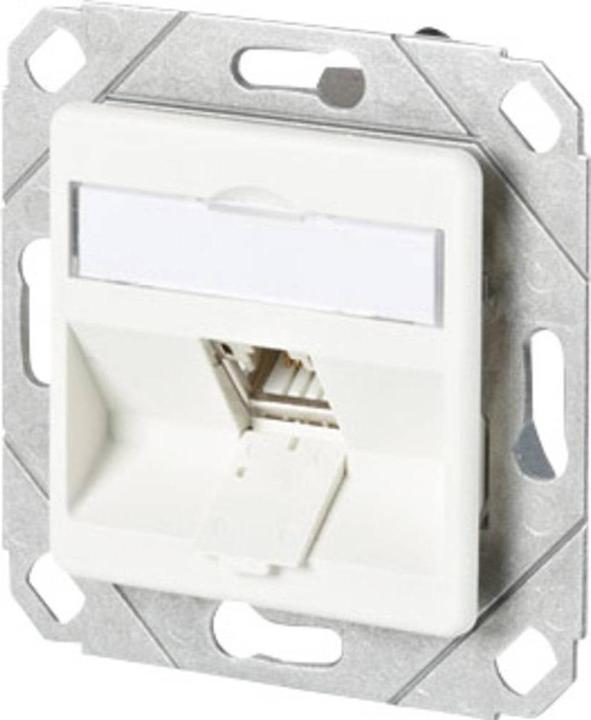

8. Metz Connect BTR C6A Module 1 Port 180° UPk
Modular connection box for building a passive network infrastructure with the highest quality standards. The connection box is suitable for connecting phones as well as 10 Gbit networks and power supply with PoE of up to 90 W. The very robust, nickel-plated zinc die-cast module, consisting of only two parts, can be easily and quickly connected by the installer without special tools. In addition to continuous quality control during manufacturing, independent testing laboratories confirm the very good quality of the individual modules with various certificates. The connection boxes are delivered in retail-friendly, separable cardboard packaging containing 10 pieces each. Variants, mounting type: surface-mounted, flush-mounted, surface-mounted compact, surface-mounted zero; variants, number of ports: 1, 2, 3.
9. Metz Connect 1309300301-E - RJ-45 - 6a - White - 1 piece(s)
The Metz Connect 1309300301-E E-DAT Subway socket is a high-quality connection unit specifically designed for installation in floor areas. It is compatible with device inserts from OBO Bettermann (Ackermann) and certain types from Hager (Electraplan Solutions). This RJ-45 socket supports Cat.6A component testing and meets the requirements of ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D, and IEC 60603-7-51. With GHMT certification, it ensures reliable performance and is suitable for applications up to 10 GBit Ethernet. Installation is straightforward with snap fastening, and the integrated dust protection flaps provide additional protection. The socket is designed for indoor use and offers user-friendly labeling of the wire configuration. This connection unit is an ideal solution for modern network installations, providing high flexibility and ease of use.
- Compatible with floor-mounted device inserts from OBO Bettermann and Hager
- GHMT certified for reliable performance
- Supports Remote Powering (PoE, PoE plus, UPoE, and 4PPoE)
- Easy installation with snap fastening and integrated dust protection flaps
- Wire configuration labeling according to T568A and T568B.
10. Metz Connect IP44 Modul-AP enclosure
With two keys and a keyed alike lock (same locks and keys). The housing cover is sealable, protection class IP44, protected against splashing water from all directions and the ingress of solid objects larger than 1 mm. IP protection classes tested without outgoing components. The protection class may vary depending on the connection of components. Module installation cutout: Keystone, accommodating two individual modules of your choice (RJ45, fiber optic LC, fiber optic ST, coax) available as accessories. The hinged cover closes completely, even when patch cables are plugged in, and can be locked in the open position. Housing made of UV weather-resistant and impact-resistant thermoplastic plastic PC/ASA, with a clearly visible labeling field. Cable entry for one or two cables is rotatable by 90 degrees. Color: gray (RAL 7035), cable glands available as accessories. Delivery does not include modules and screws for surface mounting.
