Best Ersa products in the Soldering irons category
On this page you'll find a ranking of the best Ersa products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Ersa Soldering iron 150 W i-Tool
This new heating technology allows for rapid heating and reheating of the soldering iron from room temperature to 350 °C in about 9 seconds, and from standby (280 °C) in about 3 seconds. The heating element and soldering tip are separated. There is an extremely short distance from the handle to the tip, and a thin, lightweight cable for maximum comfort.

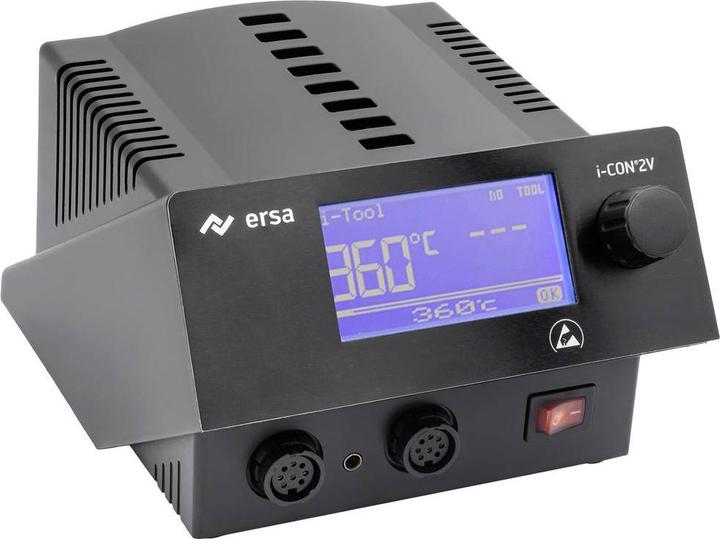

2. Ersa i-CON 2V MK2 soldering station, 0IC2205V
Innovative solution for intelligent hand soldering. ERSA has developed the i-CON 2(V) MK2 soldering station to meet the demands of higher working temperatures and the increasingly smaller process windows of lead-free soldering processes. The electronics station features a second connection for an additional i-tool or alternatively for tools for desoldering SMD components or through-hole components. The i-CON series is, of course, antistatic. A firmware update can be performed via the micro-SD card slot.
Innovative technology - highlights at a glance:
- User-friendly one-touch operation of the software with online help and easy menu navigation via i-Op menu selection. Large multifunction display.
- Three power levels are available, regulating the heating element according to the required heat demand. At the highest setting, the system delivers maximum power of 150 W. At the low power level, the output is strictly controlled, preventing any temperature overshoot.
- Process window and alarm visually and audibly inform the operator if the temperature leaves the preselected temperature process window.
- With the i-Set Tool Vario option, additional i-CON soldering stations can be automatically configured and locked. Station settings can be easily and quickly downloaded from one i-CON to the i-Set Tool and transferred to another station within 5 seconds.
i-Tool: The i-Tool is an extremely lightweight, powerful fine soldering iron with a wide selection of affordable long-lasting soldering tips. 150 W of power ensure the fastest heat-up and reheat behavior. Process window alarm, energy power levels, and automatic standby sensor provide the i-CON user with unprecedented process control. The calibration data of the i-Tool is stored on the circuit board in the handle of the soldering iron.
3. Ersa i-TOOL TRACE soldering iron 24V 150W
ERSA Replacement Soldering Iron Tool Trace 150 Watt for i-Con TRACE Soldering Station. The extremely lightweight and powerful fine soldering iron i-TOOL TRACE features 150 W of power and SENSOTRONIC temperature control. This ensures very fast heating and even quicker reheating, providing a stable temperature profile. The thermally optimized tip design and a variety of different tip geometries deliver heat precisely to the solder joint, covering a wide range of applications. The Tip-and-Turn Release allows for quick and easy tip changes, even when hot, either by hand or with the help of the stand 0A58. The heating element and tips can be replaced separately, so each part only needs to be replaced when absolutely necessary, conserving resources. The automatic standby function ensures economical and energy-efficient soldering. The adjustable standby parameters (time, temperature) provide optimal usability of the soldering iron without unnecessary waiting times.

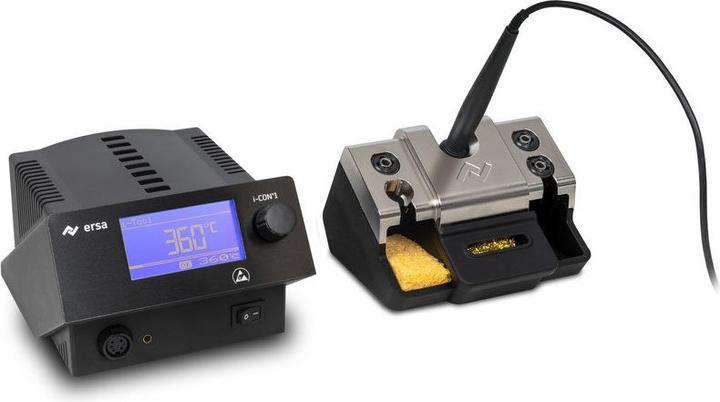

4. Ersa Lötstation i-CON 1 MK2-Bundle, mit Lötkolben i-TOOL
The i-CON 1 MK2-Bundle soldering station with the i-TOOL soldering iron is a highly advanced solution for all soldering tasks in electronics manufacturing, rework, and development. It features digital control and an ergonomic design that allows for comfortable handling. The station is suitable for a wide range of applications, from tiny SMD chips to high-pin components and THT technology. With the high-end TIP'N'TURN stand, a contactless tip change is enabled, increasing efficiency and user-friendliness. The i-CON 1 MK2-Bundle is designed to meet the needs of professionals and offers flexible use through connectable tools. The intuitive one-touch operation and large multifunction display simplify handling and allow for precise control of soldering processes.
- Ergonomic, powerful i-TOOL soldering iron with intelligent power management
- Software updates via micro-SD card for continuous improvement
- Easy handling through intuitive one-touch operation and large multifunction display
- Compatible with eight different soldering tools and VARIO series
- ESD-safe design for secure use in sensitive environments
- Available with interfaces for fume extraction, heating plate, and PC.
5. Ersa Desoldering station 200W 150 - 450°C
ERSA i-CON VARIO 2 MK2 with i-TOOL AIR S
The i-CON VARIO 2 MK2 multi-channel soldering and desoldering station provides professional soldering users with two soldering tools that can be used simultaneously. Alongside the new, ergonomic hot air tool i-TOOL AIR S (200 W), the 150 W i-TOOL MK2 can operate another soldering tool for traditional soldering or the new CHIP TOOL VARIO desoldering tweezers (80 W). Other Ersa soldering tools can also be used as alternatives. The compact, ESD-safe power unit offers the familiar simple and clear operation typical of the i-CON-MK2 family. Interfaces for Ersa fume extraction systems and preheating plates are as standard as the easy and secure configuration of the station via a microSD memory card, just like with the larger i-CON VARIO 4 MK2. The new Tip’n’Turn technology allows for quicker and safer tip changes through the use of a new bayonet mount. In addition to improved ergonomics, the 142 tip series offers enhanced heat transfer and high performance at an optimal price-performance ratio.

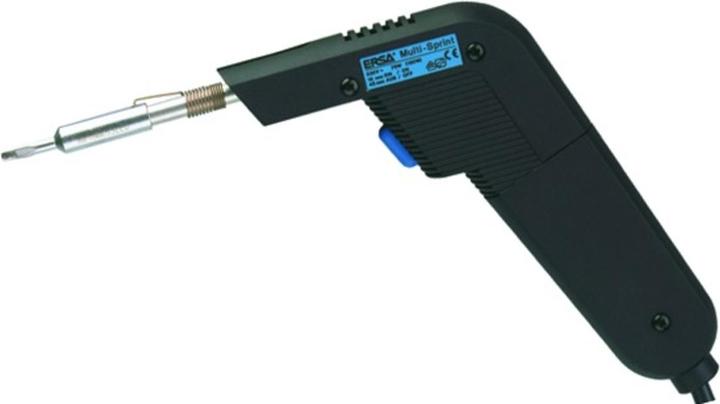

6. Ersa MULTI-SPRINT 960 quick soldering gun
Version: Unusually lightweight and transformerless soldering gun with PTC heating element. Heating time is approximately 20 seconds. By periodically pressing, the heat supply can be adjusted to the heat demand of the solder joint. Internally heated soldering tip with high efficiency. Power cord length is 1.5 m.
7. Ersa Soldering station
The Ersa IoT soldering station i-CON TRACE is primarily designed for use in a digitally connected environment. Essential settings are made via input devices that are already integrated into the company network, such as PCs, tablets, or smartphones, or through a MES. This allows the user simultaneous access to all soldering stations in the network, making operation extremely convenient. Additionally, this ensures detailed process control in manual soldering. As Ersa's first IoT soldering station, the i-CON TRACE is revolutionizing the market for industrial soldering stations. The i-CON TRACE is the first soldering station that enables seamless process control in manual soldering right out of the box. Minimum requirements for the app/software: iOS 10.0, Android 8.0, Windows 10, Windows Server 2016.
8. Ersa i-TOOL NANO MK2 soldering iron, 0125CDK
Soldering iron i-TOOL NANO MK2 with 80 W micro high-performance heating element: The new Tip'n'Turn technology allows for faster and safer tip changes through the use of a new bayonet mount. In addition to improved ergonomics, the 142-tip series offers enhanced heat transfer and high performance at an optimal price-performance ratio. This new heating technology enables the i-TOOL NANO MK2 soldering iron to heat up from room temperature to 350 °C in about 9 seconds, and from standby (280 °C) in about 3 seconds. The heating element and the soldering tip are separate. The soldering iron comes packaged, equipped with a chisel-shaped ERSADUR-LF long-lasting soldering tip.
9. Ersa Soldering iron 230 V 75 W PTC70 Mei
Powerful, rugged, temperature controlled soldering iron. The proven ERSA RESTISTRONIC temperature control in combination with the ceramic PTC heating element ensures fast heating and reheating. With the ERSA PTC70, both the finest soldering work and applications with medium heat requirements can be carried out professionally. The large selection of ERSADUR 832 and 842 series permanent soldering tips is available for the various applications.
10. Ersa Soldering station supply unit 150W 150 - 450°C
The i-CON 2V MK2 electronics station from ERSA has developed the i-CON 2 MK2, an electronics station that meets the demands for higher working temperatures and increasingly smaller process windows of lead-free soldering processes. The electronics station features two connections and recognizes six tools, including the extremely small, lightweight, ergonomic, and powerful soldering iron i-TOOL MK2, as well as tools for desoldering SMD components or through-hole components. The i-CON-MK2 series is antistatic.
Innovative technology – highlights at a glance:
- User-friendly "One-Touch" operation of the software with online help and easy menu navigation via i-Op menu selection.
- Large multifunction display.
- Standby function.
- Three energy power levels that regulate the heating element based on the required heat demand. In the highest setting, the system delivers maximum power, while in the low setting, the power is strictly regulated with no overshoot allowed.
- Process window and alarm visually and audibly inform the operator if the temperature exceeds the selected temperature process window.
- With the i-Set TOOL option, additional i-CON 2 MK2 soldering stations can be automatically configured and locked. Station settings can be easily and quickly downloaded from one i-CON 2 MK2 to the i-Set TOOL using a USB stick and uploaded to another station within five seconds.
The power cable is not included.
