Best Schneider products in the Surge protection category
On this page you'll find a ranking of the best Schneider products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

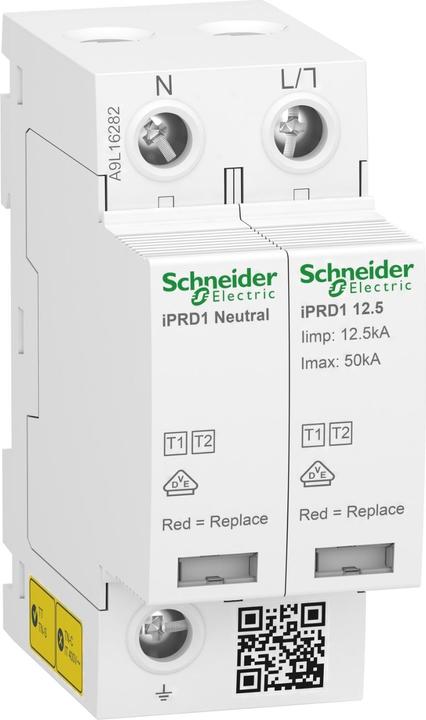

1. Schneider A9L16282
The Acti9 iPRD1 12.5r Type 1+2 surge arrester from Schneider provides comprehensive surge protection for electrical systems. With a rated voltage of 230V AC and a maximum discharge current of 50kA, this device is suitable for various applications. It features pluggable and replaceable protection modules that allow for easy maintenance and customization. The surge arrester is equipped with a remote signaling contact for external fault reporting, as well as a red fault indicator that shows the device's status. It is mounted on a DIN rail, and the base is rotatable, allowing for flexible connections from above or below. With an operating temperature range of -25°C to +60°C, the surge arrester is suitable for various environments and complies with the standards IEC 61643-11: 2011 T1, T2 and EN 61643-11: 2012.
- Pluggable and replaceable protection modules for easy maintenance
- Remote signaling contact for external fault reporting
- Red fault indicator for status monitoring
- Rotatable base for flexible connections
- Complies with international surge protection standards.

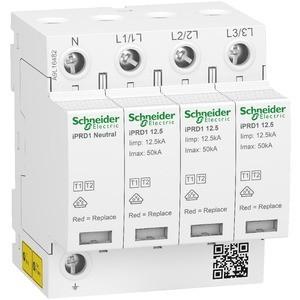

2. Schneider A9L16482
Schneider Electric Combination arrestor A9L16482 Manufacturer :Schneider Electric Designation :Combination arrestor Type :A9L16482 Mains type DC :no Mains type IT :no Mains type TN :no Mains type TN-C :no Mains type TN-C-S :no Mains type TN-S :yes Mains type TT :yes Mains type other :no No. of poles :4 Maximum continuous voltage AC :350 V Nominal voltage AC :400 V Protection level :1.5 kV Protection level L-N :1.5 kV Protection level N-PE :1.5 kV Mounting type :Top-hat rail TH35 Size :8 TE Max. conductor cross-section, rigid, one-pole Max. conductor cross-section rigid (solid/multi-stranded) :35 mm² Max. conductor cross-section flexible (fine-stranded) :35 mm Max. conductor cross-section flexible (flexible) :25 mm² Remote signalling :yes Signalling on device :optical Test class :Type 1 and 2 Integrated back-up fuse :no Voltage-switching spark gap technology :no Protection class (IP) :IP20 Schneider Electric Combination arrestor A9L16482: further details Combination arrestor type 1+2, Acti9 iPRD1 12.5r. 3-pole+N, rated voltage (Un) 230/400V AC. max. leakage current Imax 50kA, rated leakage current In 20kA. pluggable and exchangeable protection modules. Remote signalling contact for external defect indication, red defect indication on the unit. Base can be rotated, so supply from below or above possible. Height 89.5 mm, height 74 mm, width 72 mm, weight 619 grams. Standards: IEC 61643-11: 2011 T1, T2 / EN 61643-11: 2012 Type 1 + Type 2. PU 1 piece, price unit 1 piece. Operating temperature -25°C to +60°C. , EAN: 3606481490223.
3. Schneider A9L16382
The Type 1+2 combined surge arrester from Schneider, model A9L16382, provides comprehensive surge protection for electrical systems. With a rated voltage of 230/400V AC and a maximum discharge current of 50kA, this device is designed for use in demanding environments. It features pluggable and replaceable protection modules that allow for easy maintenance and adjustment. A remote contact for external fault reporting, along with a red fault indicator on the device, ensures reliable monitoring of operational status. The rotatable base allows for flexible cable entry from above or below, facilitating installation. With an operating temperature range of -25°C to +60°C, the combined surge arrester is suitable for various climatic conditions and complies with the standards IEC 61643-11: 2011 T1, T2 and EN 61643-11: 2012.
- Pluggable and replaceable protection modules for easy maintenance
- Remote contact for external fault reporting
- Red fault indicator for monitoring operational status
- Rotatable base for flexible cable entry options
- Complies with international surge protection standards.

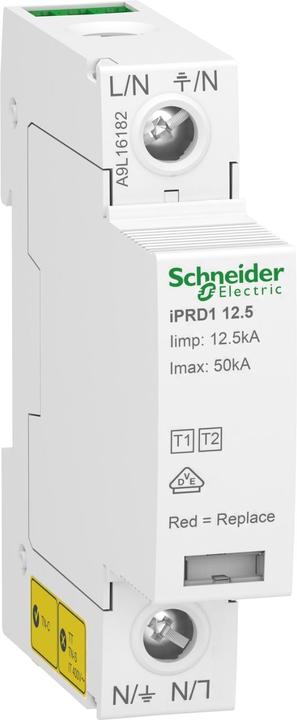

4. Schneider A9L16182
The Acti9 iPRD1 12.5r Type 1+2 surge arrester from Schneider provides comprehensive surge protection for electrical systems. With a rated voltage of 230V AC and a maximum discharge current of 50kA, this device ensures reliable protection against surges. The plug-in and replaceable protection modules allow for easy maintenance and adaptation to specific requirements. An integrated remote signaling contact enables external fault reporting, while a red fault indicator on the device provides immediate visual feedback on the operational status. The rotatable base allows for flexible feed-in from above or below, facilitating installation. With a compact design and an operating temperature range of -25°C to +60°C, this surge arrester is suitable for various applications.
- Maximum discharge current of 50kA for high protection
- Plug-in and replaceable protection modules for easy maintenance
- Remote signaling contact for external fault reporting
- Red fault indicator for immediate visual feedback
- Rotatable base for flexible feed-in options.
