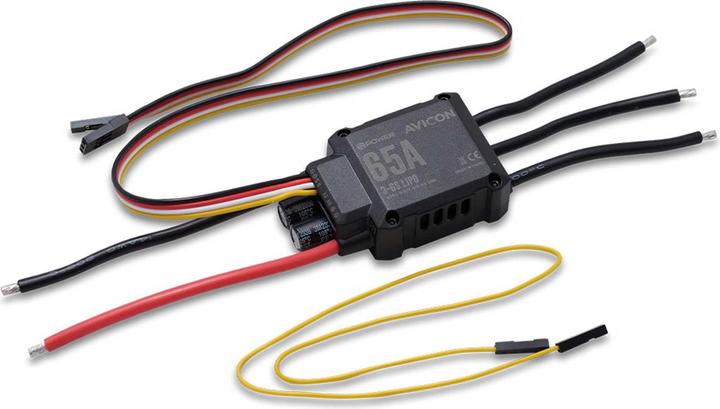

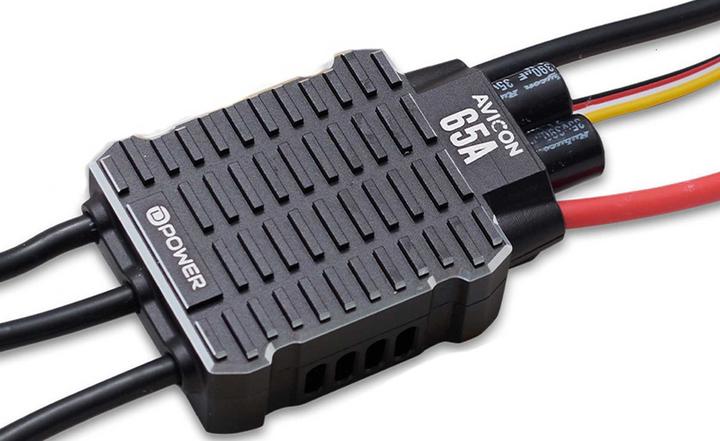

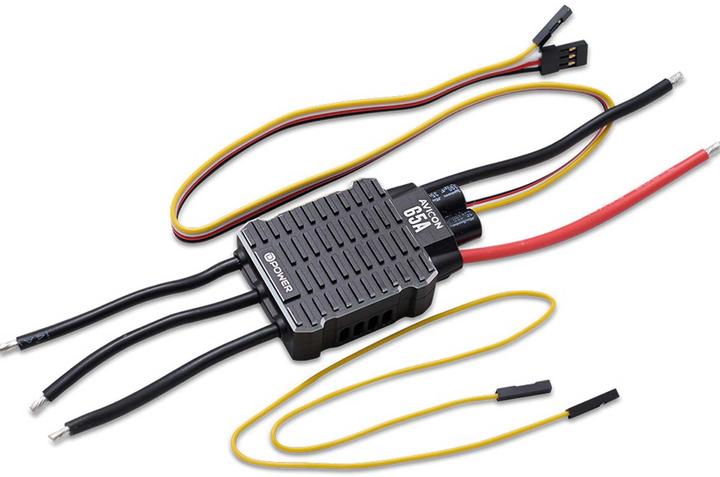

The AVICON PRO Brushless Controller Series from D-Power is equipped with a powerful 32-bit microprocessor that ensures strong computing power and ultra-fast processing rates, as well as a smooth motor operation for brushless motors with up to 40 poles.

Features such as telemetry can be set directly via Futaba transmitters. The AVICON PRO controller provides extensive telemetry data such as battery voltage, consumed capacity, current, RPM, and the temperature of the controller for Futaba transmitters.

The controllers have been specifically designed for fixed-wing aircraft and helicopters. Compact dimensions, relatively low weight, impressive start-up and throttle linearity, as well as extremely high reliability characterize this ESC series.

The AVICON PRO controllers are available in 65A, 125A, and 130A.

Features:

• High-performance brushless controller with 32-bit technology
• Next-generation MOSFETs with low thermal signature, high peak current threshold, and high reliability
• Telemetry for Futaba remote controls
• Adjustable control parameters in helicopter mode
• Adjustable parameters on the transmitter for Futaba
• Parameters adjustable via PROGCON programming card or transmitter
• Fixed-wing and helicopter mode
• Adjustable rotation direction, timing, battery type, freewheeling, start-up current, and other parameters
• Integrated electronic anti-spark circuit
• Extremely low internal resistance
• High efficiency and significant energy savings
• A self-test checks motor, throttle position, and voltage upon power-up
• Optimal cooling.
