Compact, low-cost entry-level solution. The LED incident light ring lamp is continuously adjustable, providing bright, shadow-free incident light. It mounts on the envelope turret and can be rotated as required.

Features:

• Robust microscope with stereo head (45° inclined view)
• Eyepiece tube with diopter adjustment and eyepiece cups
• Coaxial objective arrangement with 1x and 2x turn-up turrets
• Focus adjustment via coarse drive on both sides
• Sturdy metal tripod
• Flat base with black and white plastic plate for incident light

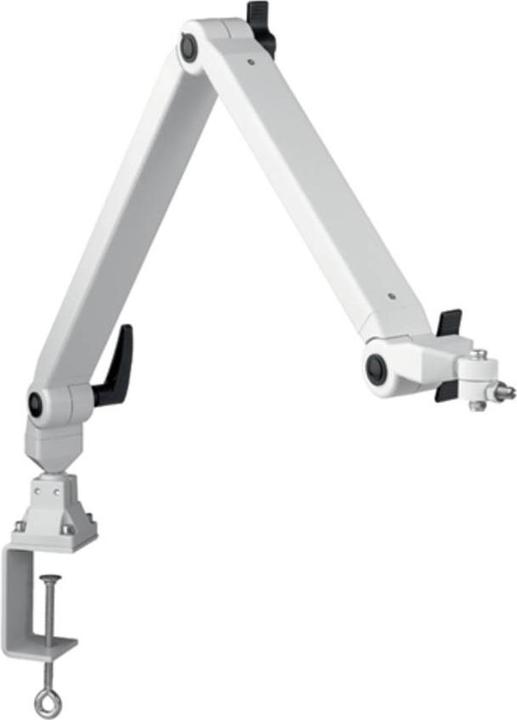

• Sturdy spring-loaded articulated arm
• Three locking screws in the joints, infinitely adjustable

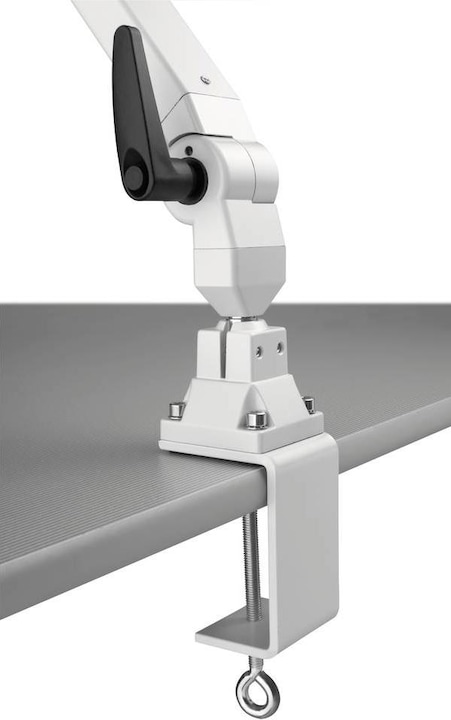

• With stable table clamp and screw-on table base

Scope of delivery:
1 microscope head complete with drive box
1 table stand
1 articulated arm
1 clamp holder
1 LED ring illumination
1 mains adapter
1 dust cover
2 eyepiece cups
1 hook wrench
1 instruction manual

Selection criteria:
Version: with spring-loaded arm

Technical data:
Dimension L x W x H: 600 x 400 x 300 mm
Voltage: 230 V
Magnification: 10x/20x, expandable up to 40x
Eyepieces: Wide field 10x
Column length: 245 mm
Column diameter: 20 mm
Rotatable: 360°
Interpupillary distance: adjustable from 54-74 mm
Working distance: max. 83 mm
Weight: 7.06 kg

Item number: ESC33263.
